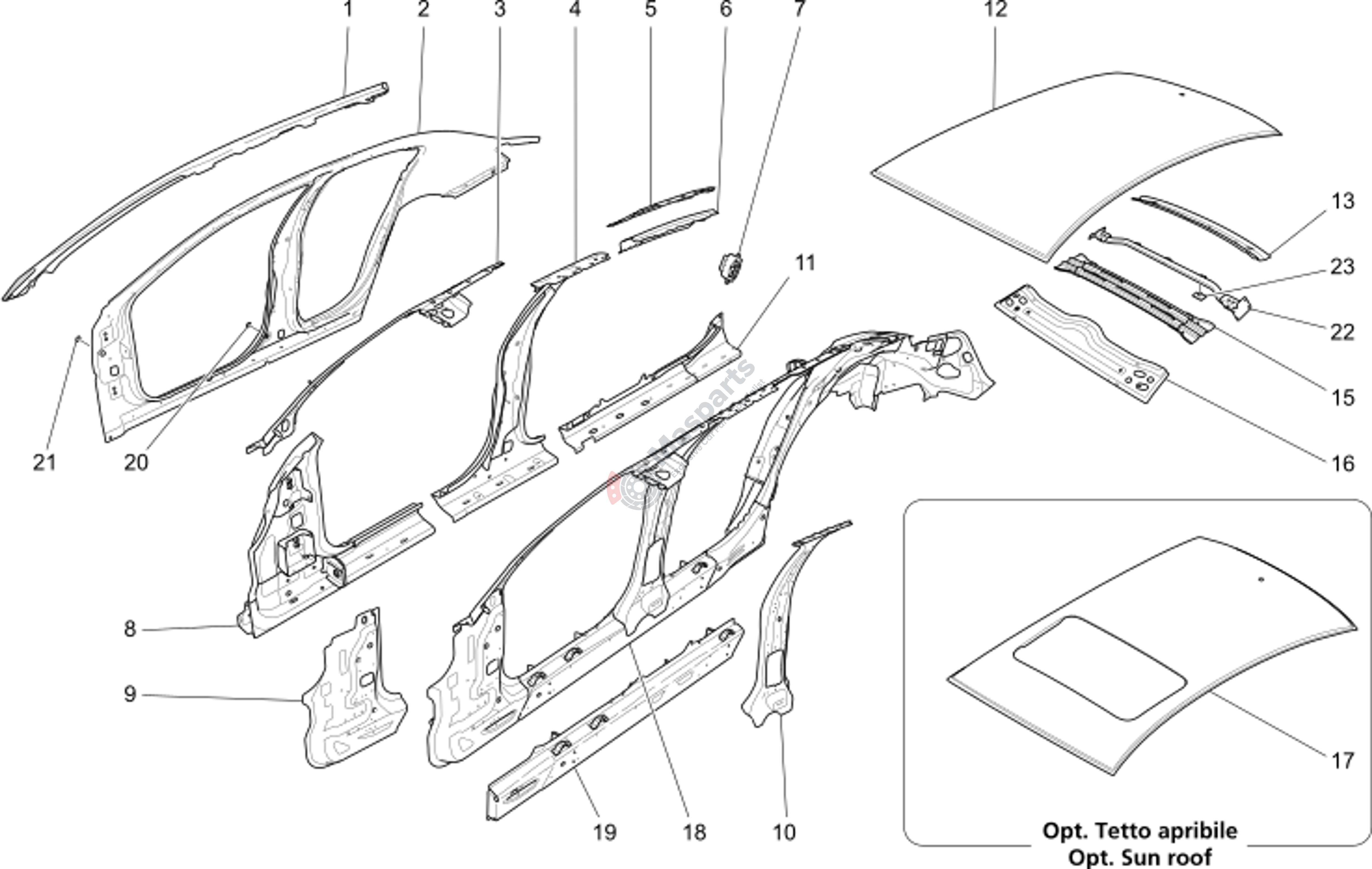

Diagram image not available
The parts list is available below.
Be aware: Two same spot numbers are selected, for example left and right.
| # | S | Part nr | Description | Price | Add |
|---|---|---|---|---|---|
| 1 | M-673000406 | Rh Windshield Pillar Side Me |
$78.57 |
|
|
| 2 | M-673001678 | Rh External Lateral Structur |
$2,192.66 |
|
|
| 3 | M-673005317 | Rh Cpl Pillar Small Side Mem |
$116.16 |
|
|
| 4 | M-673007573 | Rh Cpl Central Pillar Reinfo |
$524.19 |
|
|
| 5 | M-673001680 | Rh Cpl Rear Upper Small Side |
$37.02 |
|
|
| 6 | M-673001682 | Rh Rear Upper Small Side Mem |
$36.75 |
|
|
| 7 | M-673001684 | Rh Rear Mudguard Striker Rei |
$41.82 |
|
|
| 8 | M-673010777 | R.H. Front Pillar Reinforcem |
$466.59 |
|
|
| 9 | M-673014083 | Cpl R.H. Internal Body Side |
$92.54 |
|
|
| 10 | M-673000432 | Rh Cpl Central Pillar Framew |
$271.37 |
|
|
| 11 | M-673001691 | Rh Cpl Lower Central Body Si |
$182.78 |
|
|
| 12 | M-673001693 | Outer Roof Panel |
$1,003.70 |
|
|
| 13 | M-673001694 | Roof Panel Rear Cross Member |
$41.42 |
|
|
| 15 | M-673002948 | Cpl Cross Member |
$53.98 |
|
|
| 16 | M-673002865 | Cpl Windshield Upper Front C |
$104.45 |
|
|
| 18 | M-673007924 | Rear R.H.Body Side Framing |
$1,711.17 |
|
|
| 19 | M-673001700 | R.H.Lateral Member |
$351.41 |
|
|
| 20 | M-675000244 | Plug |
$0.98 |
|
