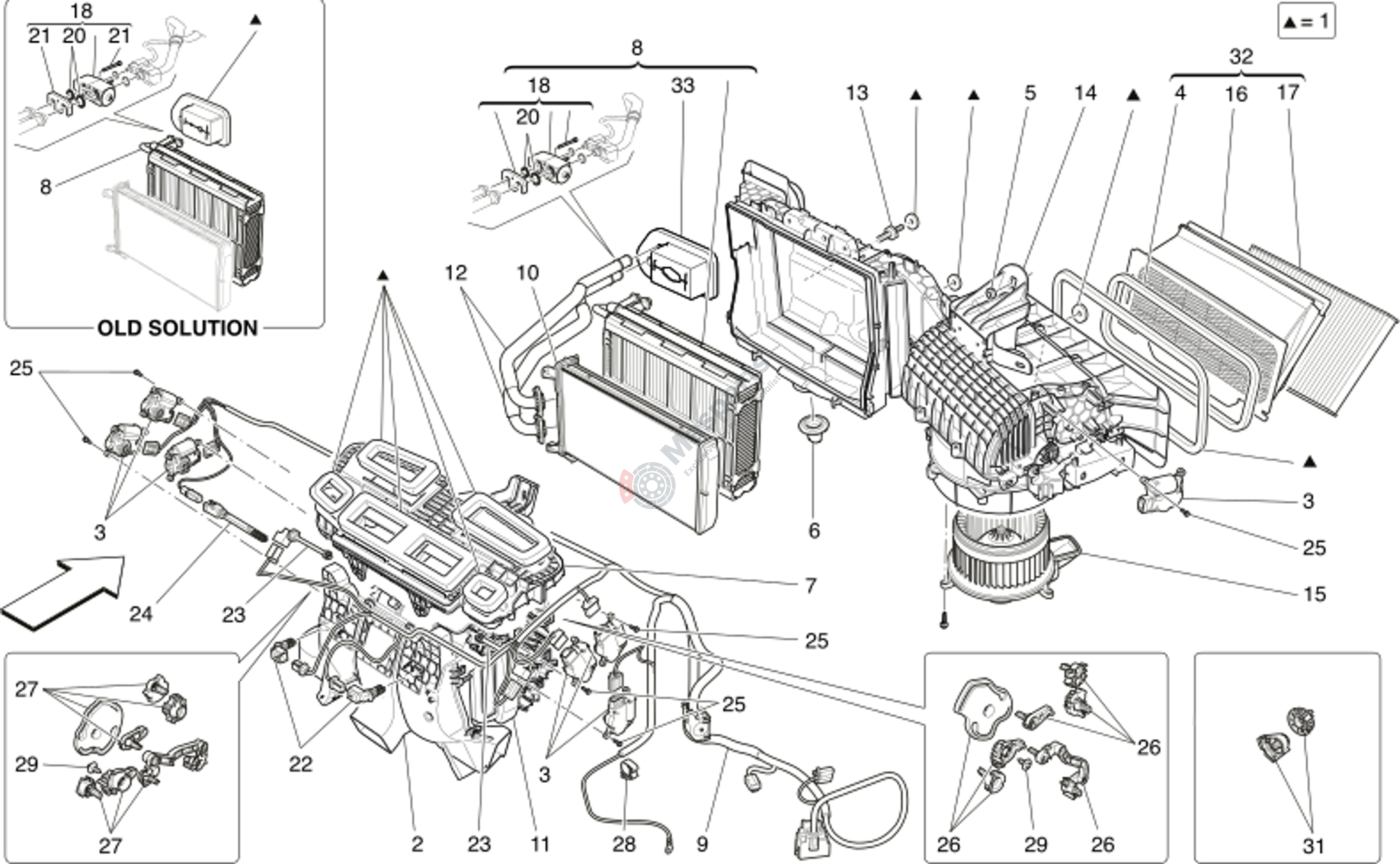

Diagram image not available
The parts list is available below.
Be aware: Two same spot numbers are selected, for example left and right.
| # | S | Part nr | Description | Price | Add |
|---|---|---|---|---|---|
| 1 | M-673009607 | Sealings Kit M156/7 Lhd |
$48.24 |
|
|
| 2 | M-673009330 | Air Duct |
$69.29 |
|
|
| 3 | M-670104418 | Actuator |
$66.14 |
|
|
| 4 | M-670007353 | Gasket |
$31.34 |
|
|
| 5 | M-675000093 | Nut |
$1.49 |
|
|
| 6 | M-675000425 | Condensation Outlet Hose |
$17.95 |
|
|
| 7 | M-673009329 | Air Duct |
$84.80 |
|
|
| 8 | M-673013159 | Lhd Evaporator |
$102.06 |
|
|
| 9 | M-673009320 | Wiring Harness |
$189.47 |
|
|
| 10 | M-673009324 | Heater |
$147.64 |
|
|
| 11 | M-673009317 | Central Body Hvac Gasoline |
$278.43 |
|
|
| 12 | M-673015316 | Heater Hose Kit |
$94.92 |
|
|
| 13 | M-673009338 | Pin |
$17.57 |
|
|
| 14 | M-673009318 | Air Inlet Module Lhd |
$363.56 |
|
|
| 15 | M-673009319 | Electrofan Gsx |
$459.15 |
|
|
| 16 | M-670005020 | Air Conditioner Box |
$32.50 |
|
|
| 17 | M-670005021 | Pollen Filter |
$52.16 |
|
|
| 18 | M-673009322 | Txv Kit |
$217.71 |
|
|
| 20 | M-673009339 | Gasket Kit |
$47.38 |
|
|
| 21 | M-673009336 | Txv Fixing Kit |
$14.74 |
|
|
| 22 | M-673009333 | Air Temp. Floor Sensor |
$36.25 |
|
|
| 23 | M-673009332 | Air Temp. Vent Sensor |
$30.88 |
|
|
| 24 | M-673009331 | Evapourator Sensor |
$47.92 |
|
|
| 25 | M-673009334 | Screw |
$7.52 |
|
|
| 26 | M-673009326 | Kit Right Side Mix/Mode Kine |
$25.11 |
|
|
| 27 | M-673009327 | Kit Left Side Mix/Mode Kinem |
$25.11 |
|
|
| 28 | M-673009337 | Retaining Clip |
$15.73 |
|
|
| 29 | M-673009335 | Screw |
$12.16 |
|
|
| 31 | M-673009328 | Kit Air Inlet/Rec Kinematics |
$19.91 |
|
|
| 32 | M-670004016 | Air Conditioner Box With Pol |
$86.50 |
|
|
| 33 | M-673014092 | Sealings Set |
$39.72 |
|
