Diagram image not available

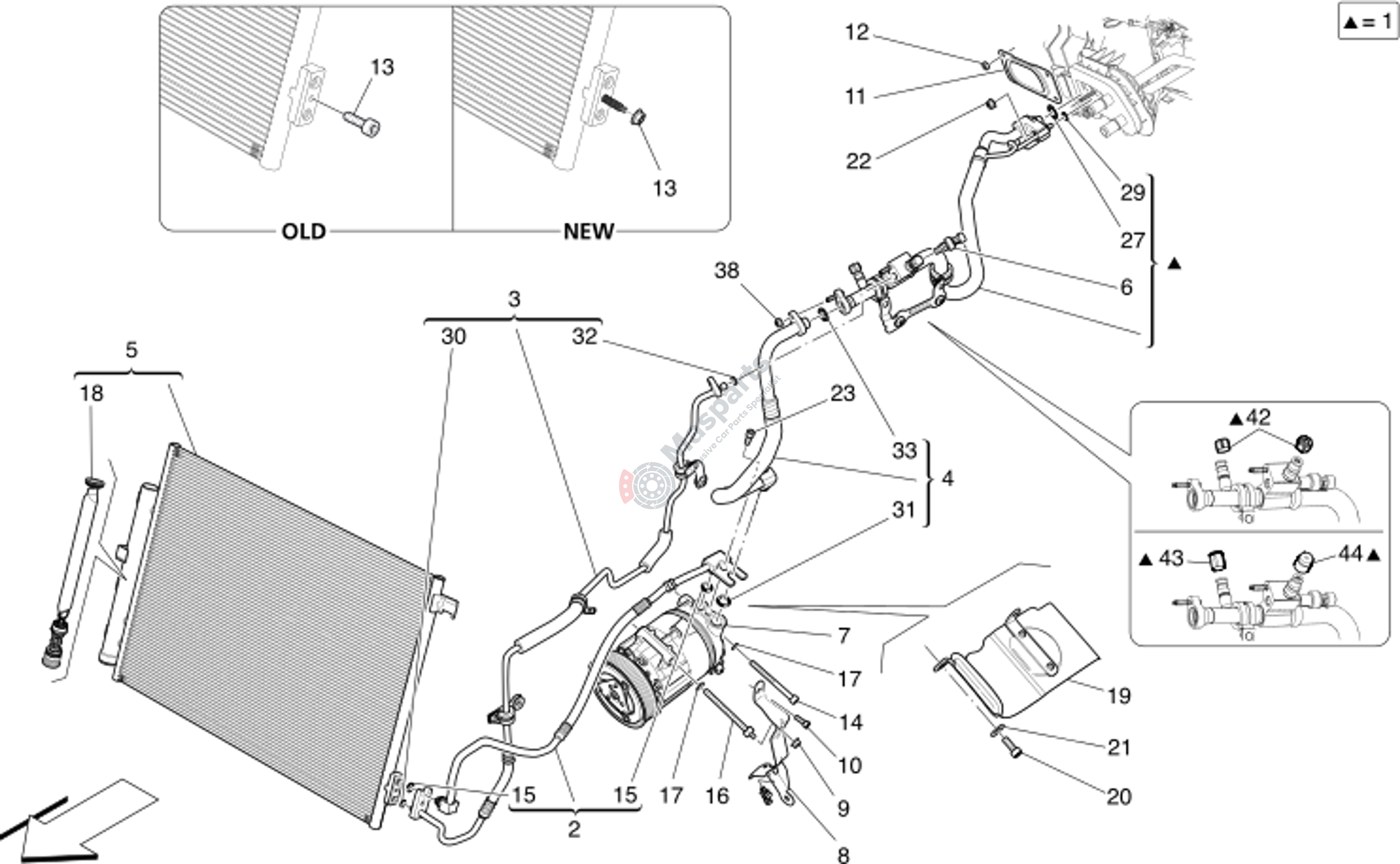

The parts list is available below.
Be aware: Two same spot numbers are selected, for example left and right.
| # | S | Part nr | Description | Price | Add |
|---|---|---|---|---|---|
| 1 | M-670007954 | Pipe From Evaporator To Unio |
$102.37 |
|
|
| 2 | M-670001939 | Flexible Pipe |
$83.71 |
|
|
| 3 | M-670176551 | Pipe |
$113.09 |
|
|
| 4 | M-670007952 | Flex Pipe From Compressor To |
$116.02 |
|
|
| 5 | M-670296020 | Ac Condenser |
$733.16 |
|
|
| 6 | M-670038668 | Pressostat |
$60.22 |
|
|
| 7 | M-954109 | Ac Compressor V8 |
$1,517.02 |
|
|
| 8 | M-288682 | Bracket |
$45.21 |
|
|
| 9 | M-14059211 | Nut |
$1.48 |
|
|
| 10 | M-675000314 | Screw |
$1.37 |
|
|
| 11 | M-670005087 | Plug |
$16.53 |
|
|
| 12 | M-675000315 | Nut |
$1.76 |
|
|
| 13 | M-675000328 | Nut |
$1.38 |
|
|
| 14 | M-14307224 | Screw |
$3.90 |
|
|
| 15 | M-675000122 | O-Ring 1/2 - 1234Yf |
$7.83 |
|
|
| 16 | M-286687 | Column |
$33.54 |
|
|
| 17 | M-11193874 | Washer |
$1.35 |
|
|
| 18 | M-673000010 | Dehydrator Filter |
$233.01 |
|
|
| 22 | M-675000328 | Nut |
$1.38 |
|
|
| 23 | M-675000249 | Screw |
$1.40 |
|
|
| 27 | M-675000123 | O-Ring 3/4 - 1234Yf |
$8.26 |
|
|
| 29 | M-675000121 | O-Ring 3/8 - 1234Yf |
$6.20 |
|
|
| 30 | M-675000121 | O-Ring 3/8 - 1234Yf |
$6.20 |
|
|
| 31 | M-675000123 | O-Ring 3/4 - 1234Yf |
$8.26 |
|
|
| 32 | M-675000119 | O-Ring 68X187 |
$1.97 |
|
|
| 33 | M-675000306 | O-Ring 136X243 |
$1.94 |
|
|
| 38 | M-675000315 | Nut |
$1.76 |
|
|
| 42 | M-673009426 | Gas Cap |
$28.46 |
|
