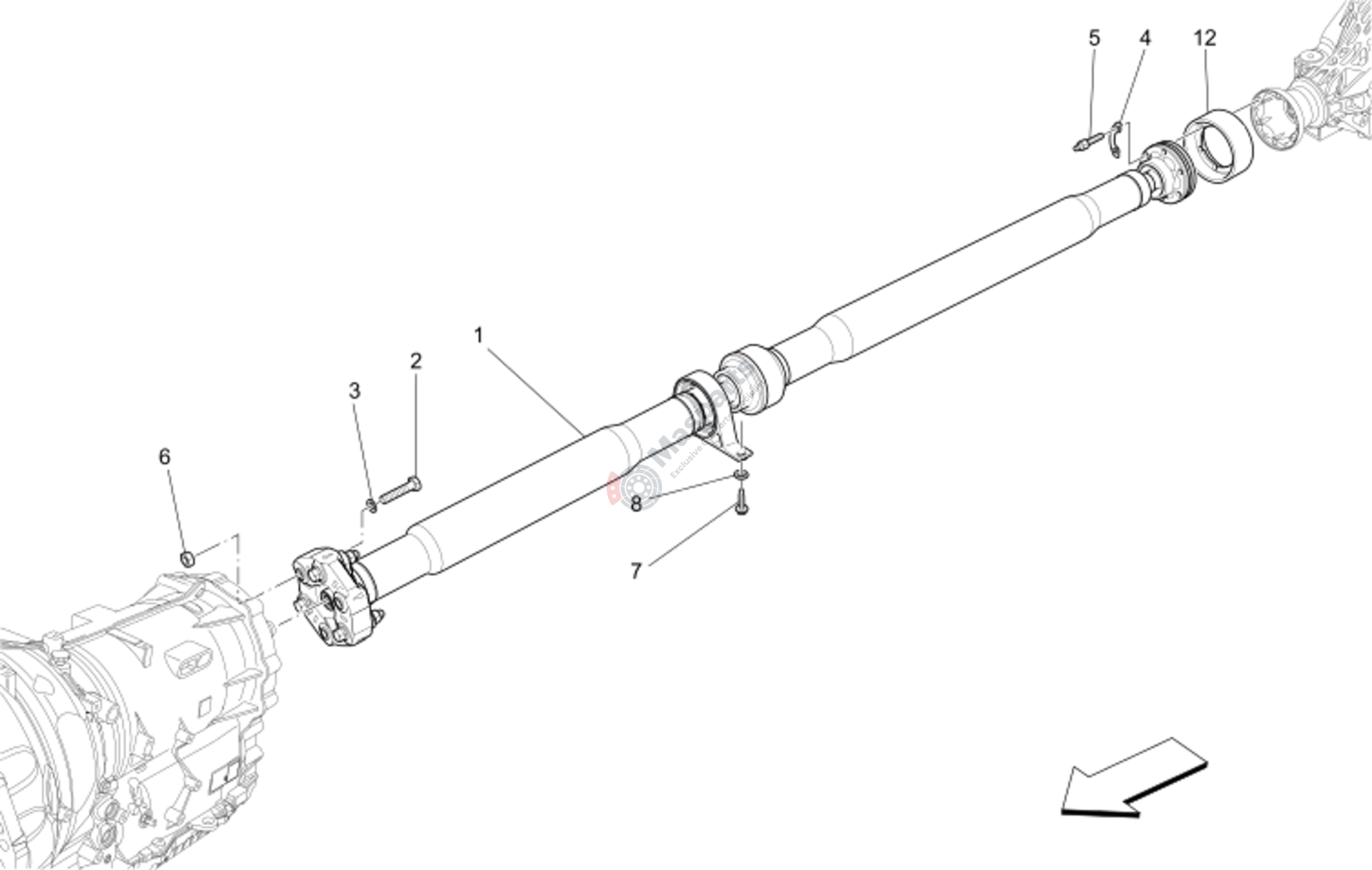

Diagram image not available
The parts list is available below.
Be aware: Two same spot numbers are selected, for example left and right.
| # | S | Part nr | Description | Price | Add |
|---|---|---|---|---|---|
| 1 | M-670220383 | Rear Transmission Shaft |
$1,323.51 |
|
|
| 2 | M-675000110 | Screw |
$5.04 |
|
|
| 3 | M-675000125 | Washer |
$2.07 |
|
|
| 4 | M-670002408 | Transmission Shaft Fast. Scr |
$3.63 |
|
|
| 5 | M-670030729 | Screw (Special - Short Colum |
$19.88 |
|
|
| 6 | M-675000109 | Nut |
$2.52 |
|
|
| 7 | M-675000041 | Screw |
$1.69 |
|
|
| 8 | M-675000177 | Washer |
$1.41 |
|
