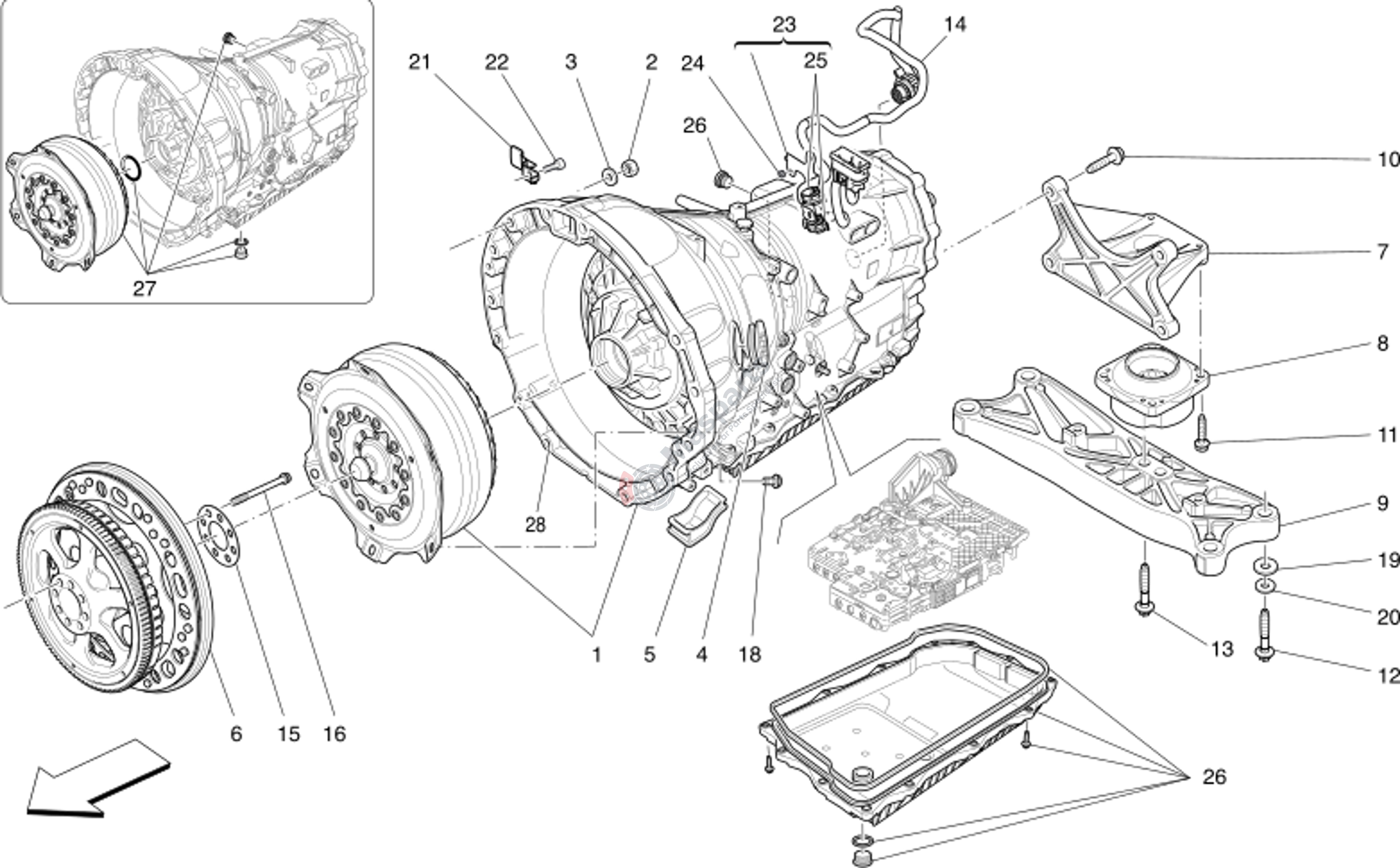

Diagram image not available
The parts list is available below.
Be aware: Two same spot numbers are selected, for example left and right.
| # | S | Part nr | Description | Price | Add |
|---|---|---|---|---|---|
| 1 | M-670153384 | Automatic Gearbox |
$10,595.77 |
|
|
| 2 | M-675000184 | Nut |
$1.73 |
|
|
| 3 | M-675000098 | Washer |
$1.85 |
|
|
| 4 | M-670003520 | Plug |
$5.01 |
|
|
| 5 | M-670003521 | Closing Cap |
$5.04 |
|
|
| 6 | M-670154289 | Engine Flywheel |
$661.59 |
|
|
| 7 | M-670001542 | Gearbox Side Engine Mounting |
$112.79 |
|
|
| 8 | M-675000031 | Gearbox Side Suspension Bush |
$36.81 |
|
|
| 9 | M-670003954 | Support |
$236.96 |
|
|
| 10 | M-675000120 | Screw |
$2.75 |
|
|
| 11 | M-675000540 | Screw M8X40 |
$1.74 |
|
|
| 12 | M-675000145 | Screw |
$3.95 |
|
|
| 13 | M-675000145 | Screw |
$3.95 |
|
|
| 14 | M-670007402 | Gearbox Cable |
$576.35 |
|
|
| 15 | M-670002257 | Shim |
$4.46 |
|
|
| 16 | M-670002933 | Screw |
$7.62 |
|
|
| 18 | M-670005384 | Screw |
$2.40 |
|
|
| 19 | M-675000247 | Washer |
$1.61 |
|
|
| 20 | M-675000254 | Washer |
$1.72 |
|
|
| 21 | M-670005079 | Bracket |
$4.43 |
|
|
| 22 | M-675000191 | Screw |
$1.96 |
|
|
| 23 | M-670005501 | Cpl Bracket |
$11.07 |
|
|
| 24 | M-675000093 | Nut |
$1.43 |
|
|
| 26 | M-673003178 | Cpl Auto Transmiss. Oil Sump |
$413.43 |
|
|
| 27 | M-673011124 | Kit Convertitore Cambio V8 M |
$2,615.00 |
|
