Diagram image not available

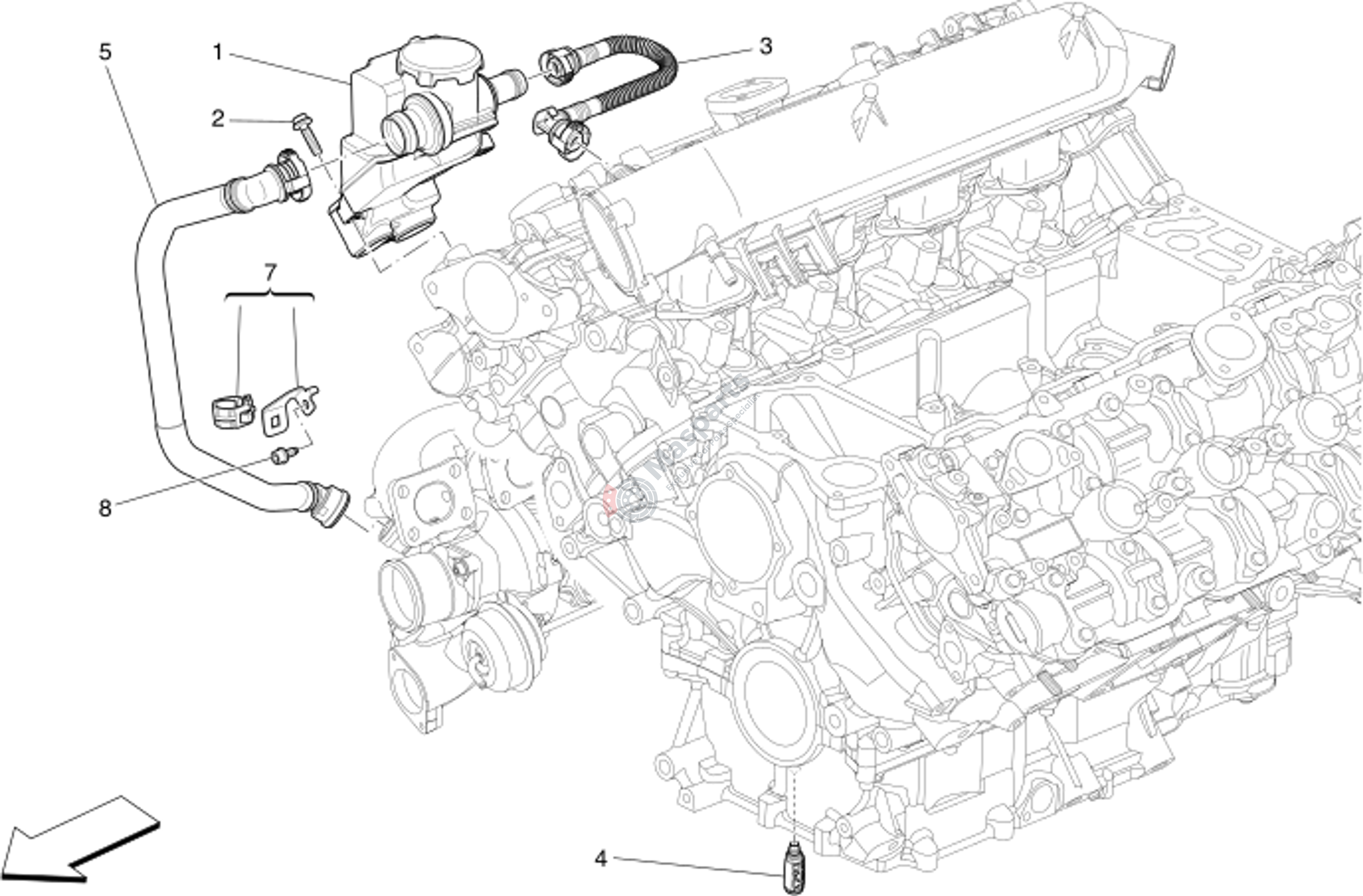

The parts list is available below.
Be aware: Two same spot numbers are selected, for example left and right.
| # | S | Part nr | Description | Price | Add |
|---|---|---|---|---|---|
| 1 | M-299742 | Oil Vapour Separator |
$395.49 |
|
|
| 2 | M-231619 | Socket Head Screw With Washe |
$2.45 |
|
|
| 3 | M-286245 | Tube Separator Intake Manifo |
$158.70 |
|
|
| 4 | M-285403 | Non-Return Valve |
$239.03 |
|
|
| 5 | M-670104130 | Blow-By Pipe M161 V8 |
$40.27 |
|
|
| 7 | M-670104132 | Blow-By Rigid Hose Bracket |
$13.71 |
|
|
| 8 | M-675000173 | Screw |
$2.04 |
|
