Diagram image not available
The parts list is available below.
Be aware: Two same spot numbers are selected, for example left and right.

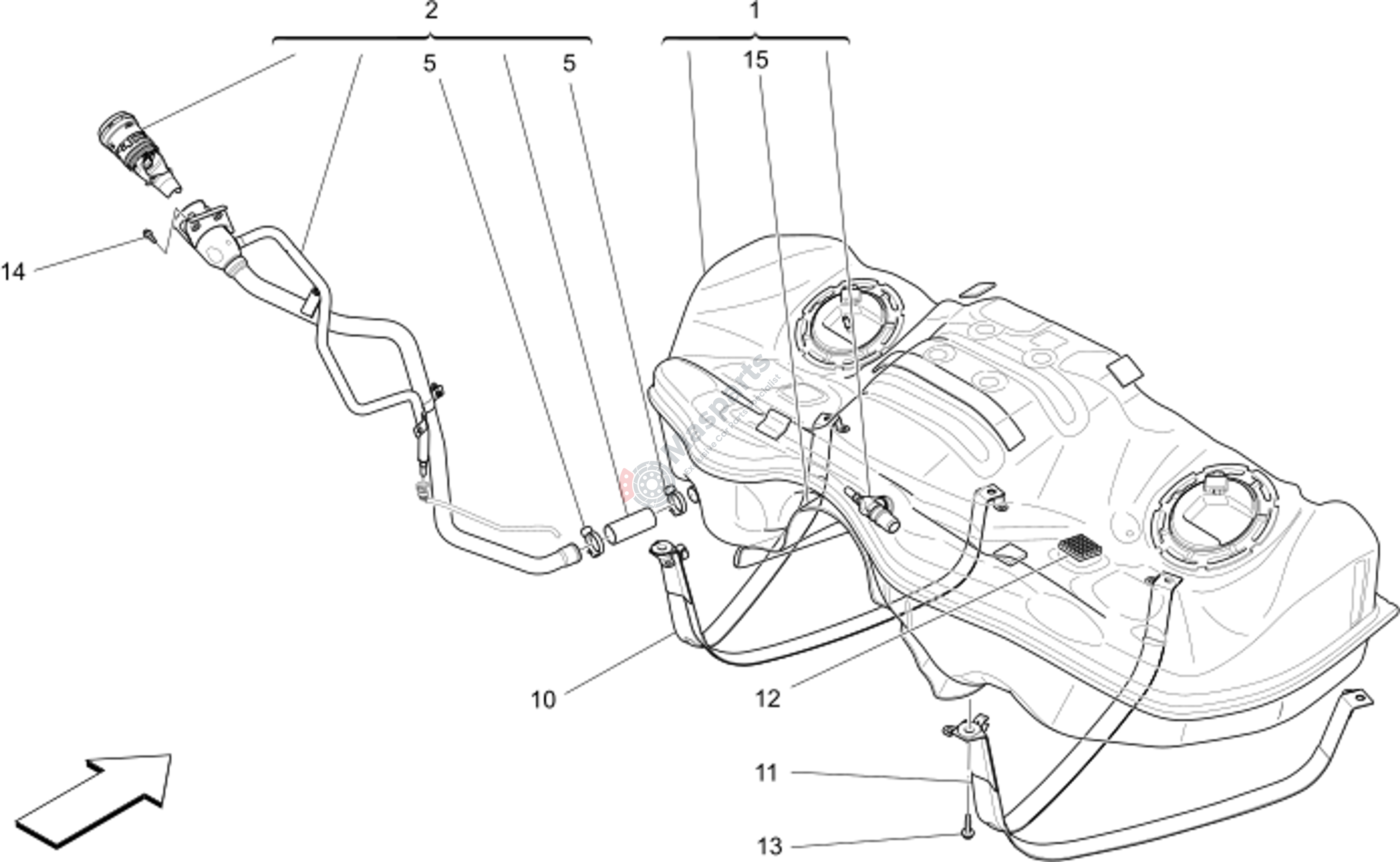

| # | S | Part nr | Description | Price | Add |
|---|---|---|---|---|---|
| 1 | M-670103704 | Fuel Tank |
$3,529.39 |
|
|
| 2 | M-670219184 | Fuel Filler Neck Gh |
$175.44 |
|
|
| 5 | M-11417670 | Nemo Bes Fastening Collar D3 |
$9.87 |
|
|
| 10 | M-670007868 | Lh Fuel Tank Fastening Strap |
$105.64 |
|
|
| 11 | M-670007867 | Rh Fuel Tank Fastening Strap |
$86.58 |
|
|
| 12 | M-670003729 | Antivibration Bushing |
$5.59 |
|
|
| 13 | M-675000041 | Screw |
$1.71 |
|
|
| 14 | M-675000144 | Screw |
$2.68 |
|
