Diagram image not available

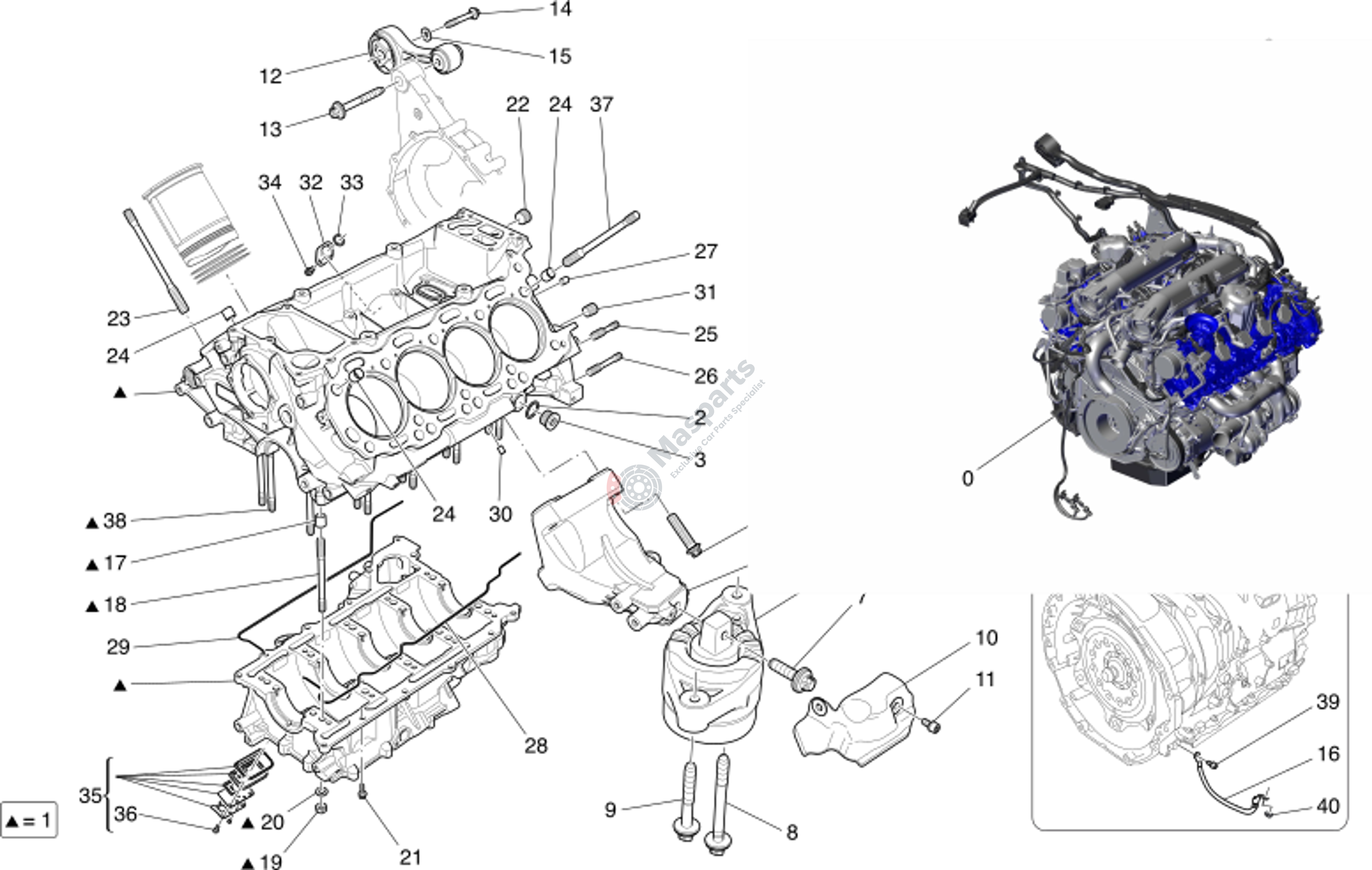

The parts list is available below.
Be aware: Two same spot numbers are selected, for example left and right.
| # | S | Part nr | Description | Price | Add |
|---|---|---|---|---|---|
| 0 | M-670153389 | Engine Assembly |
$35,294.38 |
|
|
| 1 | M-339344 | Cpl Crankcase |
$4,076.06 |
|
|
| 2 | M-10263460 | Gasket 22- 28X 1.5 |
$1.70 |
|
|
| 3 | M-307477 | Threaded Plug |
$3.78 |
|
|
| 4 | M-330935 | Right-Hand Engine Bracket |
$222.46 |
|
|
| 5 | M-290126 | Screw |
$42.22 |
|
|
| 6 | M-670175584 | Rh Engine Side Plug |
$212.64 |
|
|
| 7 | M-670003759 | Screw |
$6.58 |
|
|
| 8 | M-670103084 | Screw And Washer |
$3.03 |
|
|
| 9 | M-670103084 | Screw And Washer |
$3.03 |
|
|
| 10 | M-670003985 | Transmission Heat Shield |
$18.17 |
|
|
| 11 | M-675000172 | Screw |
$1.00 |
|
|
| 12 | M-670173169 | High Link Rod |
$144.89 |
|
|
| 13 | M-670003869 | Screw |
$10.62 |
|
|
| 14 | M-675000146 | Screw |
$5.73 |
|
|
| 15 | M-675000096 | Washer |
$1.14 |
|
|
| 16 | M-670007404 | Ground Cable For Engine-Fram |
$180.26 |
|
|
| 17 | M-102725 | Centring Dowel D.8X8 |
$1.70 |
|
|
| 18 | M-270465 | Threaded Stud |
$28.11 |
|
|
| 19 | M-133988 | Hex Nut M10X10.25.25X8 |
$1.77 |
|
|
| 20 | M-178348 | Machined Washer D.10.2-20X2. |
$3.60 |
|
|
| 21 | M-231620 | Socket Head Screw With Washe |
$1.61 |
|
|
| 22 | M-282753 | Threaded Plug |
$8.04 |
|
|
| 23 | M-270464 | Threaded Stud |
$25.99 |
|
|
| 24 | M-185360 | Centring Dowel D.16X15 |
$6.31 |
|
|
| 25 | M-278120 | Threaded Stud |
$29.59 |
|
|
| 26 | M-278119 | Threaded Stud |
$27.58 |
|
|
| 27 | M-311001 | Centering Dowel |
$9.34 |
|
|
| 28 | M-339289 | Lh Crankcase Gasket |
$52.64 |
|
|
| 29 | M-339298 | Rh Crankcase Gasket |
$112.57 |
|
|
| 30 | M-10839610 | Centering Dowel |
$1.21 |
|
|
| 31 | M-291078 | Threaded Plug |
$3.53 |
|
|
| 32 | M-265562 | Flange |
$22.55 |
|
|
| 33 | M-264447 | O-Ring |
$1.10 |
|
|
| 34 | M-231617 | Socket Head Screw With Washe |
$2.41 |
|
|
| 35 | M-255138 | Blow By Valve Assembly |
$71.24 |
|
|
| 37 | M-271564 | Threaded Stud |
$29.59 |
|
|
| 38 | M-270466 | Threaded Stud |
$31.50 |
|
|
| 39 | M-675000383 | Screw |
$1.20 |
|
|
| 40 | M-675000505 | Nut |
$2.97 |
|
