Diagram image not available

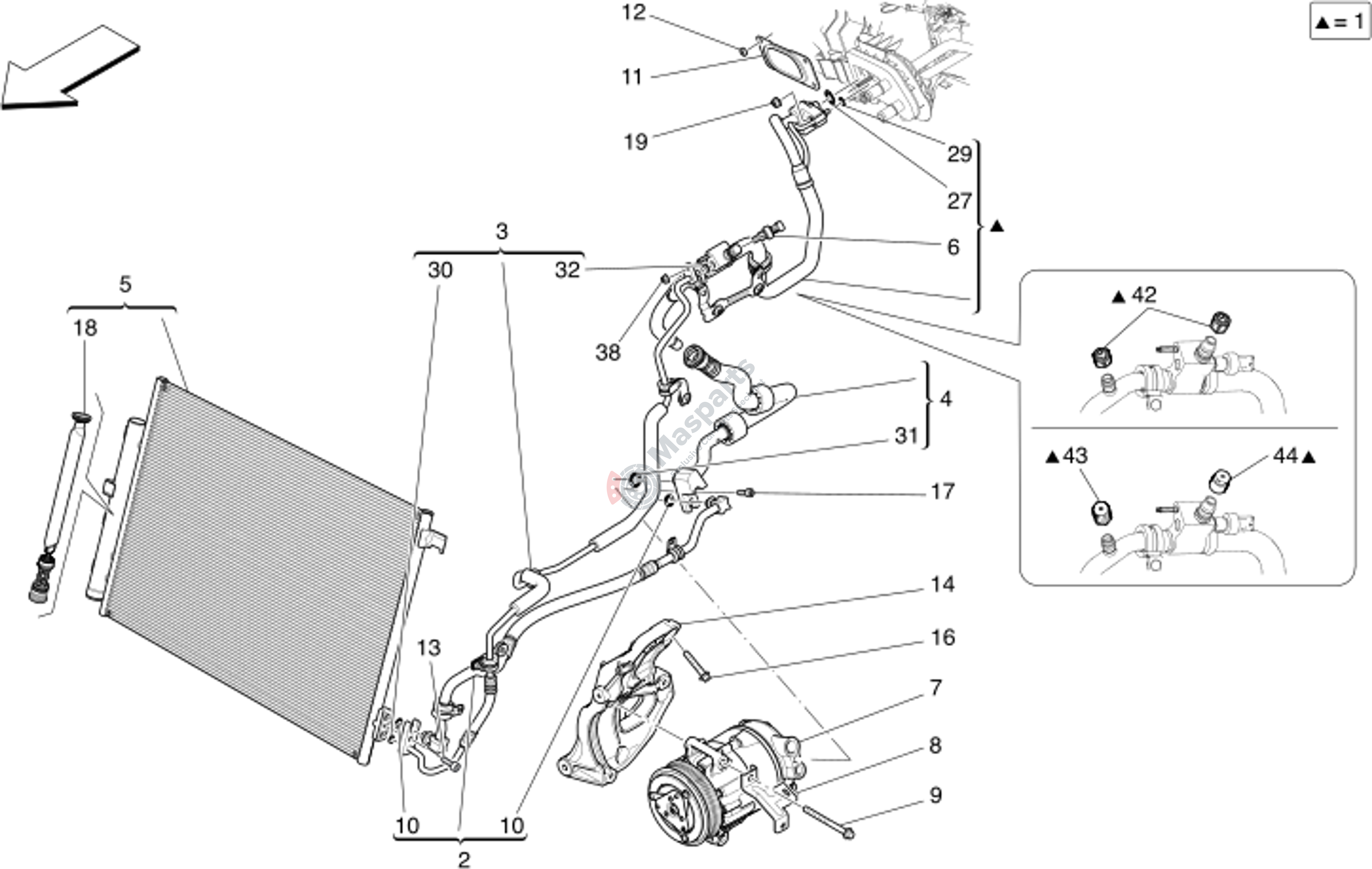

The parts list is available below.
Be aware: Two same spot numbers are selected, for example left and right.
| # | S | Part nr | Description | Price | Add |
|---|---|---|---|---|---|
| 1 | M-670004944 | Pipe From Evaporator To Unio |
$1,042.02 |
|
|
| 2 | M-670004933 | Flex Hose From Cond To Compr |
$410.90 |
|
|
| 3 | M-670004957 | Flex Hose From Cond To Union |
$398.50 |
|
|
| 4 | M-670030074 | Low Pressure Delivery Pipe |
$1,085.88 |
|
|
| 5 | M-670009820 | A.C. Condenser |
$784.62 |
|
|
| 6 | M-675000557 | Pressostat |
$68.29 |
|
|
| 7 | M-954108 | A/C Compressor |
$1,331.84 |
|
|
| 8 | M-673001244 | Bracket |
$25.09 |
|
|
| 9 | M-46328708 | Flange Bolt |
$3.61 |
|
|
| 10 | M-675000122 | O-Ring 1/2 - 1234Yf |
$7.66 |
|
|
| 11 | M-670005087 | Plug |
$16.16 |
|
|
| 12 | M-675000315 | Nut |
$1.73 |
|
|
| 13 | M-675000456 | Screw |
$4.56 |
|
|
| 14 | M-46333839 | Support Bracket |
$118.67 |
|
|
| 16 | M-46328715 | Flange Bolt |
$2.48 |
|
|
| 17 | M-675000249 | Screw |
$1.37 |
|
|
| 18 | M-673000010 | Dehydrator Filter |
$227.85 |
|
|
| 19 | M-675000328 | Nut |
$1.36 |
|
|
| 27 | M-675000123 | O-Ring 3/4 - 1234Yf |
$8.08 |
|
|
| 29 | M-675000121 | O-Ring 3/8 - 1234Yf |
$6.07 |
|
|
| 30 | M-675000121 | O-Ring 3/8 - 1234Yf |
$6.07 |
|
|
| 31 | M-675000123 | O-Ring 3/4 - 1234Yf |
$8.08 |
|
|
| 32 | M-675000119 | O-Ring 68X187 |
$1.93 |
|
|
| 38 | M-675000315 | Nut |
$1.73 |
|
|
| 42 | M-673009426 | Gas Cap |
$27.83 |
|
