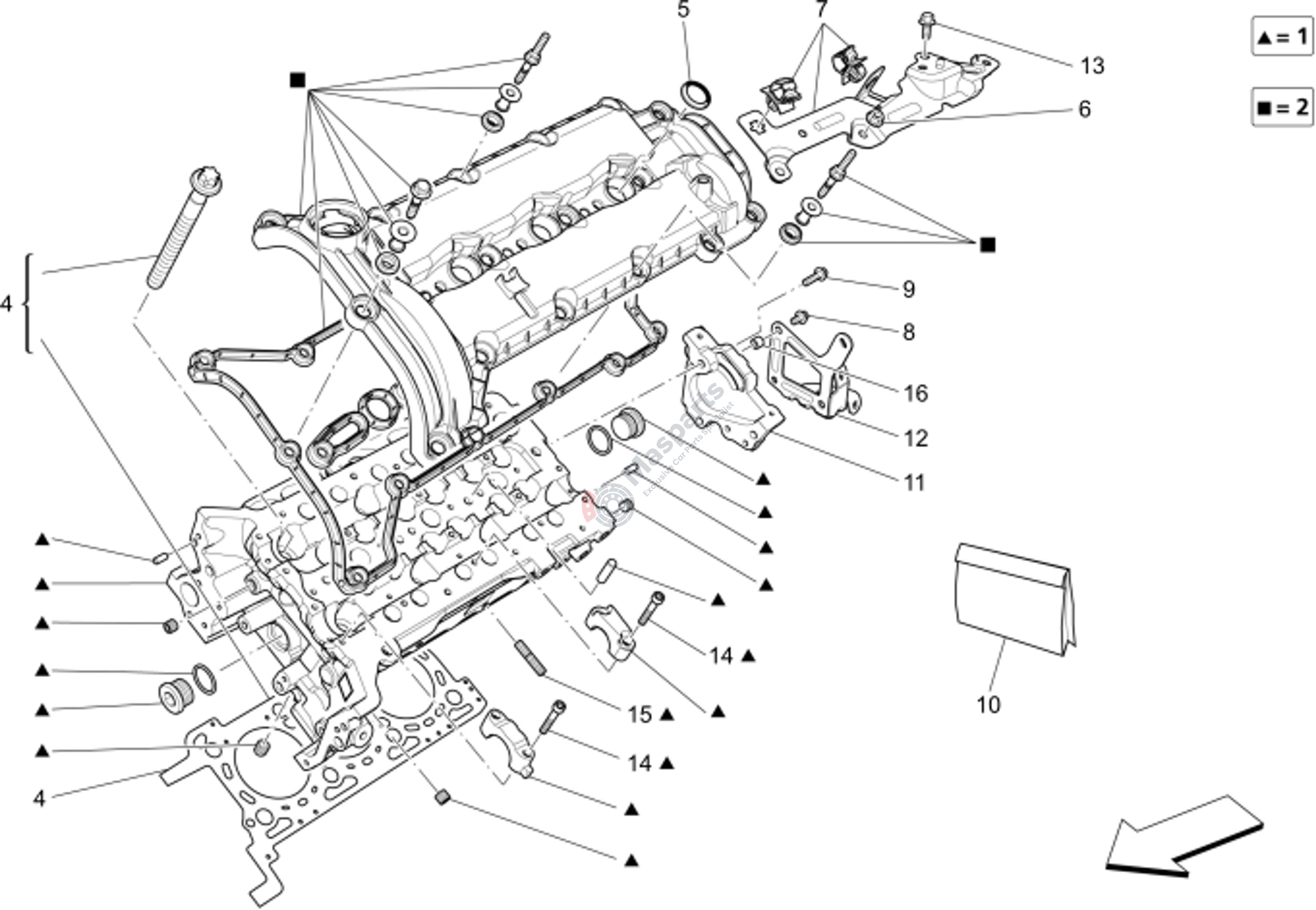

The parts list is available below.
Be aware: Two same spot numbers are selected, for example left and right.
| # | S | Part nr | Description | Price | Add |
|---|---|---|---|---|---|
| 1 | M-46328100 | Cpl Head |
$2,006.63 |
|
|
| 2 | M-46328156 | Head Cover |
$341.29 |
|
|
| 4 | M-673001239 | Head Gasket Kit |
$229.71 |
|
|
| 5 | M-46328165 | O.R. Gasket |
$21.11 |
|
|
| 6 | M-673001154 | Flange Nut |
$1.48 |
|
|
| 8 | M-46328683 | Flange Bolt |
$1.14 |
|
|
| 9 | M-46328699 | Flange Bolt |
$2.90 |
|
|
| 10 | M-673001233 | Gasket Kit |
$706.72 |
|
|
| 11 | M-46328111 | Head Rear Cover |
$115.68 |
|
|
| 12 | M-46334965 | Water Pump Bracket |
$36.54 |
|
|
| 13 | M-46328696 | Flange Bolt |
$2.07 |
|
|
| 14 | M-46328010 | Screw |
$1.75 |
|
|
| 15 | M-46328016 | Stud |
$1.75 |
|
|
| 16 | M-46328268 | Spacer |
$5.07 |
|
