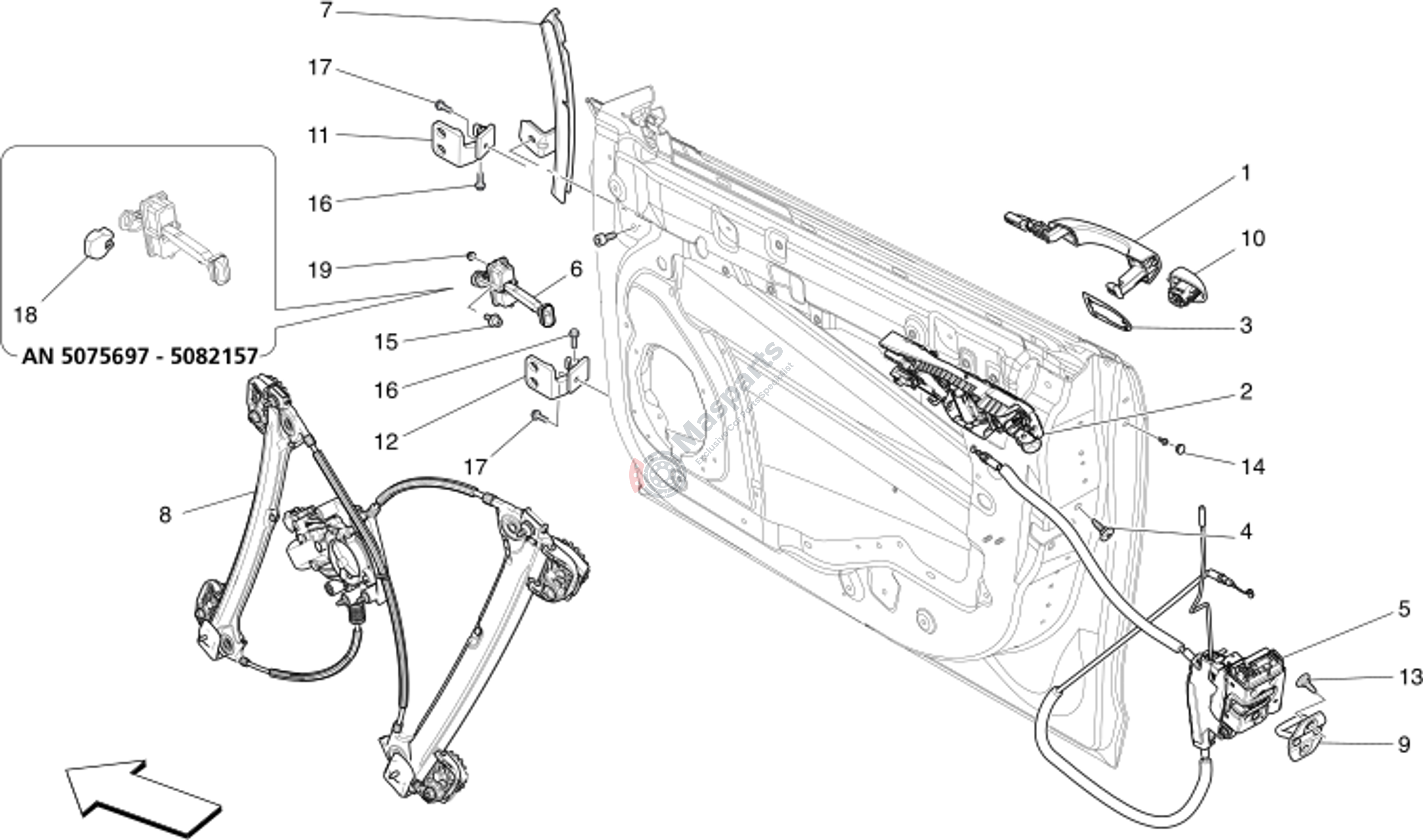

Diagram image not available
The parts list is available below.
Be aware: Two same spot numbers are selected, for example left and right.
| # | S | Part nr | Description | Price | Add |
|---|---|---|---|---|---|
| 2 | M-670109516 | Rh Outer Handle Retaining Br |
$93.78 |
|
|
| 3 | M-670005442 | External Door Handle Gasket |
$1.69 |
|
|
| 4 | M-670005609 | Screw |
$2.61 |
|
|
| 5 | M-670162424 | Rh Front Door Lock |
$134.56 |
|
|
| 6 | M-670030575 | Front Door Stop Tie Rod. |
$26.20 |
|
|
| 7 | M-670003742 | R.H.Front Glass Guide. |
$19.80 |
|
|
| 8 | M-670102267 | Front Rh Power Window Mechan |
$462.51 |
|
|
| 9 | M-675000573 | Doors Lock Striker |
$17.60 |
|
|
| 11 | M-675000162 | Rh Door Upper Hinge |
$43.61 |
|
|
| 12 | M-675000161 | Rh Door Lower Hinge |
$26.02 |
|
|
| 13 | M-670009758 | Screw |
$2.07 |
|
|
| 15 | M-670006984 | Screw |
$2.31 |
|
|
| 16 | M-675000005 | Special Screw |
$2.25 |
|
|
| 17 | M-675000485 | Special Screw |
$1.54 |
|
|
| 19 | M-670006983 | Flanged Nut |
$1.70 |
|
