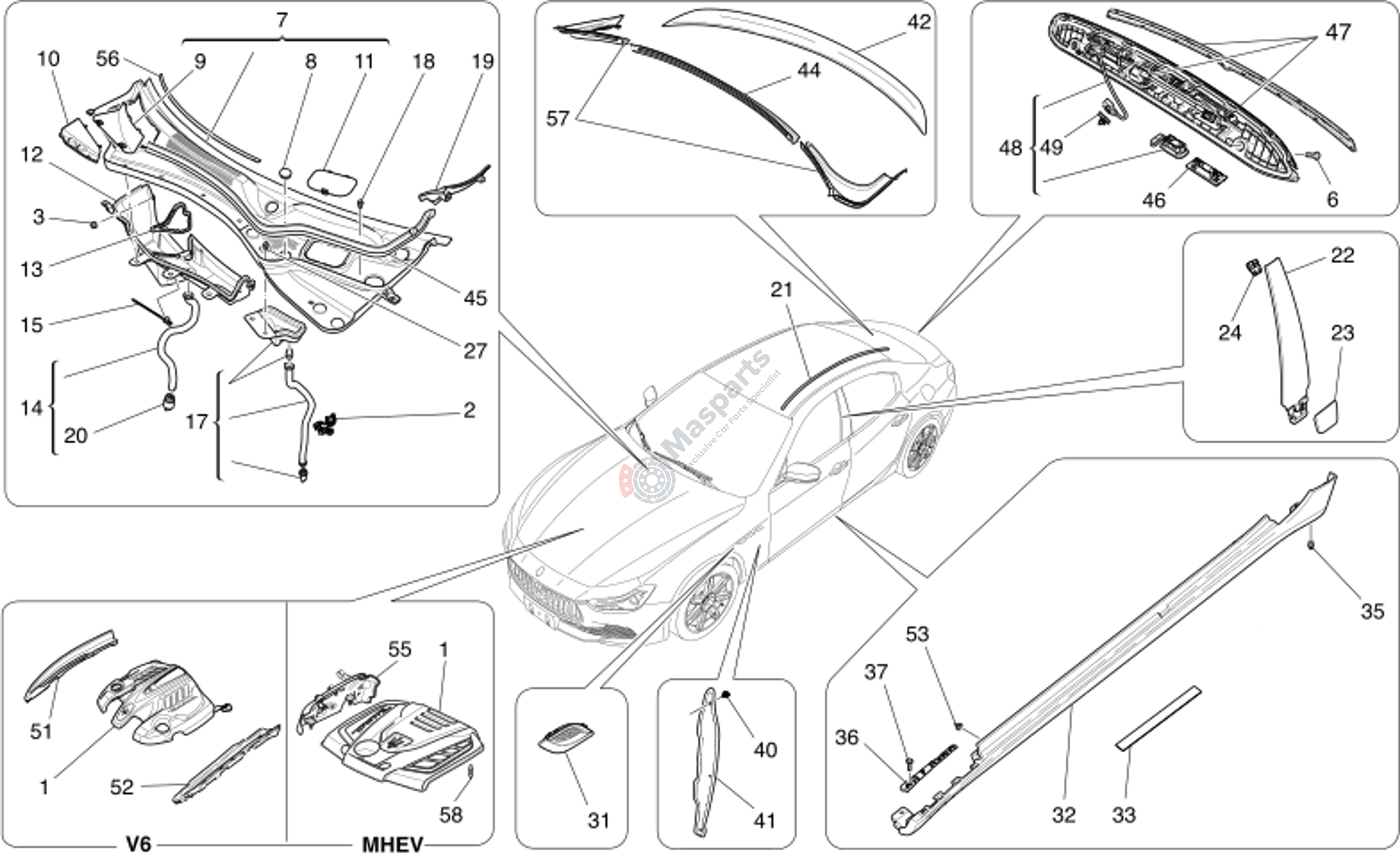

Diagram image not available
The parts list is available below.
Be aware: Two same spot numbers are selected, for example left and right.
| # | S | Part nr | Description | Price | Add |
|---|---|---|---|---|---|
| 1 | M-670032481 | Aesthetic Guard On Intake Ma |
$294.00 |
|
|
| 2 | M-675001446 | Pipe Retaining Clip |
$1.84 |
|
|
| 3 | M-675000442 | Nut |
$1.44 |
|
|
| 6 | M-670006846 | Screw |
$2.05 |
|
|
| 8 | M-675000311 | Plug |
$3.20 |
|
|
| 11 | M-670013428 | Brake Fluid Topping-Up Door |
$15.73 |
|
|
| 12 | M-670106753 | Plenum Cowl Reinforcement Lh |
$88.36 |
|
|
| 13 | M-670004127 | Water Shield |
$15.23 |
|
|
| 14 | M-670107854 | Drainage Hole Pipe |
$38.70 |
|
|
| 15 | M-670005402 | Clamp |
$1.67 |
|
|
| 18 | M-675000150 | Fixing Button. |
$0.96 |
|
|
| 20 | M-670006052 | Non Return Valve |
$17.85 |
|
|
| 21 | M-670010746 | Complete Rh Roof Moulding |
$257.14 |
|
|
| 24 | M-670107687 | Bracket |
$6.35 |
|
|
| 27 | M-675000150 | Fixing Button. |
$0.96 |
|
|
| 32 | M-673010782 | Rh Side Skirt |
$2,719.29 |
|
|
| 35 | M-675000058 | Fastening Clip |
$2.77 |
|
|
| 36 | M-670006112 | Bracket |
$7.14 |
|
|
| 37 | M-675000111 | Screw |
$2.56 |
|
|
| 40 | M-675000058 | Fastening Clip |
$2.77 |
|
|
| 41 | M-670001706 | Front R.H. Mudguard Reinforc |
$52.72 |
|
|
| 44 | M-670004382 | Luggage Comp. Centr. Cover-D |
$68.66 |
|
|
| 45 | M-670002093 | Air Intake Compartment Gaske |
$41.58 |
|
|
| 46 | M-673001401 | Light Plate |
$52.39 |
|
|
| 48 | M-673007902 | Microswitch V2 |
$121.50 |
|
|
| 49 | M-673000066 | Fixing Element |
$60.99 |
|
|
| 53 | M-673003779 | Pin |
$3.62 |
|
|
| 57 | M-673013153 | Rh+Lh Cable-Duct Trunk Compa |
$122.76 |
|
|
| 58 | M-675000971 | Pin |
$3.13 |
|
