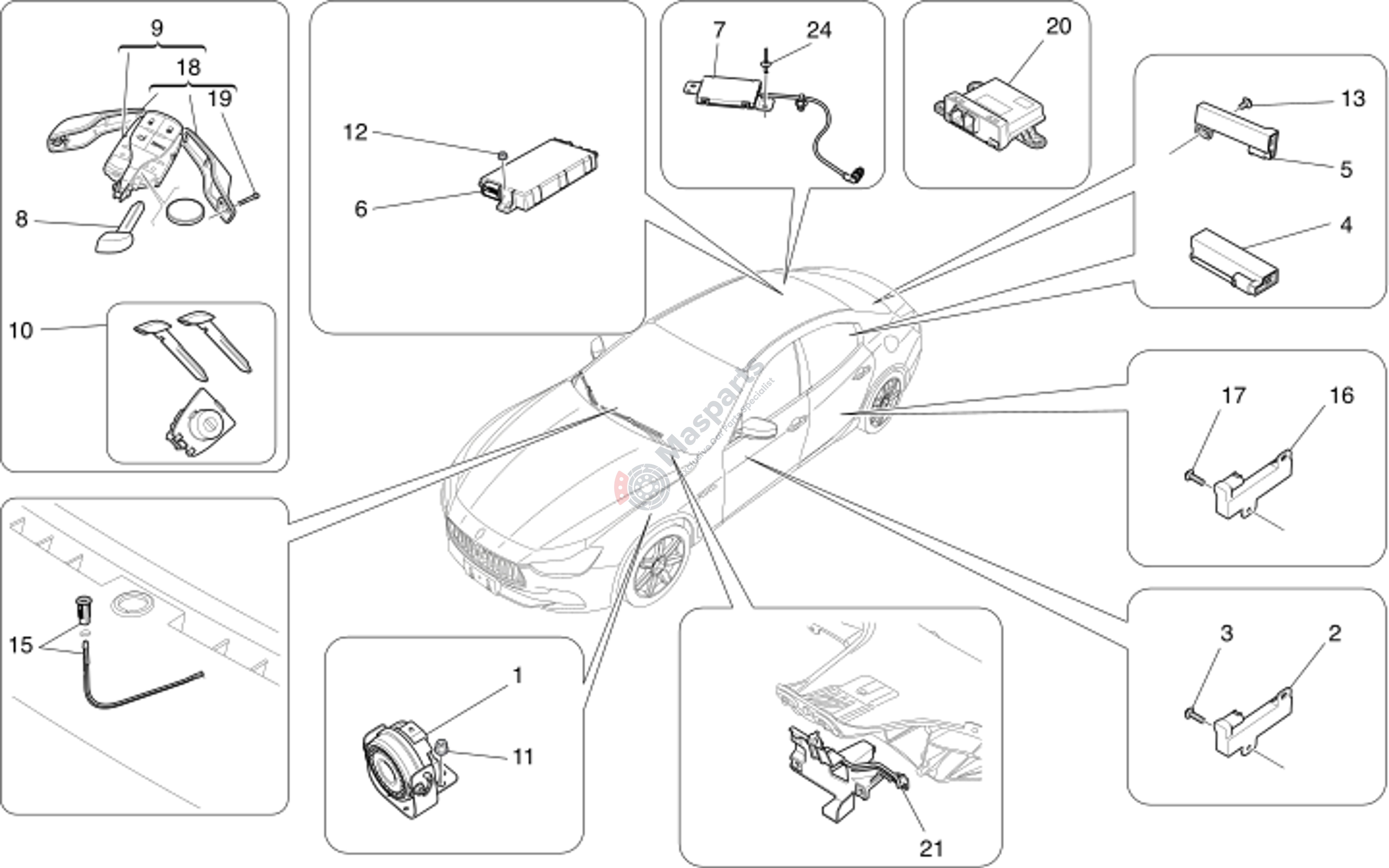

The parts list is available below.
Be aware: Two same spot numbers are selected, for example left and right.
| # | S | Part nr | Description | Price | Add |
|---|---|---|---|---|---|
| 1 | M-670001723 | Alarm System Siren M156 |
€122,12 |
|
|
| 3 | M-673002004 | Screw For Pass. Entry Antenn |
€11,41 |
|
|
| 4 | M-675000241 | Luggage Comp. Passive Entry |
€64,07 |
|
|
| 5 | M-675000357 | Passive Entry Antenna |
€17,11 |
|
|
| 7 | M-670008330 | Remote Start Antenna |
€39,99 |
|
|
| 8 | M-673000106 | Key Blade 670013664 |
€105,80 |
|
|
| 11 | M-675000095 | Nut |
€0,66 |
|
|
| 12 | M-675000451 | Nut |
€3,52 |
|
|
| 13 | M-675000466 | Screw |
€1,98 |
|
|
| 16 | M-675000207 | Passive Entry Antenna |
€17,20 |
|
|
| 17 | M-673002004 | Screw For Pass. Entry Antenn |
€11,41 |
|
|
| 19 | M-673008174 | Fob Cover Screw |
€4,88 |
|
|
| 20 | M-670153631 | Gateway Security Module |
€86,00 |
|
|
| 21 | M-670102483 | Gateway Bracket Lhd+ 9Fx+.. |
€11,87 |
|
|
| 24 | M-675000652 | Rivet |
€1,07 |
|
