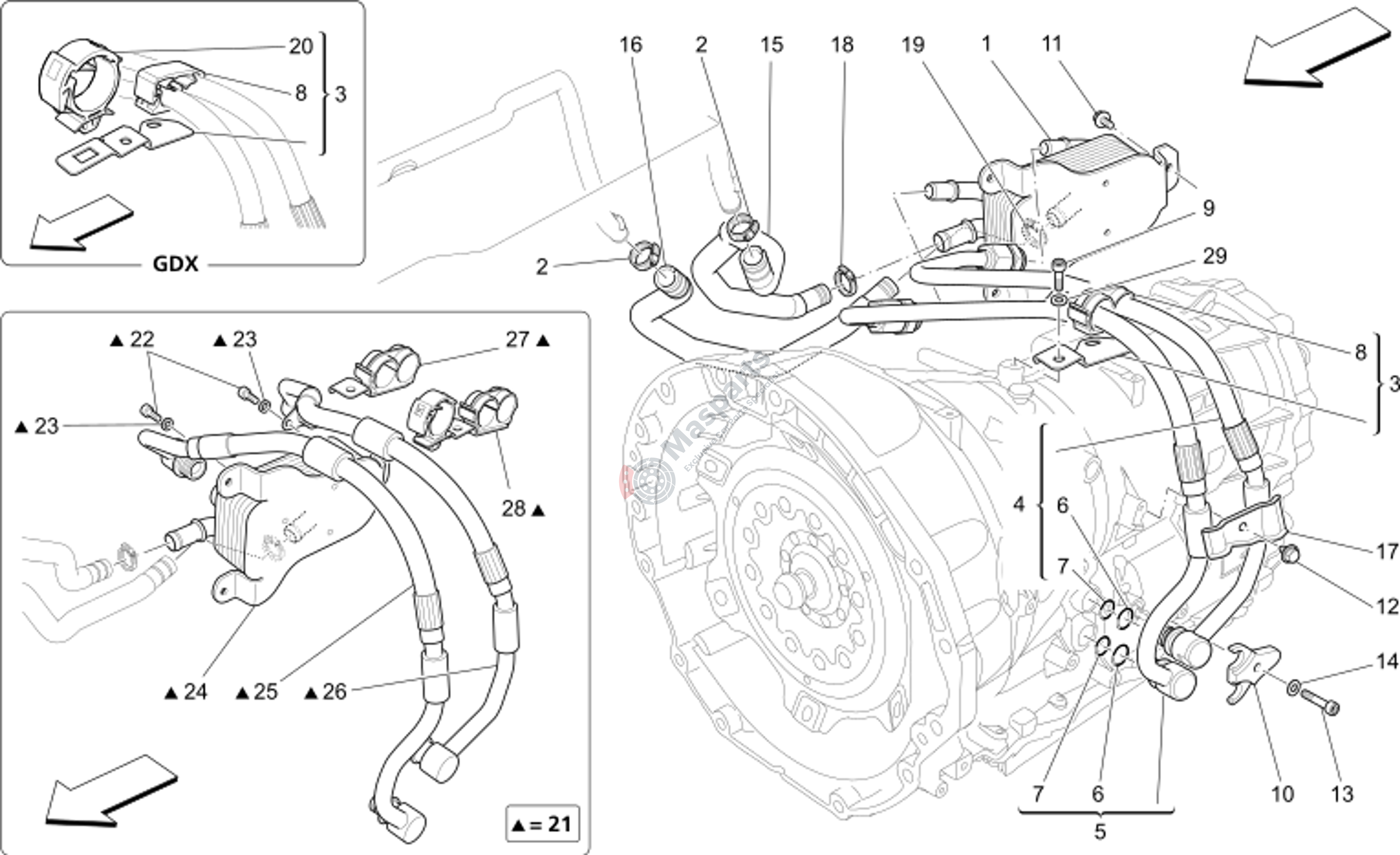

Diagram image not available
The parts list is available below.
Be aware: Two same spot numbers are selected, for example left and right.
| # | S | Part nr | Description | Price | Add |
|---|---|---|---|---|---|
| 2 | M-675000319 | Clip |
€8,24 |
|
|
| 7 | M-670003311 | O-R Gasket |
€0,99 |
|
|
| 9 | M-675000191 | Screw |
€1,76 |
|
|
| 10 | M-670002255 | Oil Pipes Mounting Bracket |
€9,48 |
|
|
| 11 | M-675000365 | Screw |
€2,32 |
|
|
| 12 | M-675000102 | Screw |
€2,31 |
|
|
| 13 | M-675000085 | Screw |
€1,81 |
|
|
| 14 | M-675000099 | Washer |
€1,57 |
|
|
| 15 | M-670007587 | Flex Hose |
€35,98 |
|
|
| 16 | M-670007586 | Water Deliv. Pipe From Eng.T |
€87,55 |
|
|
| 17 | M-670003083 | Bracket |
€7,08 |
|
|
| 18 | M-675000372 | Strap Collar |
€1,56 |
|
|
| 19 | M-675000658 | Snap Collar |
€4,88 |
|
|
| 22 | M-675000191 | Screw |
€1,76 |
|
|
| 23 | M-675000565 | Washer |
€0,98 |
|
|
| 24 | M-670034967 | Gear Box Oil Exchanger |
€164,05 |
|
|
| 25 | M-670218189 | Inlet Gearbox Oil Cooling Fl |
€177,65 |
|
|
| 26 | M-670218190 | Outlet Gearbox Oil Cooling F |
€104,55 |
|
|
| 27 | M-670034963 | Gearbox Oil Flex Hose Fixing |
€32,79 |
|
|
| 29 | M-675000565 | Washer |
€0,98 |
|
