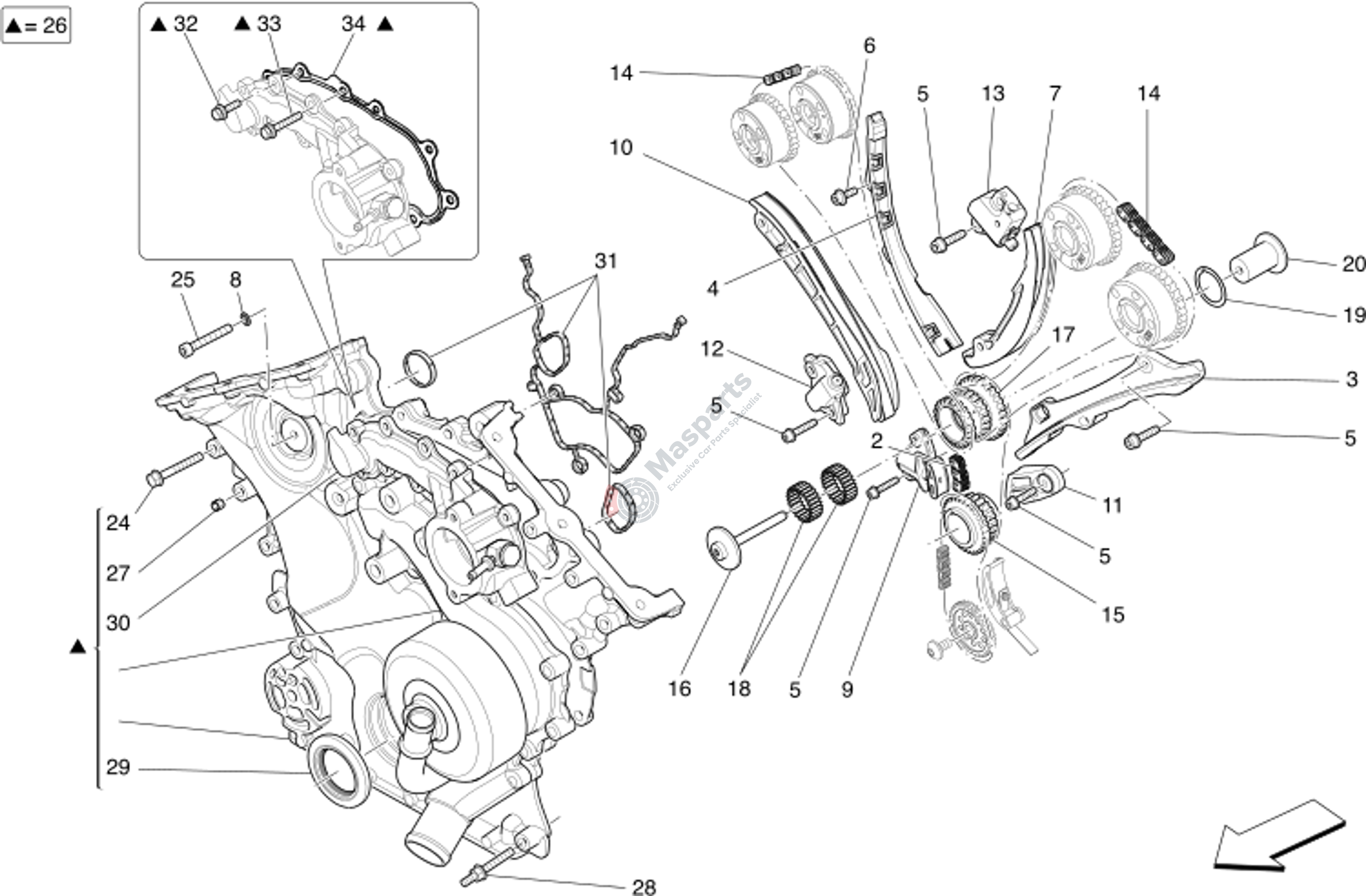

Diagram image not available
The parts list is available below.
Be aware: Two same spot numbers are selected, for example left and right.
| # | S | Part nr | Description | Price | Add |
|---|---|---|---|---|---|
| 2 | M-299481 | Transmission Chain |
€82,20 |
|
|
| 3 | M-323476 | L.H. Fixed Tension |
€26,22 |
|
|
| 4 | M-323474 | R.H. Fixed Tension |
€33,86 |
|
|
| 5 | M-299779 | Screw |
€3,34 |
|
|
| 6 | M-299883 | Screw |
€2,50 |
|
|
| 7 | M-323475 | Lh Mobile Sliding Block (V6) |
€20,79 |
|
|
| 8 | M-216292 | Gasket |
€4,38 |
|
|
| 9 | M-339329 | Cross Pulley |
€106,72 |
|
|
| 10 | M-323473 | R.H. Mobile Guide Shoe |
€26,13 |
|
|
| 11 | M-276581 | Fixed Tension |
€10,40 |
|
|
| 12 | M-339327 | Rh Hydraulic Chain-Tensioner |
€101,20 |
|
|
| 13 | M-339038 | Lh Hydraulic Chain-Tensioner |
€106,72 |
|
|
| 14 | M-276590 | Timing Control Chain |
€65,54 |
|
|
| 15 | M-306852 | Engine Shaft Toothed Wheel |
€107,95 |
|
|
| 16 | M-304376 | Screw |
€14,90 |
|
|
| 17 | M-306851 | Transmission Toothed Wheel |
€107,95 |
|
|
| 18 | M-187742 | Roller Cage |
€12,75 |
|
|
| 19 | M-310102 | Diamond Washer (Turquoise) |
€53,45 |
|
|
| 20 | M-299140 | Support |
€52,62 |
|
|
| 24 | M-291771 | Screw |
€16,84 |
|
|
| 25 | M-14305821 | Screw |
€1,46 |
|
|
| 26 | M-910507 | Cpl Timing Cover V6 Gasoline |
€1.154,30 |
|
|
| 28 | M-300452 | Stud M6X45(M)-M6X10(M) H=4 |
€13,52 |
|
|
| 29 | M-275339 | Gasket (Crank Shaft) |
€26,22 |
|
|
| 31 | M-673010776 | Kit Of Gaskets Front Cover A |
€51,89 |
|
|
| 32 | M-291776 | Screw |
€3,34 |
|
|
| 33 | M-291771 | Screw |
€16,84 |
|
|
| 34 | M-280912 | Gasket (Crossover) |
€16,28 |
|
