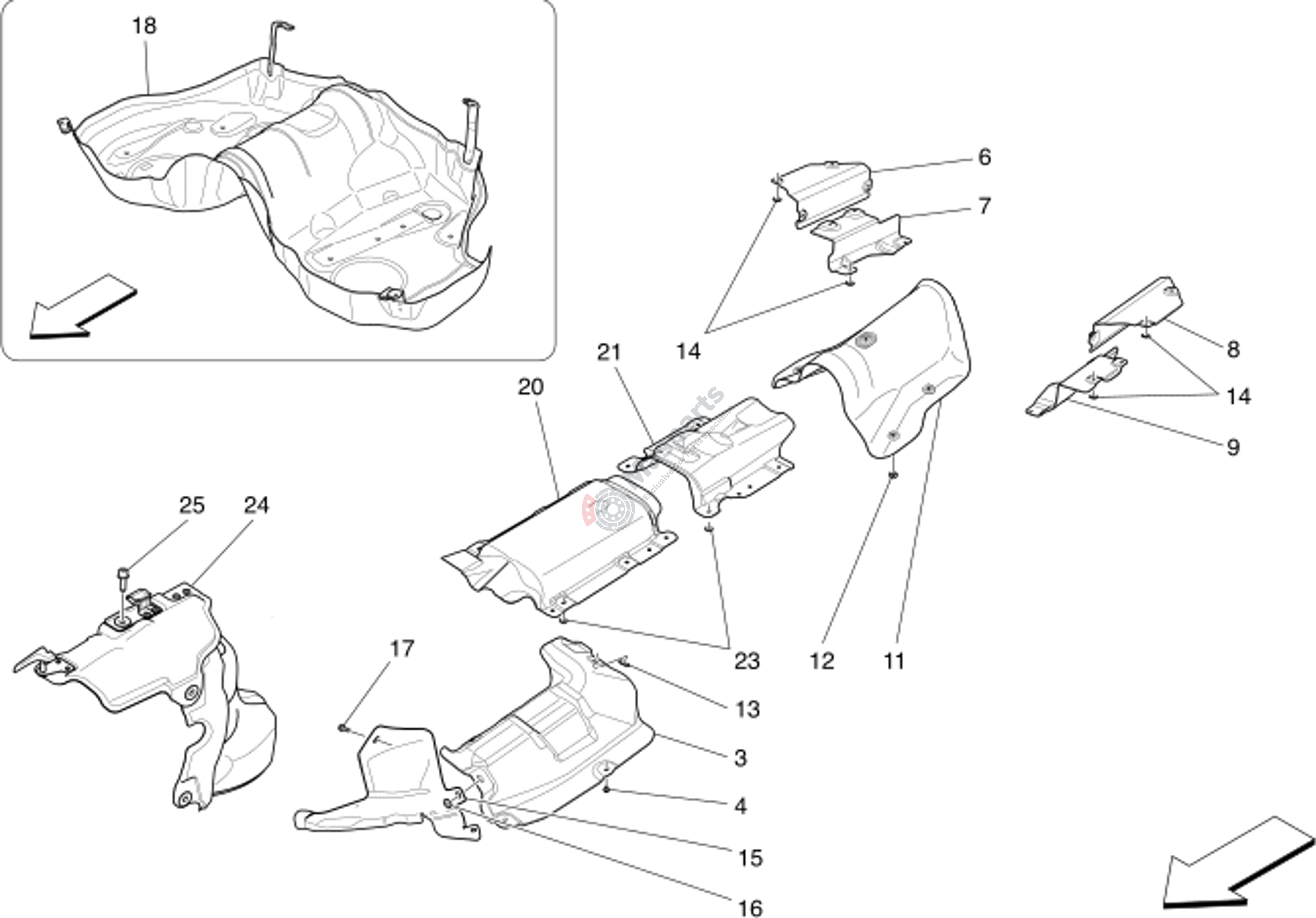

The parts list is available below.
Be aware: Two same spot numbers are selected, for example left and right.
| # | S | Part nr | Description | Price | Add |
|---|---|---|---|---|---|
| 3 | M-670160340 | L.H.Silencer Heat Shield |
$40.65 |
|
|
| 4 | M-675000136 | Screw |
$2.36 |
|
|
| 6 | M-670004545 | Rear R.H. Heat Shield |
$24.96 |
|
|
| 7 | M-670004544 | Rear R.H. Heat Shield |
$26.38 |
|
|
| 8 | M-670004542 | Rear L.H. Heat Shield |
$24.96 |
|
|
| 9 | M-670004543 | Rear L.H. Heat Shield |
$26.19 |
|
|
| 11 | M-670037228 | Tank Heat Shield |
$86.27 |
|
|
| 12 | M-670003758 | Fixing Button |
$2.92 |
|
|
| 13 | M-675000047 | Washer |
$5.83 |
|
|
| 14 | M-675000047 | Washer |
$5.83 |
|
|
| 15 | M-670106027 | Shield |
$35.61 |
|
|
| 16 | M-675000047 | Washer |
$5.83 |
|
|
| 17 | M-675000136 | Screw |
$2.36 |
|
|
| 18 | M-670157367 | Heat Cover |
$318.52 |
|
|
| 20 | M-670154550 | Front Drive Shaft Guard |
$61.99 |
|
|
| 21 | M-670154551 | Transmission Shaft Central P |
$368.92 |
|
|
| 23 | M-675000047 | Washer |
$5.83 |
|
|
| 24 | M-670154504 | Heat Shield |
$33.57 |
|
|
| 25 | M-675000088 | Screw |
$2.68 |
|
