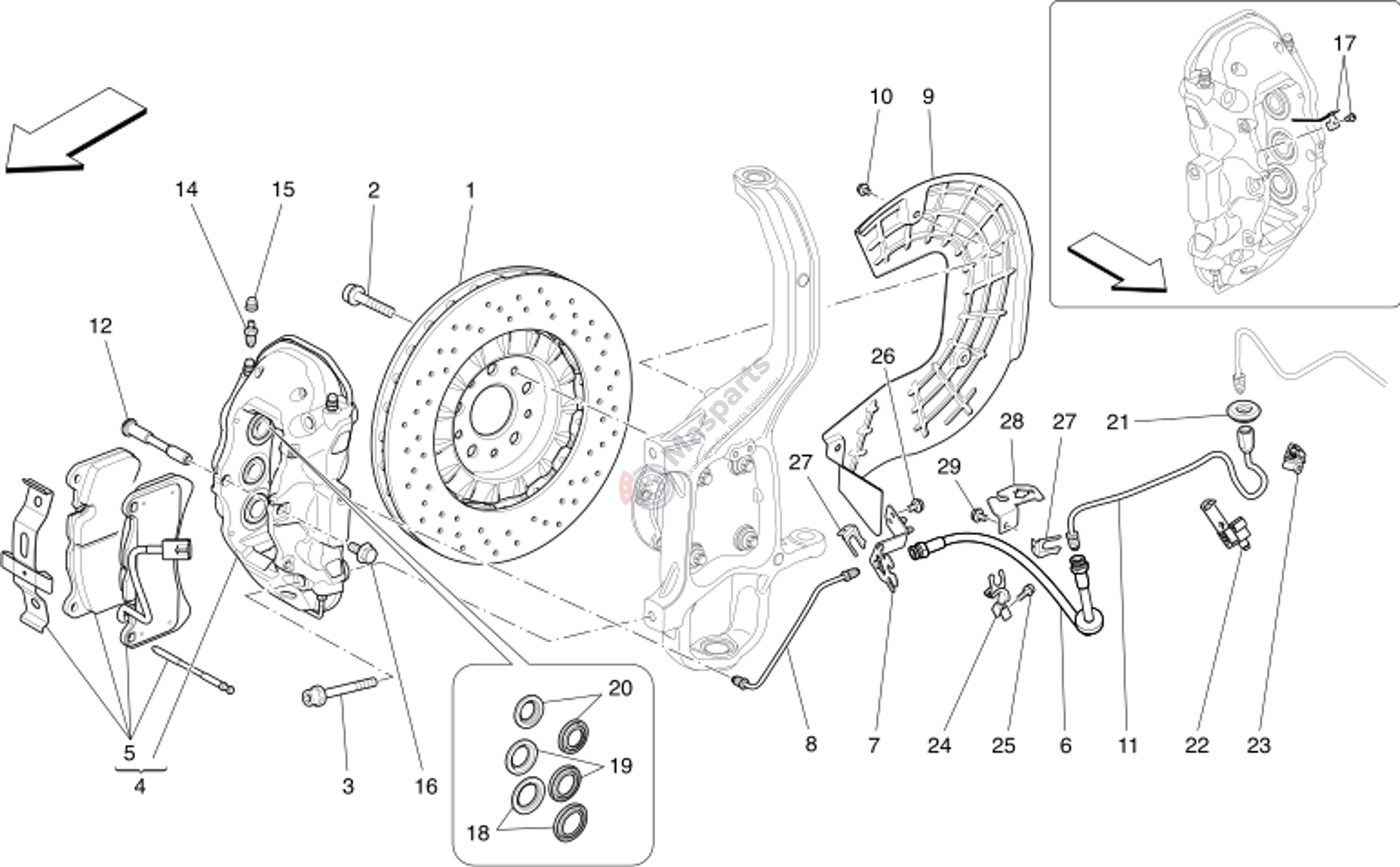

Diagram image not available
The parts list is available below.
Be aware: Two same spot numbers are selected, for example left and right.
| # | S | Part nr | Description | Price | Add |
|---|---|---|---|---|---|
| 1 | M-670030935 |
Front Brake Disc (Middle System)
|
$267.35 |
|
|
| 2 | M-675000081 |
Screw
|
$4.95 |
|
|
| 3 | M-670005714 | Screw |
$6.61 |
|
|
| 6 | M-670155387 | Flexible Hose For Front Brak |
$15.95 |
|
|
| 7 | M-670001817 | Right Front Flexible Brake P |
$4.46 |
|
|
| 8 | M-670001794 | R.H. Front Caliper Rigid Pip |
$14.86 |
|
|
| 9 | M-675000067 | R.H. Front Brake Disc Shield |
$6.91 |
|
|
| 10 | M-675000126 | Screw |
$1.62 |
|
|
| 11 | M-670039841 | Pipe |
$24.87 |
|
|
| 12 | M-198015 | Tie Rod |
$50.90 |
|
|
| 14 | M-152954 | Bleeding Screw |
$39.34 |
|
|
| 15 | M-215666 | Cap |
$26.69 |
|
|
| 16 | M-198014 | Screw |
$21.98 |
|
|
| 17 | M-673000054 | Bracket And Screw |
$48.10 |
|
|
| 18 | M-182121 | Cap |
$74.67 |
|
|
| 19 | M-215664 | Cap |
$51.22 |
|
|
| 20 | M-215663 | Cap |
$51.22 |
|
|
| 21 | M-675000281 | Gasket On Pillar |
$3.35 |
|
|
| 22 | M-670039674 | Clip |
$2.39 |
|
|
| 23 | M-675000272 | Retaining Clip |
$5.01 |
|
|
| 24 | M-670007373 | Bracket |
$8.63 |
|
|
| 25 | M-675000126 | Screw |
$1.62 |
|
|
| 26 | M-675000126 | Screw |
$1.62 |
|
|
| 27 | M-675000276 | Plate |
$0.94 |
|
|
| 28 | M-670037128 | Rh Brake Pipe Bracket |
$3.61 |
|
|
| 29 | M-675000621 | Screw (M6X18) |
$0.87 |
|
