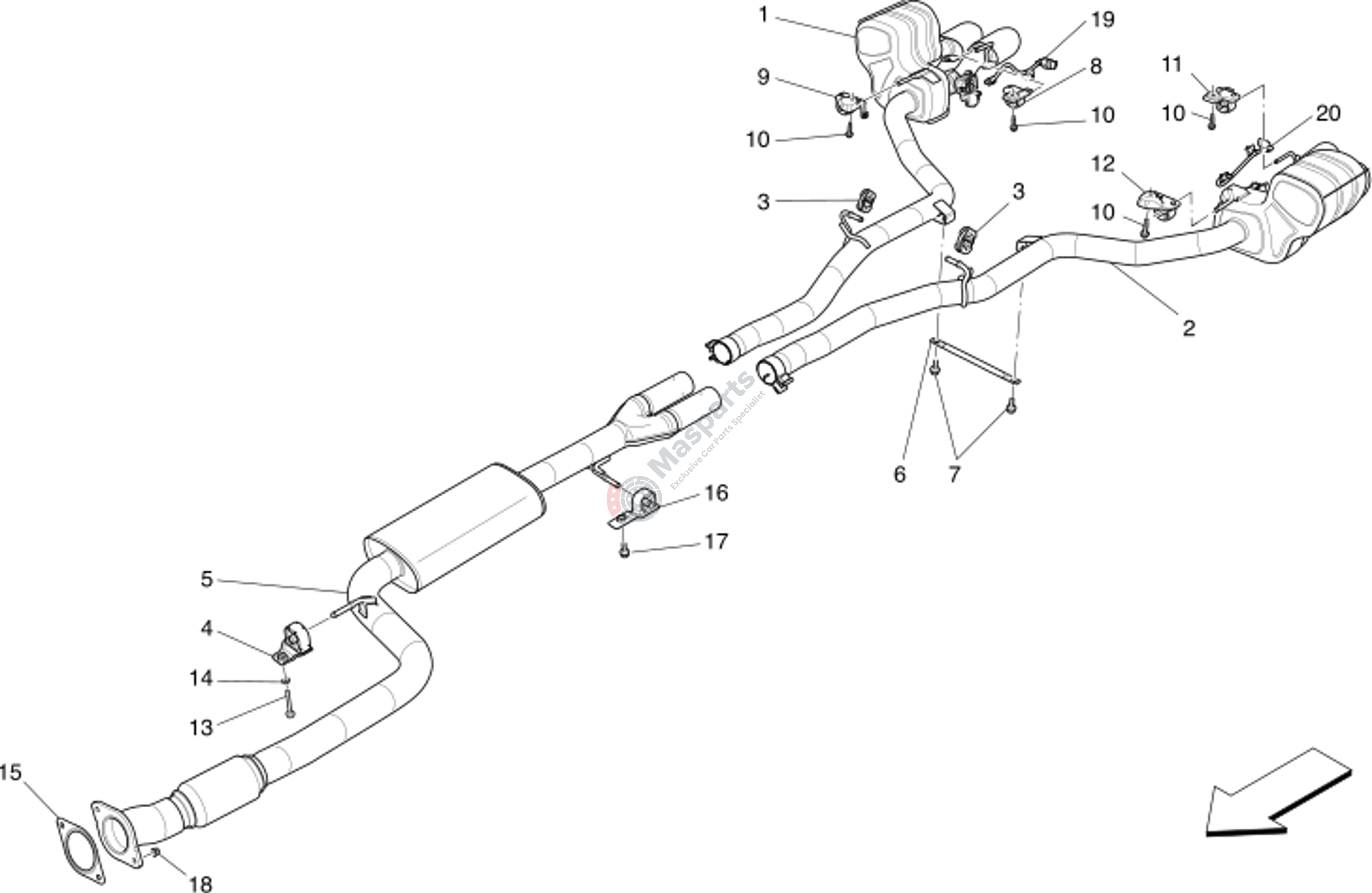

Diagram image not available
The parts list is available below.
Be aware: Two same spot numbers are selected, for example left and right.
| # | S | Part nr | Description | Price | Add |
|---|---|---|---|---|---|
| 3 | M-675001949 | Small Block |
$18.24 |
|
|
| 4 | M-670001494 | Central Support |
$36.36 |
|
|
| 5 | M-670220120 | Central Silencer |
$675.41 |
|
|
| 6 | M-670005639 | Spacer |
$41.88 |
|
|
| 7 | M-675000463 | Screw |
$1.78 |
|
|
| 8 | M-670005370 | Rh Rear Bracket |
$125.12 |
|
|
| 9 | M-670001529 | Right Centre Counter-Bracket |
$19.46 |
|
|
| 10 | M-675000041 | Screw |
$1.69 |
|
|
| 11 | M-670005426 | Lh Rear Bracket |
$125.12 |
|
|
| 12 | M-670005426 | Lh Rear Bracket |
$125.12 |
|
|
| 13 | M-675000196 | Screw |
$2.09 |
|
|
| 14 | M-675000089 | Washer |
$0.98 |
|
|
| 15 | M-675000997 | Gasket |
$10.16 |
|
|
| 16 | M-670034469 | Central Muffler Fastening Br |
$32.04 |
|
|
| 17 | M-675000487 | Screw Tc/Ie M8X20 Ros.P.Imp. |
$1.47 |
|
|
| 18 | M-675000091 | Nut |
$1.28 |
|
|
| 19 | M-670175026 | By-Pass Valve Wiring |
$322.12 |
|
|
| 20 | M-670175027 | By-Pass Valve Wiring |
$328.07 |
|
