Diagram image not available

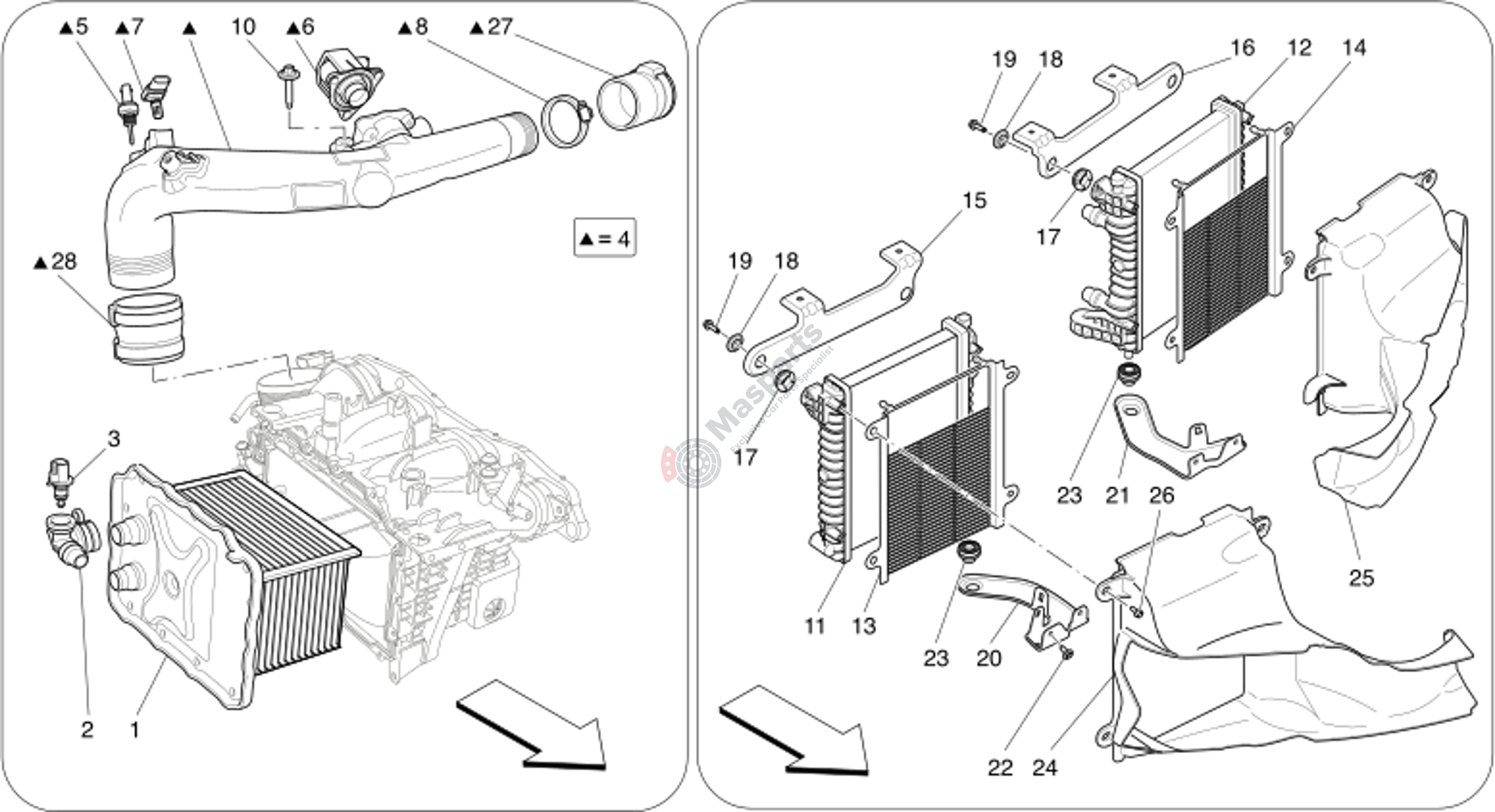

The parts list is available below.
Be aware: Two same spot numbers are selected, for example left and right.
| # | S | Part nr | Description | Price | Add |
|---|---|---|---|---|---|
| 2 | M-673013310 | Kit Sensor Housing And Screw |
$439.88 |
|
|
| 3 | M-675000985 | Temperature Sensor |
$20.48 |
|
|
| 5 | M-675000990 | Air Temperature Sensor |
$81.49 |
|
|
| 6 | M-675000991 | Valve |
$312.99 |
|
|
| 7 | M-675000992 | Pressure Sensor |
$392.68 |
|
|
| 8 | M-675000993 | Clamp |
$28.05 |
|
|
| 10 | M-675000986 | Screw |
$1.89 |
|
|
| 11 | M-675001056 | Intercooler |
$272.54 |
|
|
| 12 | M-675001057 | Engine Intercool Radiator |
$309.14 |
|
|
| 13 | M-675001083 | Front Rh Grille |
$42.95 |
|
|
| 14 | M-675001082 | Front Lh Grille |
$42.95 |
|
|
| 15 | M-670154661 | Radiator Support Bracket |
$26.74 |
|
|
| 16 | M-670154663 | Radiator Support Bracket |
$26.92 |
|
|
| 17 | M-675000201 | Small Block. |
$9.23 |
|
|
| 18 | M-675000409 | Washer |
$2.44 |
|
|
| 19 | M-675001048 | Screw |
$0.70 |
|
|
| 20 | M-670154665 | Bracket |
$25.54 |
|
|
| 21 | M-670154667 | Bracket |
$25.54 |
|
|
| 22 | M-675000087 | Screw |
$3.50 |
|
|
| 23 | M-675000545 | Rubber Bushing |
$2.80 |
|
|
| 24 | M-670154602 | Rh Side Air Duct |
$56.06 |
|
|
| 25 | M-670154603 | Lh Side Air Duct |
$56.06 |
|
|
| 26 | M-675000354 | Screw |
$2.67 |
|
