Diagram image not available

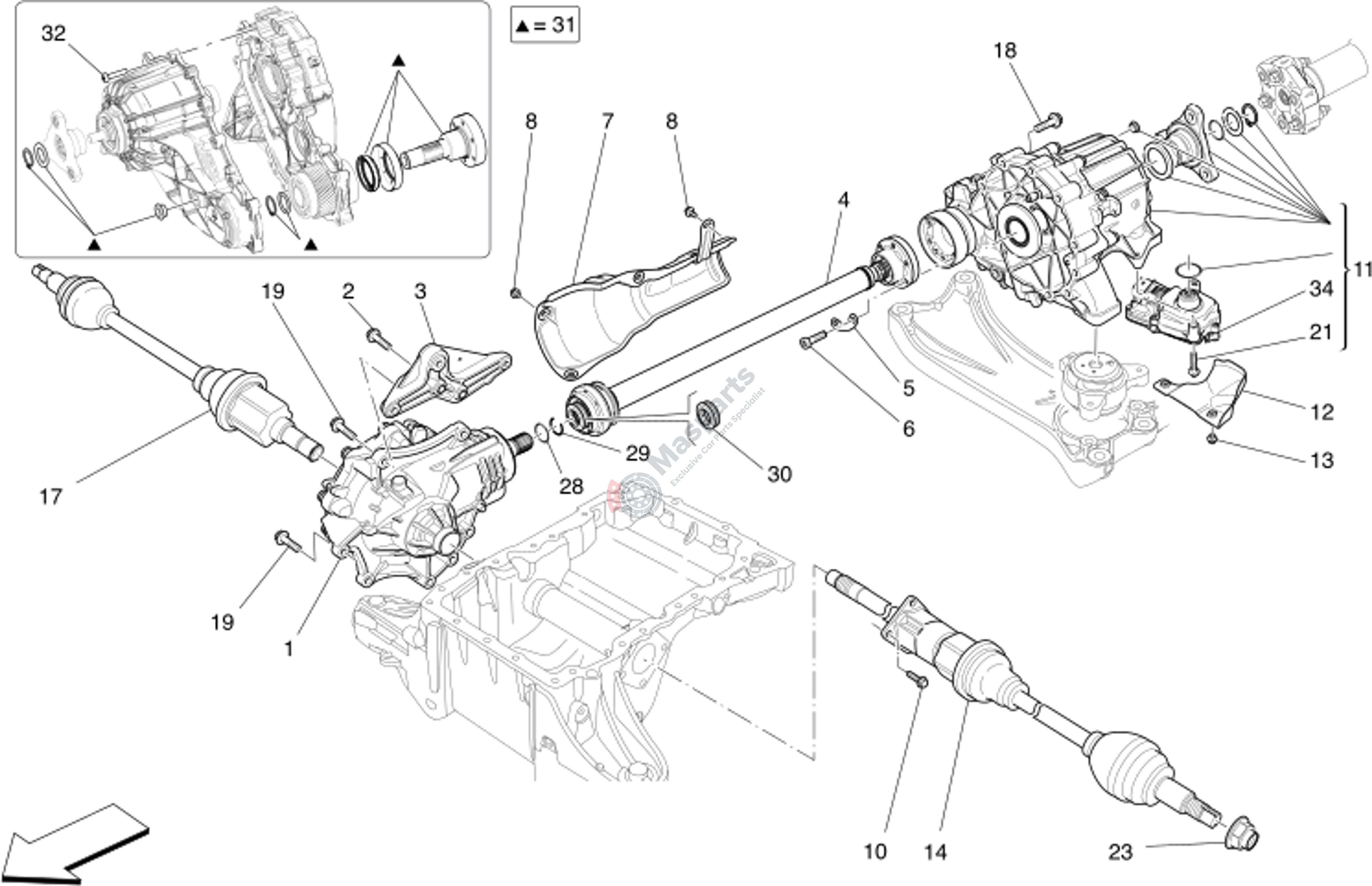

The parts list is available below.
Be aware: Two same spot numbers are selected, for example left and right.
| # | S | Part nr | Description | Price | Add |
|---|---|---|---|---|---|
| 1 | M-670038421 | Front Differential Unit |
€1.410,36 |
|
|
| 2 | M-14306534 | Screw |
€2,09 |
|
|
| 3 | M-768641 | Differential Fastening Brack |
€158,24 |
|
|
| 4 | M-670107694 | Front Drive Shaft |
€644,00 |
|
|
| 5 | M-670003772 | Plate |
€3,13 |
|
|
| 6 | M-675000583 | Screw |
€2,09 |
|
|
| 7 | M-670153213 | Heat Shield |
€49,20 |
|
|
| 8 | M-675000102 | Screw |
€2,24 |
|
|
| 10 | M-675000384 | Screw |
€4,38 |
|
|
| 11 | M-670152725 | Transfer Case Module |
€1.805,04 |
|
|
| 12 | M-670004015 | Heat Shield |
€24,29 |
|
|
| 13 | M-675000102 | Screw |
€2,24 |
|
|
| 14 | M-670032034 | Lh Axle Shaft Assembly |
€762,68 |
|
|
| 17 | M-670035142 | Rh Axle Shaft |
€774,64 |
|
|
| 18 | M-675000386 | Screw |
€3,18 |
|
|
| 19 | M-675000385 | Screw |
€3,14 |
|
|
| 21 | M-673009049 | Hexalobular Screw |
€4,88 |
|
|
| 23 | M-675000138 | Nut |
€7,54 |
|
|
| 28 | M-673008007 | O-Ring |
€4,38 |
|
|
| 29 | M-673008008 | Snap-Ring |
€4,78 |
|
|
| 30 | M-675000719 | Gasket |
€2,39 |
|
|
| 34 | M-670033135 | Awd Control Unit (Ita Module |
€582,36 |
|
