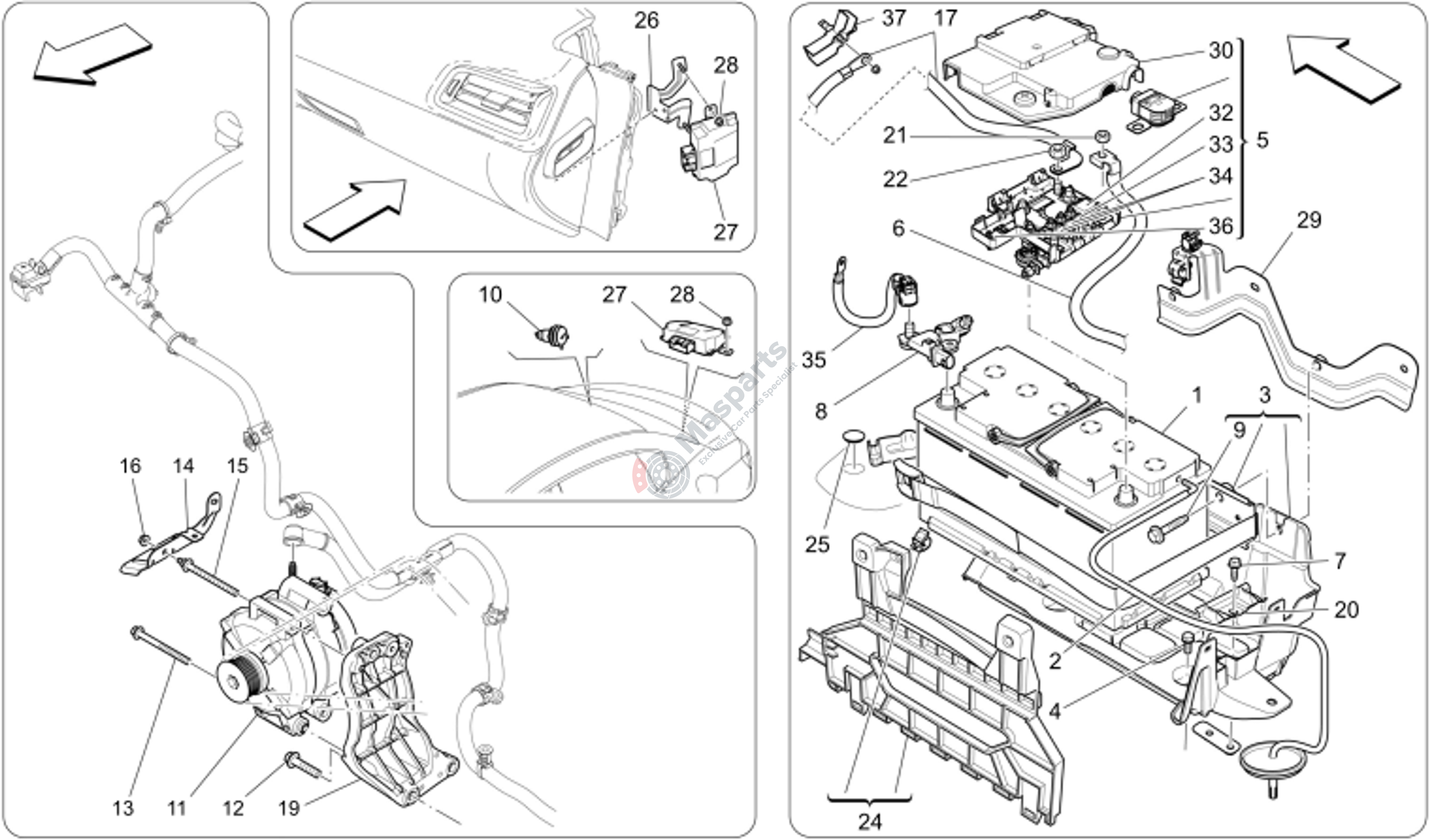

The parts list is available below.
Be aware: Two same spot numbers are selected, for example left and right.
| # | S | Part nr | Description | Price | Add |
|---|---|---|---|---|---|
| 2 | M-670008109 | Hose |
$20.13 |
|
|
| 3 | M-675000297 | Cpl Battery Rack |
$83.24 |
|
|
| 4 | M-675000174 | Screw |
$1.65 |
|
|
| 5 | M-670105054 | Battery Multi-Function Ecu |
$147.70 |
|
|
| 6 | M-670006554 | Battery Positive Cable |
$30.30 |
|
|
| 7 | M-675000088 | Screw |
$2.62 |
|
|
| 8 | M-670107365 | Ibs Sensor |
$104.77 |
|
|
| 9 | M-675000214 | Screw |
$24.98 |
|
|
| 11 | M-675000572 | Alternator |
$1,278.83 |
|
|
| 12 | M-46328717 | Flange Bolt |
$2.94 |
|
|
| 13 | M-46328708 | Flange Bolt |
$3.67 |
|
|
| 14 | M-46335063 | Bracket |
$25.04 |
|
|
| 15 | M-46328332 | Stud |
$8.80 |
|
|
| 16 | M-673001154 | Flange Nut |
$1.50 |
|
|
| 17 | M-670037066 | Battery Positive Pole Cable |
$319.22 |
|
|
| 19 | M-46328300 | Bracket |
$71.65 |
|
|
| 20 | M-675000426 | Battery Bracket |
$6.50 |
|
|
| 21 | M-675000439 | Nut |
$3.68 |
|
|
| 22 | M-675000450 | Nut |
$4.52 |
|
|
| 24 | M-670101074 | Bracket |
$15.67 |
|
|
| 25 | M-675000244 | Plug |
$0.98 |
|
|
| 26 | M-670007262 | Bracket |
$17.17 |
|
|
| 27 | M-675000786 | Voltage Stabilizer |
$222.07 |
|
|
| 28 | M-675000095 | Nut |
$0.77 |
|
|
| 29 | M-670031002 | Battery Compartment Bracket |
$28.25 |
|
|
| 30 | M-675000806 | Fuse Ecu Cover |
$13.39 |
|
|
| 32 | M-673002762 | 175A Mega-Fuse (Battery Ctr. |
$7.73 |
|
|
| 33 | M-673002763 | 30A Midi-Fuse (Battery Ctr. |
$3.37 |
|
|
| 34 | M-673002764 | 40A Midi-Fuse (Battery Ctr. |
$3.25 |
|
|
| 35 | M-670109171 | Battery Negative Pole Cable |
$35.35 |
|
|
| 36 | M-673003650 | Fuse-Puller |
$1.71 |
|
|
| 37 | M-675000578 | Connector |
$23.66 |
|
