Diagram image not available

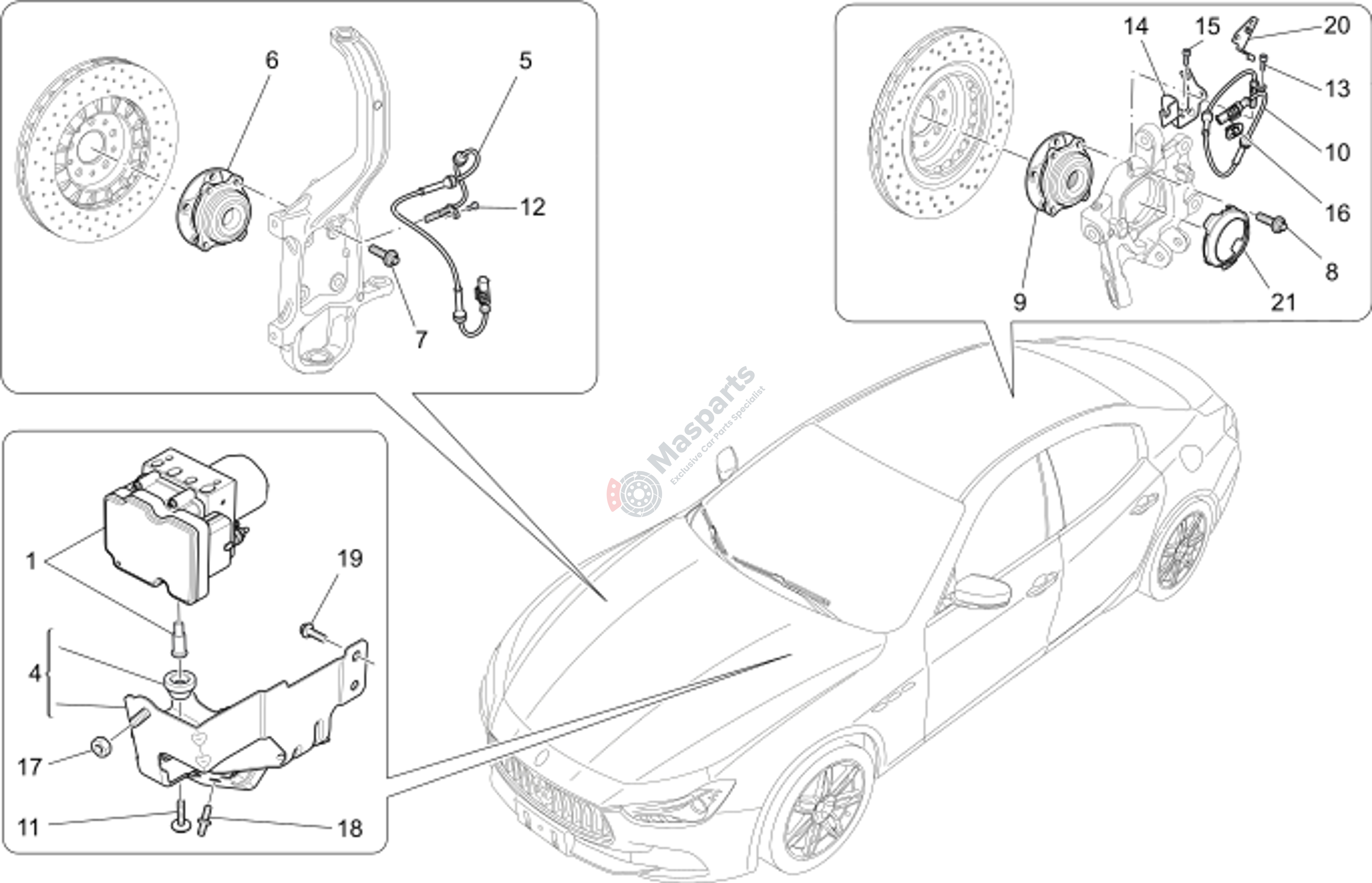

The parts list is available below.
Be aware: Two same spot numbers are selected, for example left and right.
| # | S | Part nr | Description | Price | Add |
|---|---|---|---|---|---|
| 4 | M-670032075 | Hydraulic System Fixing Brac |
$36.01 |
|
|
| 5 | M-670037273 | Front Abs Sensor |
$48.13 |
|
|
| 6 | M-675000062 | Complete Front Bearing Wheel |
$394.83 |
|
|
| 7 | M-670006981 | Screw |
$5.59 |
|
|
| 8 | M-670035429 | Screw |
$4.96 |
|
|
| 9 | M-670103668 | Bearing Wheel Assembly |
$271.50 |
|
|
| 10 | M-670035289 | Rear Abs Sensor |
$34.16 |
|
|
| 11 | M-675000156 | Screw |
$3.16 |
|
|
| 12 | M-675000173 | Screw |
$1.99 |
|
|
| 13 | M-675000173 | Screw |
$1.99 |
|
|
| 15 | M-675000173 | Screw |
$1.99 |
|
|
| 16 | M-675000355 | Clip |
$0.97 |
|
|
| 18 | M-675000430 | Screw |
$2.40 |
|
|
| 19 | M-675000387 | Screw |
$1.84 |
|
|
| 20 | M-670036875 | Rh Cable Bracket |
$24.68 |
|
|
| 21 | M-670037587 | Bearing Shelter |
$3.51 |
|
