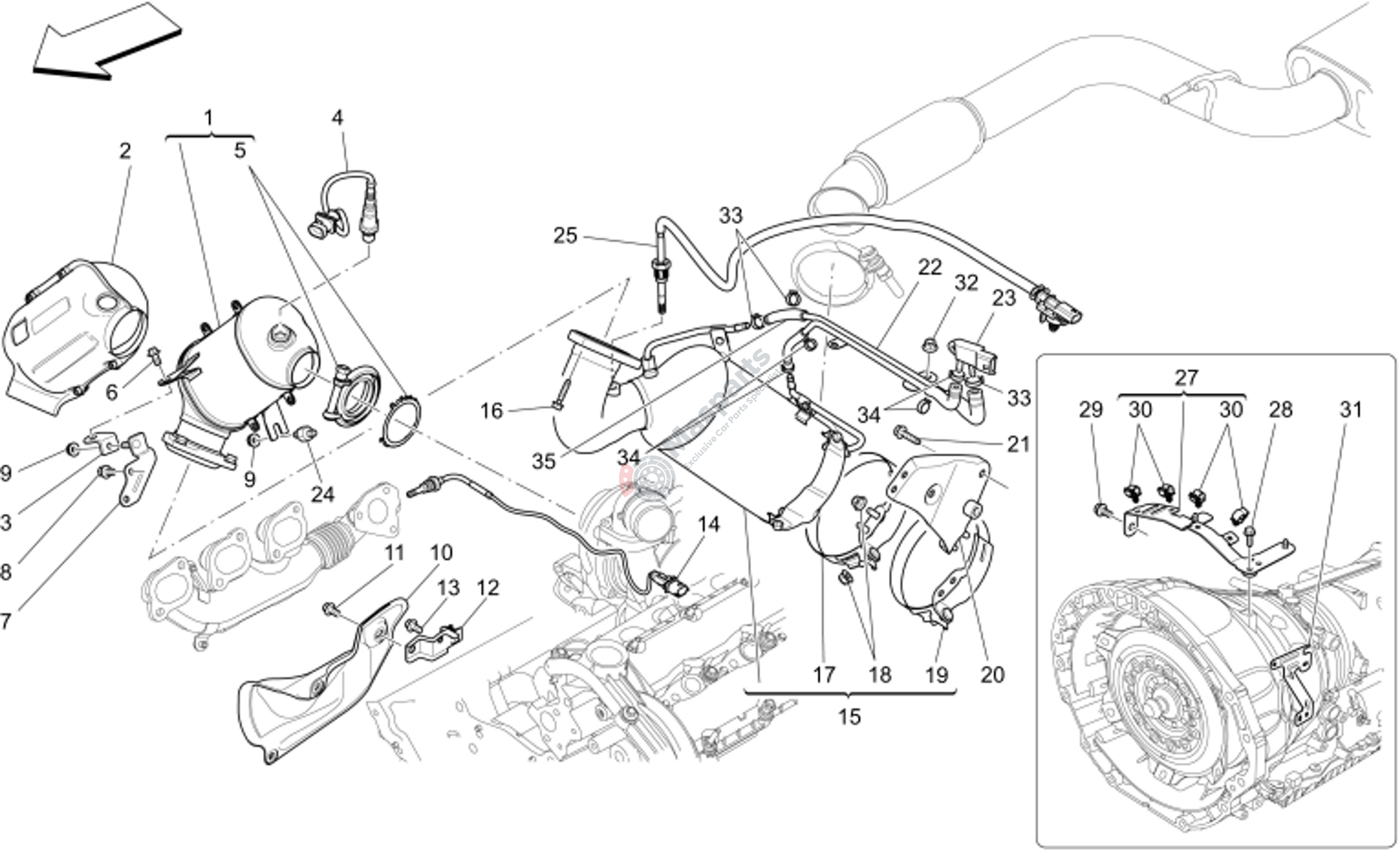

The parts list is available below.
Be aware: Two same spot numbers are selected, for example left and right.
| # | S | Part nr | Description | Price | Add |
|---|---|---|---|---|---|
| 1 | M-670031098 | Catalytic Converter |
$2,788.99 |
|
|
| 2 | M-46328767 | Cat. Cover |
$139.68 |
|
|
| 3 | M-46328329 | Support Bracket |
$27.52 |
|
|
| 4 | M-46328330 | Sensore Gas Scarico |
$681.09 |
|
|
| 5 | M-670034503 | V-Clamp |
$79.94 |
|
|
| 6 | M-46328732 | Vite Flangiata |
$2.92 |
|
|
| 7 | M-46328279 | Support Bracket |
$28.35 |
|
|
| 8 | M-46328697 | Flange Bolt |
$2.19 |
|
|
| 9 | M-675000566 | Self Lock Nut Flange |
$2.81 |
|
|
| 10 | M-46328344 | Guard |
$178.24 |
|
|
| 11 | M-46328698 | Flange Bolt |
$2.50 |
|
|
| 12 | M-46328260 | Bracket |
$6.57 |
|
|
| 13 | M-46328697 | Flange Bolt |
$2.19 |
|
|
| 14 | M-46333806 | Exhaust Gas Temperature Sens |
$220.21 |
|
|
| 15 | M-670108383 | Ccdpf Hot-End Cpl Filter |
$3,497.80 |
|
|
| 16 | M-675000540 | Screw M8X40 |
$1.77 |
|
|
| 17 | M-670007005 | Bracket |
$126.13 |
|
|
| 18 | M-675000091 | Nut |
$1.26 |
|
|
| 19 | M-670006143 | Bracket |
$126.13 |
|
|
| 20 | M-670006142 | Braket |
$56.20 |
|
|
| 22 | M-670102977 | Dpf Pipe |
$83.01 |
|
|
| 23 | M-675000335 | Delta-Pressure Sensor |
$84.18 |
|
|
| 24 | M-46328278 | Catalytic Conv. Fastening St |
$31.47 |
|
|
| 25 | M-670009039 | Dpf Temp.Sensor |
$151.03 |
|
|
| 27 | M-670009383 | Diff.Pressure Sensor Bracket |
$40.55 |
|
|
| 28 | M-675000509 | Screw |
$1.25 |
|
|
| 29 | M-675000510 | Screw |
$1.45 |
|
|
| 30 | M-670009081 | Fastening Clip |
$9.97 |
|
|
| 31 | M-670006413 | Temp. Sensor Cable Bracket |
$11.99 |
|
|
| 32 | M-675000448 | Nut |
$1.42 |
|
|
| 33 | M-675000369 | Strap Collar |
$1.68 |
|
|
| 34 | M-675000368 | Strap Collar |
$1.91 |
|
|
| 35 | M-673005302 | Dpf-Side Inlet Siliconic Hos |
$7.05 |
|
