Diagram image not available

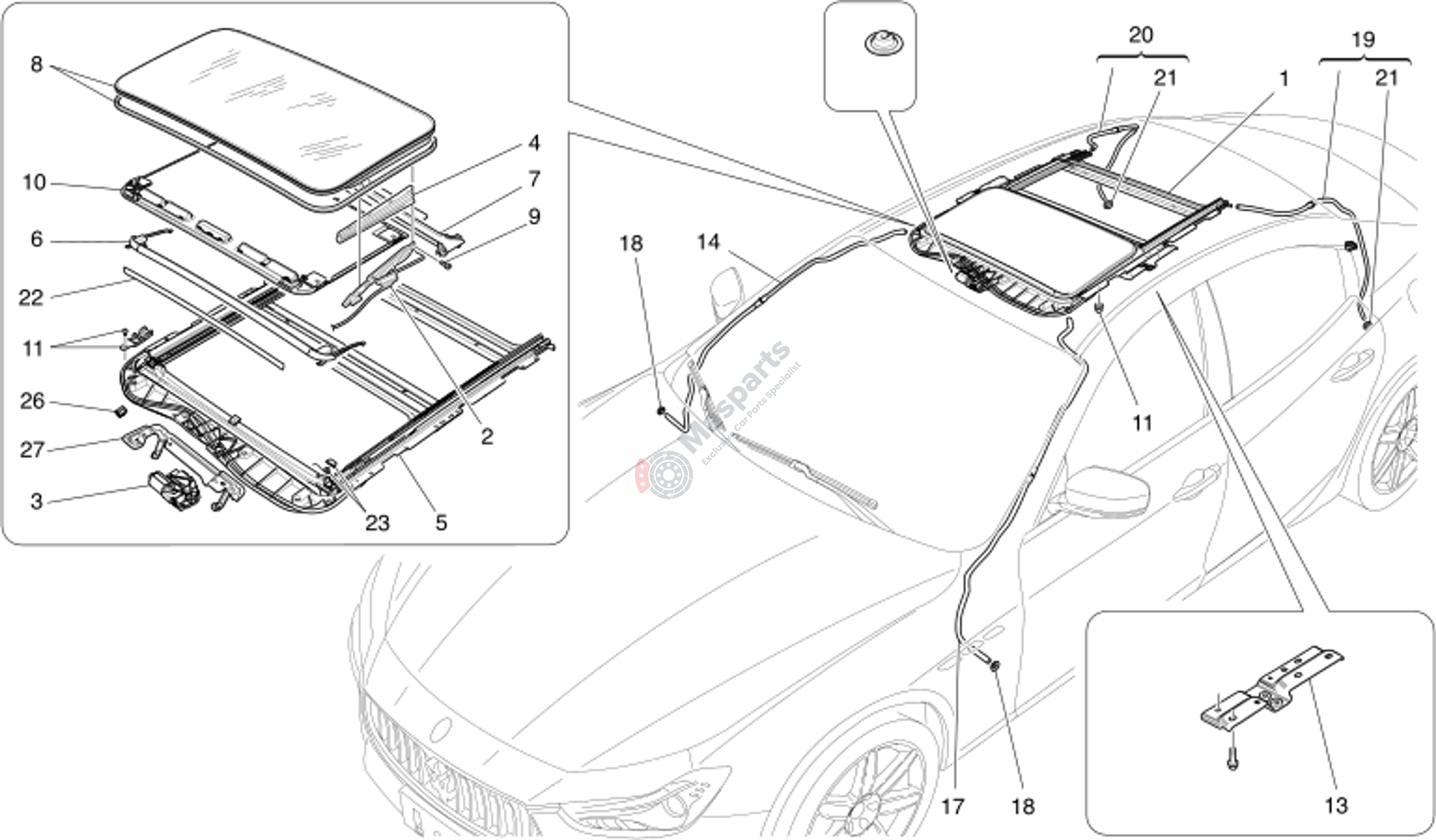

The parts list is available below.
Be aware: Two same spot numbers are selected, for example left and right.
| # | S | Part nr | Description | Price | Add |
|---|---|---|---|---|---|
| 2 | M-980139303 | Rh Mechanism 6109734A |
$132.95 |
|
|
| 3 | M-673000063 | Gearmotor 6113336A |
$397.99 |
|
|
| 4 | M-980139306 | Rh Mechanism Guard 6109725A |
$52.42 |
|
|
| 5 | M-673008102 | Sunroof Frame |
$1,078.99 |
|
|
| 6 | M-673000051 | Deflector 6113337A |
$194.57 |
|
|
| 7 | M-980139310 | Sunroof Guide Rail Assembly |
$63.33 |
|
|
| 8 | M-673009009 | Complete Glass |
$925.34 |
|
|
| 9 | M-980139314 | Glass Fastening Screw 610973 |
$28.81 |
|
|
| 11 | M-673000442 | Fastening Clips Kit |
$24.46 |
|
|
| 13 | M-670030311 | Support Sunroof Rt Bracket |
$19.57 |
|
|
| 14 | M-670003339 | Pipe For Water Outlet |
$37.05 |
|
|
| 17 | M-670003340 | Pipe For Water Outlet |
$34.32 |
|
|
| 18 | M-670031349 | Plug |
$4.68 |
|
|
| 19 | M-670031338 | Lh Rear Water Pipe |
$75.67 |
|
|
| 20 | M-670031337 | Rh Rear Water Pipe |
$75.67 |
|
|
| 21 | M-670005386 | Rubber |
$7.36 |
|
|
| 22 | M-670102014 | Adhesive Flap Sticker Sunroo |
$13.83 |
|
|
| 23 | M-673009181 | Clamps With Plastic Cover |
$61.32 |
|
|
| 27 | M-670159319 | Upholstery Bracket |
$42.86 |
|
