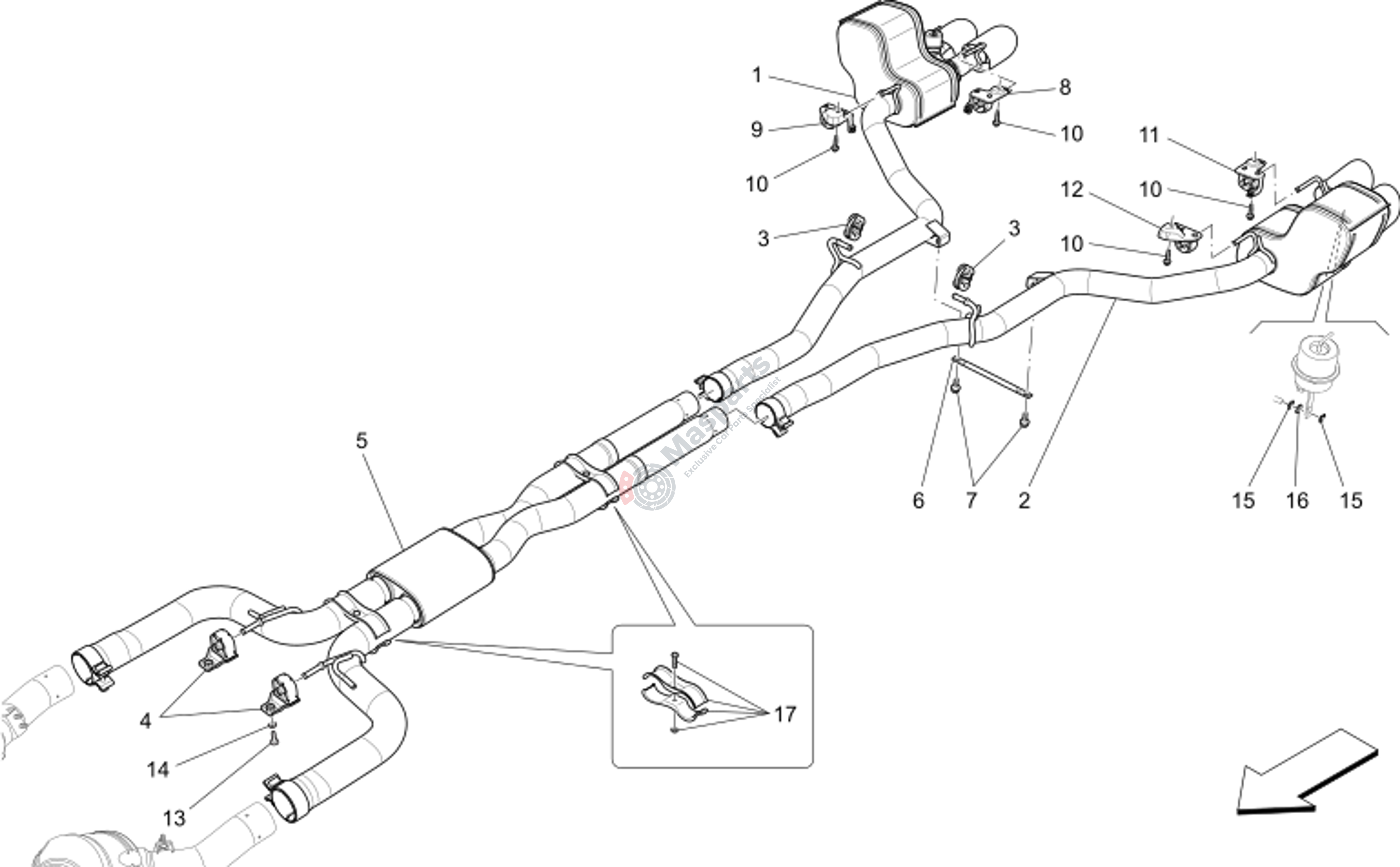

Diagram image not available
The parts list is available below.
Be aware: Two same spot numbers are selected, for example left and right.
| # | S | Part nr | Description | Price | Add |
|---|---|---|---|---|---|
| 3 | M-675001949 | Small Block |
$18.28 |
|
|
| 4 | M-670001494 | Central Support |
$36.45 |
|
|
| 6 | M-670005639 | Spacer |
$41.99 |
|
|
| 7 | M-675000463 | Screw |
$1.79 |
|
|
| 8 | M-670005370 | Rh Rear Bracket |
$125.44 |
|
|
| 9 | M-670001529 | Right Centre Counter-Bracket |
$19.51 |
|
|
| 10 | M-675000041 | Screw |
$1.69 |
|
|
| 11 | M-670005426 | Lh Rear Bracket |
$125.44 |
|
|
| 12 | M-670001528 | Left Centre Counter-Bracket |
$19.51 |
|
|
| 14 | M-675000089 | Washer |
$0.98 |
|
|
| 15 | M-673003135 | Lock Ring |
$86.97 |
|
|
| 16 | M-673003136 | Elastic Washer |
$91.56 |
|
|
| 17 | M-673003961 | Central Silencer Kit |
$89.46 |
|
