The parts list is available below.
Be aware: Two same spot numbers are selected, for example left and right.

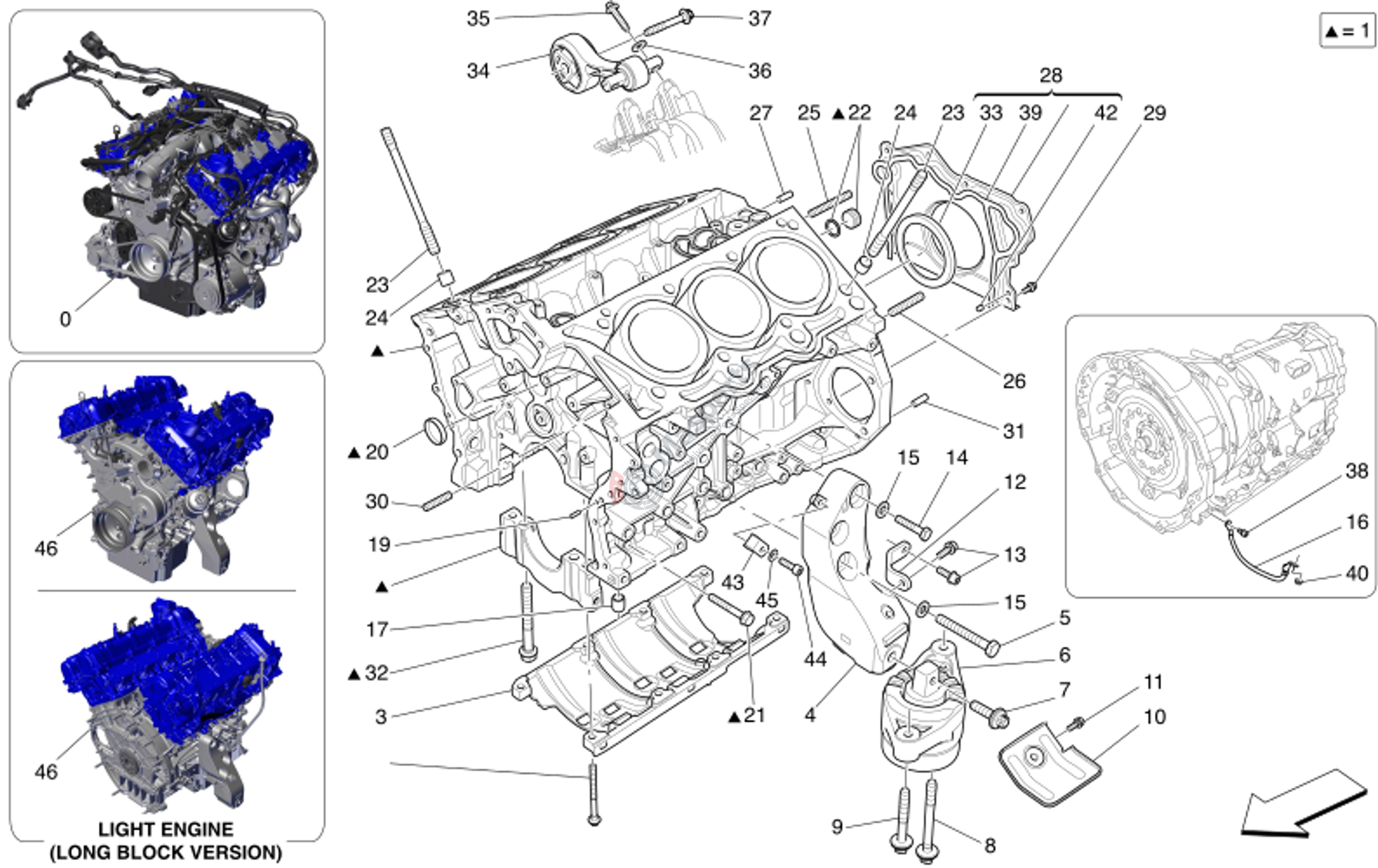

| # | S | Part nr | Description | Price | Add |
|---|---|---|---|---|---|
| 1 | M-767001 | V6 Crackshaft Cpl Supports ( |
$5,661.95 |
|
|
| 3 | M-275361 | Shield |
$77.45 |
|
|
| 4 | M-336971 | Rh Engine Mounting Bracket |
$308.29 |
|
|
| 5 | M-15971334 | Screw |
$3.93 |
|
|
| 6 | M-670175584 | Rh Engine Side Plug |
$216.86 |
|
|
| 7 | M-670003759 | Screw |
$6.71 |
|
|
| 8 | M-670103084 | Screw And Washer |
$3.08 |
|
|
| 9 | M-670103084 | Screw And Washer |
$3.08 |
|
|
| 12 | M-289475 | Rh Bracket |
$14.61 |
|
|
| 13 | M-231628 | Screw |
$2.46 |
|
|
| 14 | M-11288034 | Screw |
$5.04 |
|
|
| 15 | M-11190574 | Tapered Rubber Washer 10.5-2 |
$1.72 |
|
|
| 16 | M-670007404 | Ground Cable For Engine-Fram |
$183.84 |
|
|
| 17 | M-300476 | Centering Dowel D.15X17 |
$4.68 |
|
|
| 19 | M-279025 | Centering Dowel |
$83.43 |
|
|
| 22 | M-313719 | Threaded Plug With Cu Washer |
$130.76 |
|
|
| 23 | M-306027 | Stud |
$25.41 |
|
|
| 24 | M-185360 | Centring Dowel D.16X15 |
$6.43 |
|
|
| 25 | M-303590 | Stud M10X15X26 Stem54 M10X12 |
$6.70 |
|
|
| 26 | M-303589 | Stud M10X15X26 Stem40 M10X12 |
$12.66 |
|
|
| 27 | M-10337710 | Pin |
$9.53 |
|
|
| 28 | M-335495 | Rear Plate (Assy) Post-Chang |
$343.37 |
|
|
| 29 | M-231617 | Socket Head Screw With Washe |
$2.46 |
|
|
| 31 | M-10337710 | Pin |
$9.53 |
|
|
| 33 | M-334627 | Crankshaft Rear Gasket |
$76.22 |
|
|
| 34 | M-670003630 | High Connecting Rod |
$86.65 |
|
|
| 35 | M-670035412 | Screw |
$5.04 |
|
|
| 36 | M-675000247 | Washer |
$1.67 |
|
|
| 37 | M-675000146 | Screw |
$5.85 |
|
|
| 38 | M-675000383 | Screw |
$1.22 |
|
|
| 39 | M-326558 | Cranckshaft Rear Plate Seal |
$10.21 |
|
|
| 40 | M-675000505 | Nut |
$3.03 |
|
|
| 42 | M-102725 | Centring Dowel D.8X8 |
$1.73 |
|
|
| 43 | M-10418501 | Bracket |
$1.73 |
|
|
| 44 | M-231616 | Screw |
$2.09 |
|
|
| 45 | M-11190574 | Tapered Rubber Washer 10.5-2 |
$1.72 |
|
