Diagram image not available

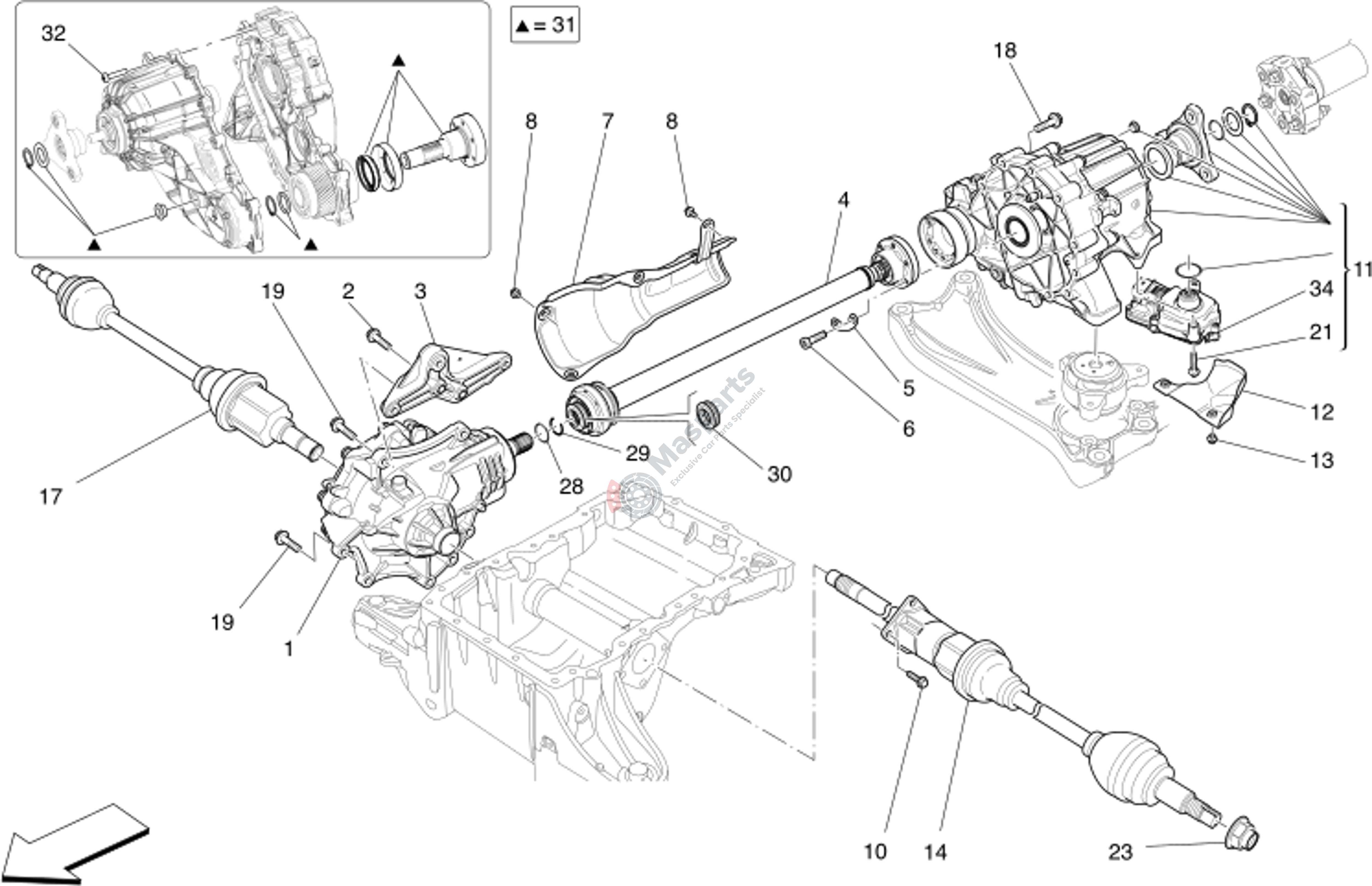

The parts list is available below.
Be aware: Two same spot numbers are selected, for example left and right.
| # | S | Part nr | Description | Price | Add |
|---|---|---|---|---|---|
| 1 | M-670038421 | Front Differential Unit |
$1,612.30 |
|
|
| 2 | M-14306534 | Screw |
$2.39 |
|
|
| 3 | M-768641 | Differential Fastening Brack |
$181.90 |
|
|
| 4 | M-670107694 | Front Drive Shaft |
$736.91 |
|
|
| 5 | M-670003772 | Plate |
$3.63 |
|
|
| 6 | M-675000583 | Screw |
$2.39 |
|
|
| 7 | M-670153213 | Heat Shield |
$57.65 |
|
|
| 8 | M-675000102 | Screw |
$2.60 |
|
|
| 10 | M-675000384 | Screw |
$5.01 |
|
|
| 11 | M-670100396 | Transfer Case |
$2,088.76 |
|
|
| 12 | M-670004015 | Heat Shield |
$27.77 |
|
|
| 13 | M-675000102 | Screw |
$2.60 |
|
|
| 14 | M-670032034 | Lh Axle Shaft Assembly |
$872.30 |
|
|
| 17 | M-670035142 | Rh Axle Shaft |
$876.43 |
|
|
| 18 | M-675000386 | Screw |
$3.65 |
|
|
| 19 | M-675000385 | Screw |
$3.58 |
|
|
| 21 | M-673009049 | Hexalobular Screw |
$5.58 |
|
|
| 23 | M-675000138 | Nut |
$8.77 |
|
|
| 28 | M-673008007 | O-Ring |
$5.08 |
|
|
| 29 | M-673008008 | Snap-Ring |
$5.48 |
|
|
| 30 | M-675000719 | Gasket |
$2.79 |
|
|
| 34 | M-670033135 | Awd Control Unit (Ita Module |
$670.76 |
|
