Diagram image not available

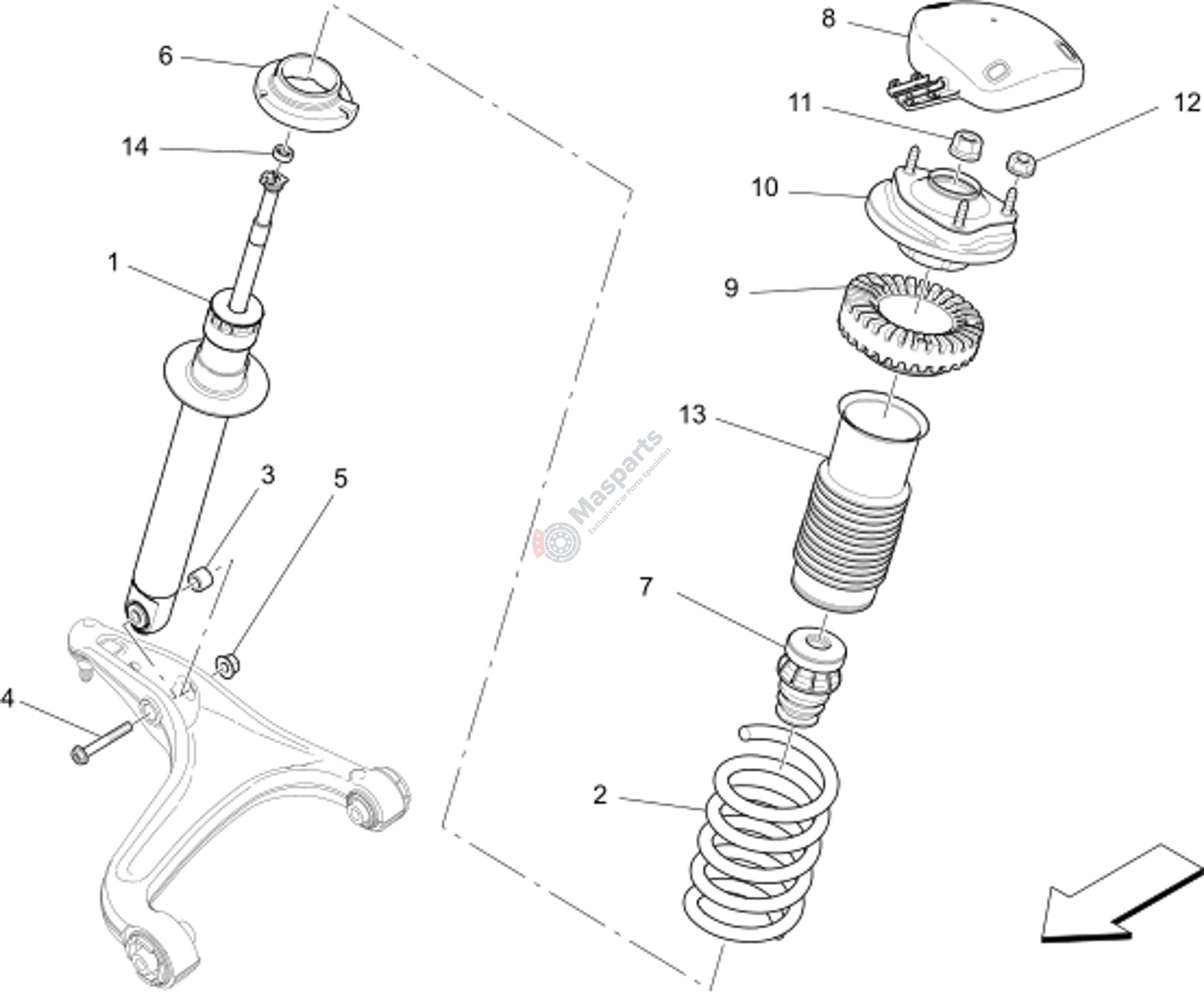

The parts list is available below.
Be aware: Two same spot numbers are selected, for example left and right.
| # | S | Part nr | Description | Price | Add |
|---|---|---|---|---|---|
| 2 | M-673004064 | Front Spring 2 Kit |
$103.26 |
|
|
| 3 | M-670002891 | Lh Shock Absorber Special Si |
$6.41 |
|
|
| 4 | M-670002889 | Pin M14X102 |
$24.83 |
|
|
| 5 | M-670002854 | Special Nut M14X2 |
$2.03 |
|
|
| 6 | M-675000035 | Ring |
$21.03 |
|
|
| 8 | M-670007598 | Rh Shock Abs. Upper Cup |
$7.90 |
|
|
| 9 | M-675000034 | Ring |
$35.44 |
|
|
| 10 | M-670034710 | Elastic Pad |
$105.42 |
|
|
| 11 | M-670009802 | Nut With Washer |
$4.45 |
|
|
| 12 | M-675000517 | Special Nut (M8X1.25) |
$1.88 |
|
|
| 13 | M-675000520 | Sleeve |
$7.90 |
|
|
| 14 | M-670007685 | Spacer |
$39.54 |
|
