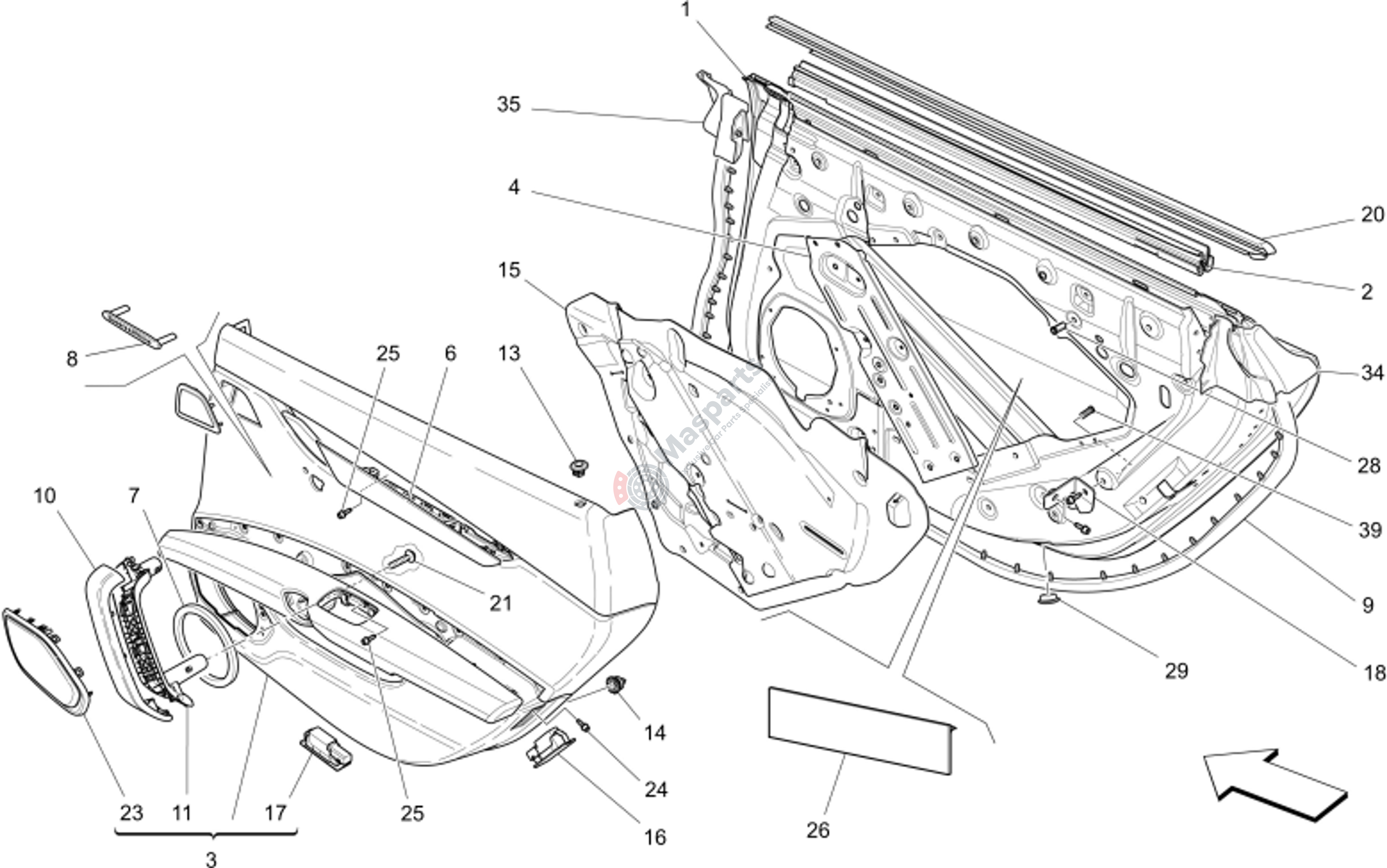

The parts list is available below.
Be aware: Two same spot numbers are selected, for example left and right.
| # | S | Part nr | Description | Price | Add |
|---|---|---|---|---|---|
| 1 | M-673008061 | Cpl Rh Rear Door |
€1.623,60 |
|
|
| 2 | M-670030053 | R.H. Rear Inner Glass Scrape |
€76,08 |
|
|
| 4 | M-670004787 | Rh Rear Door Central Reinfor |
€24,99 |
|
|
| 7 | M-673001453 | Gasket |
€22,54 |
|
|
| 8 | M-673001459 | Label Bower & Wilkins |
€37,81 |
|
|
| 9 | M-670101784 | Rh Rear Door Gasket |
€124,20 |
|
|
| 13 | M-673001444 | Rear Door Bushing |
€57,32 |
|
|
| 14 | M-670220013 | Door Panel Fastening Pin |
€2,50 |
|
|
| 15 | M-670105570 | Water Shield For Rh Rear Doo |
€48,58 |
|
|
| 16 | M-670007082 | Door Light |
€27,32 |
|
|
| 17 | M-675000265 | Door Lamp Black |
€10,13 |
|
|
| 21 | M-673002001 | Screw For Carrier Pull Handl |
€11,41 |
|
|
| 24 | M-670008293 | Screw |
€1,78 |
|
|
| 25 | M-670008293 | Screw |
€1,78 |
|
|
| 26 | M-670034380 | Doors Soundproofing Adhesive |
€3,00 |
|
|
| 28 | M-670005149 | Rivet |
€2,50 |
|
|
| 34 | M-670101785 | Rh Rear Door Gasket |
€75,44 |
|
|
| 35 | M-670101779 | Rh Gasket |
€75,44 |
|
|
| 39 | M-670155282 | Pin |
€2,50 |
|
