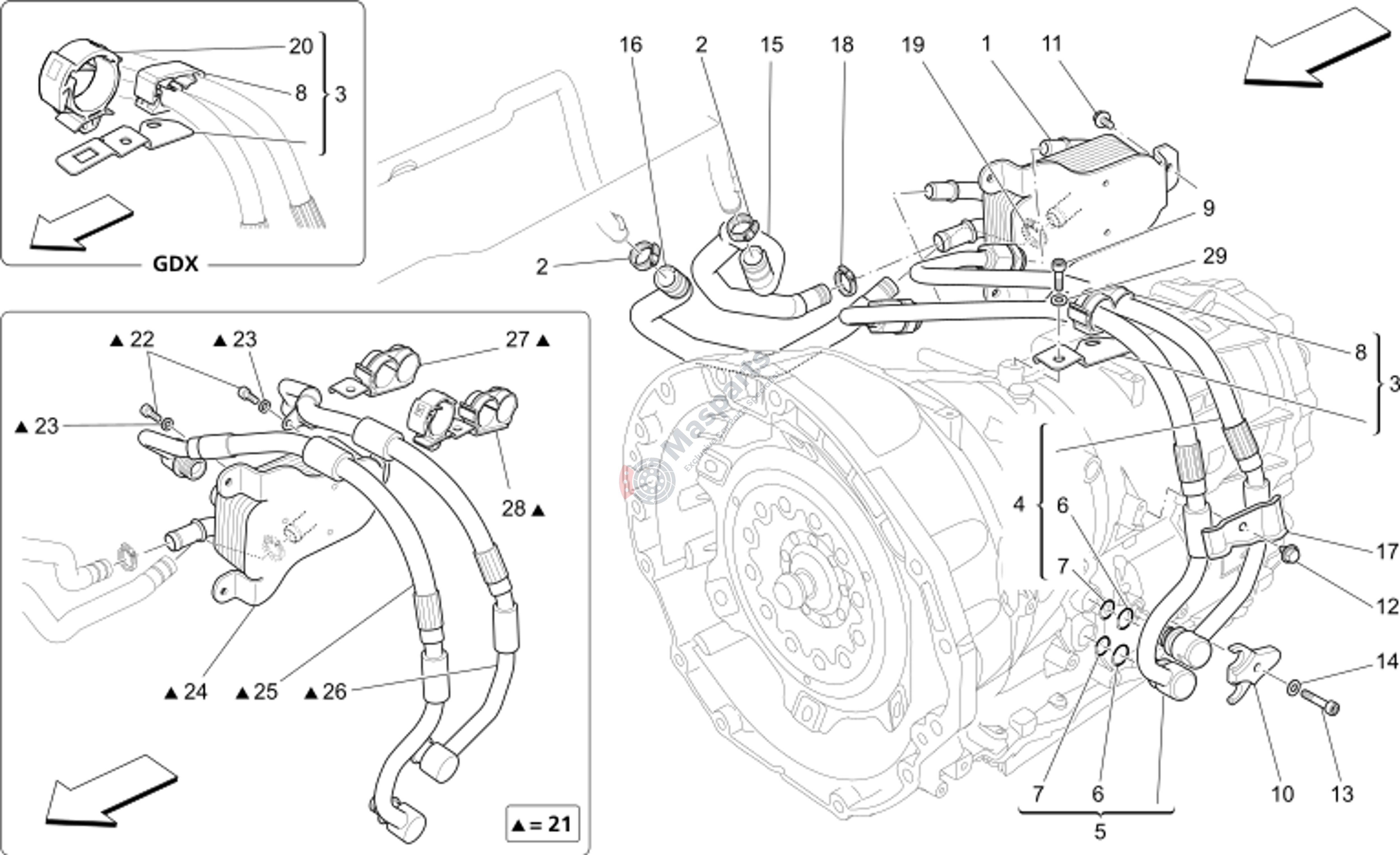

Diagram image not available
The parts list is available below.
Be aware: Two same spot numbers are selected, for example left and right.
| # | S | Part nr | Description | Price | Add |
|---|---|---|---|---|---|
| 2 | M-675000319 | Clip |
$9.38 |
|
|
| 7 | M-670003311 | O-R Gasket |
$1.13 |
|
|
| 8 | M-670003115 | Retaining Clip |
$4.48 |
|
|
| 9 | M-675000191 | Screw |
$2.00 |
|
|
| 10 | M-670002255 | Oil Pipes Mounting Bracket |
$10.79 |
|
|
| 11 | M-675000365 | Screw |
$2.64 |
|
|
| 12 | M-675000102 | Screw |
$2.63 |
|
|
| 13 | M-675000085 | Screw |
$2.06 |
|
|
| 14 | M-675000099 | Washer |
$1.79 |
|
|
| 15 | M-670007587 | Flex Hose |
$40.94 |
|
|
| 16 | M-670007586 | Water Deliv. Pipe From Eng.T |
$99.62 |
|
|
| 17 | M-670003083 | Bracket |
$8.06 |
|
|
| 18 | M-675000372 | Strap Collar |
$1.78 |
|
|
| 19 | M-675000658 | Snap Collar |
$5.55 |
|
|
| 22 | M-675000191 | Screw |
$2.00 |
|
|
| 23 | M-675000565 | Washer |
$1.12 |
|
|
| 24 | M-670034967 | Gear Box Oil Exchanger |
$186.67 |
|
|
| 25 | M-670218189 | Inlet Gearbox Oil Cooling Fl |
$202.15 |
|
|
| 26 | M-670218190 | Outlet Gearbox Oil Cooling F |
$118.97 |
|
|
| 27 | M-670034963 | Gearbox Oil Flex Hose Fixing |
$37.31 |
|
|
| 29 | M-675000565 | Washer |
$1.12 |
|
