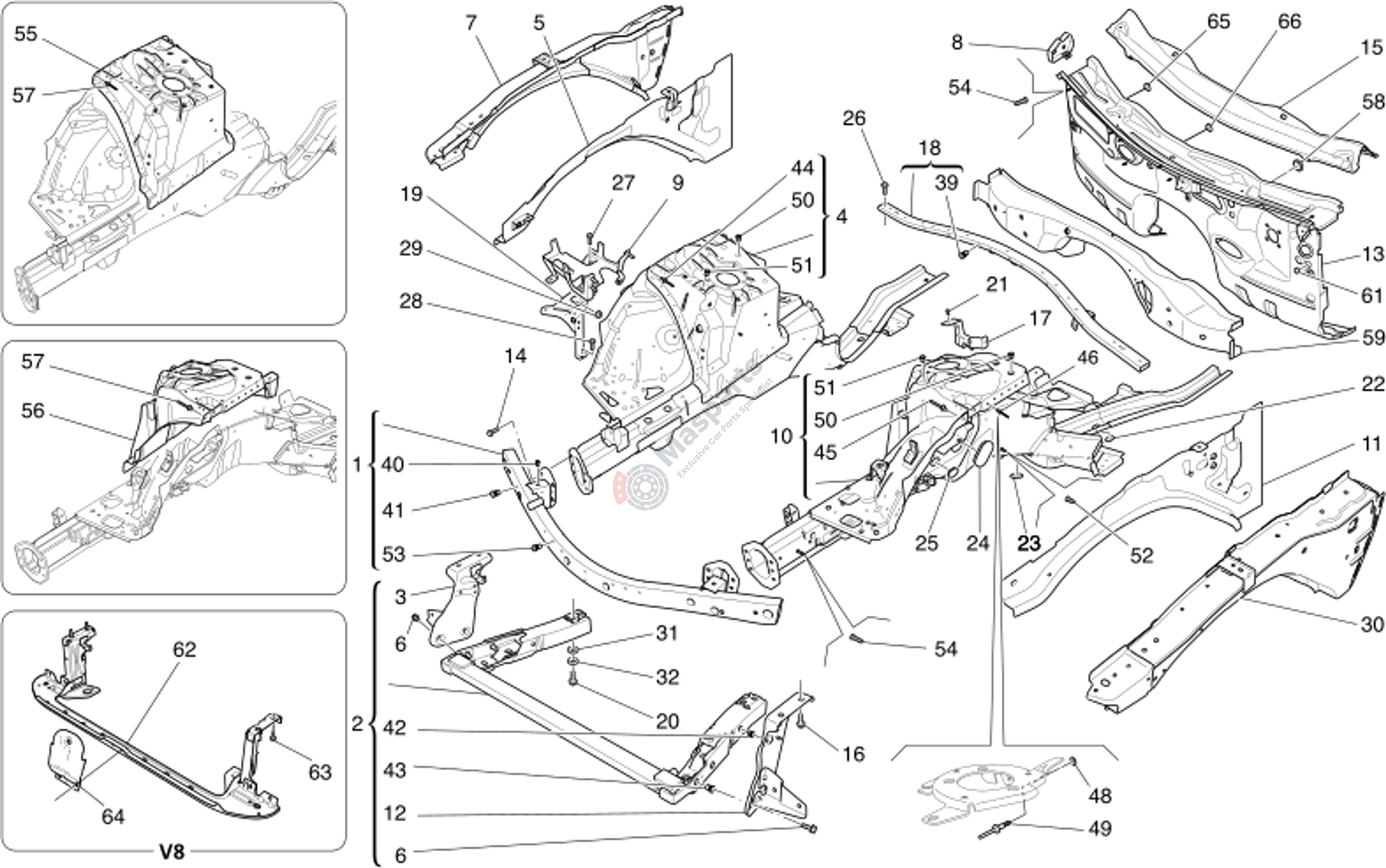

Diagram image not available
The parts list is available below.
Be aware: Two same spot numbers are selected, for example left and right.
| # | S | Part nr | Description | Price | Add |
|---|---|---|---|---|---|
| 1 | M-673008134 | Cpl. Cat. Front Cross Member |
$374.92 |
|
|
| 2 | M-670009989 | Cpl. Third Load Path Cross M |
$457.81 |
|
|
| 3 | M-670004899 | Rh Bracket |
$61.37 |
|
|
| 4 | M-673009228 | R.H. Complete Front Control |
$2,195.57 |
|
|
| 5 | M-673001716 | Complete Rh Upper Strut Box |
$134.93 |
|
|
| 6 | M-675000469 | Screw |
$1.25 |
|
|
| 7 | M-673002754 | Rh Moulding |
$170.60 |
|
|
| 8 | M-670039839 | Structural Insert With Rigid |
$28.66 |
|
|
| 9 | M-670104471 | Fuse Box Mounting Bracket |
$35.03 |
|
|
| 10 | M-673009229 | L.H. Complete Front Control |
$2,108.83 |
|
|
| 11 | M-673001717 | Complete Lh Upper Strut Box |
$134.93 |
|
|
| 12 | M-670004902 | Lh Bracket |
$53.18 |
|
|
| 13 | M-673009728 | Lower Instrument Panel |
$394.20 |
|
|
| 14 | M-670035227 | Screw And Washer |
$2.51 |
|
|
| 15 | M-673000388 | Windshield Lower Front Cross |
$48.54 |
|
|
| 16 | M-675000469 | Screw |
$1.25 |
|
|
| 17 | M-670004846 | 24-Way Holder Bracket |
$5.64 |
|
|
| 18 | M-670037229 | Lhd Cross-Member Hub Holder |
$161.92 |
|
|
| 20 | M-675000503 | Screw |
$2.19 |
|
|
| 21 | M-675000556 | Screw |
$2.05 |
|
|
| 22 | M-670036841 | Adhesive Cap |
$3.13 |
|
|
| 23 | M-670036841 | Adhesive Cap |
$3.13 |
|
|
| 24 | M-670004843 | Plug |
$3.61 |
|
|
| 25 | M-670004844 | Plug |
$3.02 |
|
|
| 26 | M-675000470 | Screw |
$1.32 |
|
|
| 27 | M-675000382 | Screw |
$2.42 |
|
|
| 28 | M-675000421 | Screw |
$2.05 |
|
|
| 29 | M-675000095 | Nut |
$0.77 |
|
|
| 30 | M-673002755 | Lh Moulding |
$170.60 |
|
|
| 31 | M-675000096 | Washer |
$1.15 |
|
|
| 32 | M-675000105 | Washer |
$2.18 |
|
|
| 39 | M-675000398 | Rivet |
$3.40 |
|
|
| 40 | M-670002185 | Rivet |
$2.94 |
|
|
| 41 | M-675000398 | Rivet |
$3.40 |
|
|
| 42 | M-675000398 | Rivet |
$3.40 |
|
|
| 43 | M-670002185 | Rivet |
$2.94 |
|
|
| 44 | M-670032695 | Rivet |
$4.94 |
|
|
| 45 | M-670032695 | Rivet |
$4.94 |
|
|
| 46 | M-670005411 | Rivet |
$1.69 |
|
|
| 48 | M-10519527 | Washer |
$1.97 |
|
|
| 49 | M-670032695 | Rivet |
$4.94 |
|
|
| 50 | M-670005395 | Rivet |
$3.61 |
|
|
| 51 | M-670006571 | Rivet |
$2.89 |
|
|
| 52 | M-675000623 | Special Screw |
$1.70 |
|
|
| 53 | M-670002185 | Rivet |
$2.94 |
|
|
| 54 | M-675000628 | Special Screw |
$2.15 |
|
|
| 55 | M-670155028 | Rh A-Pillar |
$556.12 |
|
|
| 56 | M-670107239 | Lh Front Dome |
$630.34 |
|
|
| 57 | M-670032695 | Rivet |
$4.94 |
|
|
| 58 | M-670030073 | Rubber Plug |
$1.70 |
|
|
| 59 | M-673008198 | Front Crossmember |
$227.46 |
|
|
| 61 | M-670152736 | Rubber Plug |
$1.21 |
|
|
| 65 | M-670175361 | Adhesive Cap |
$2.43 |
|
|
| 66 | M-670036841 | Adhesive Cap |
$3.13 |
|
