Diagram image not available

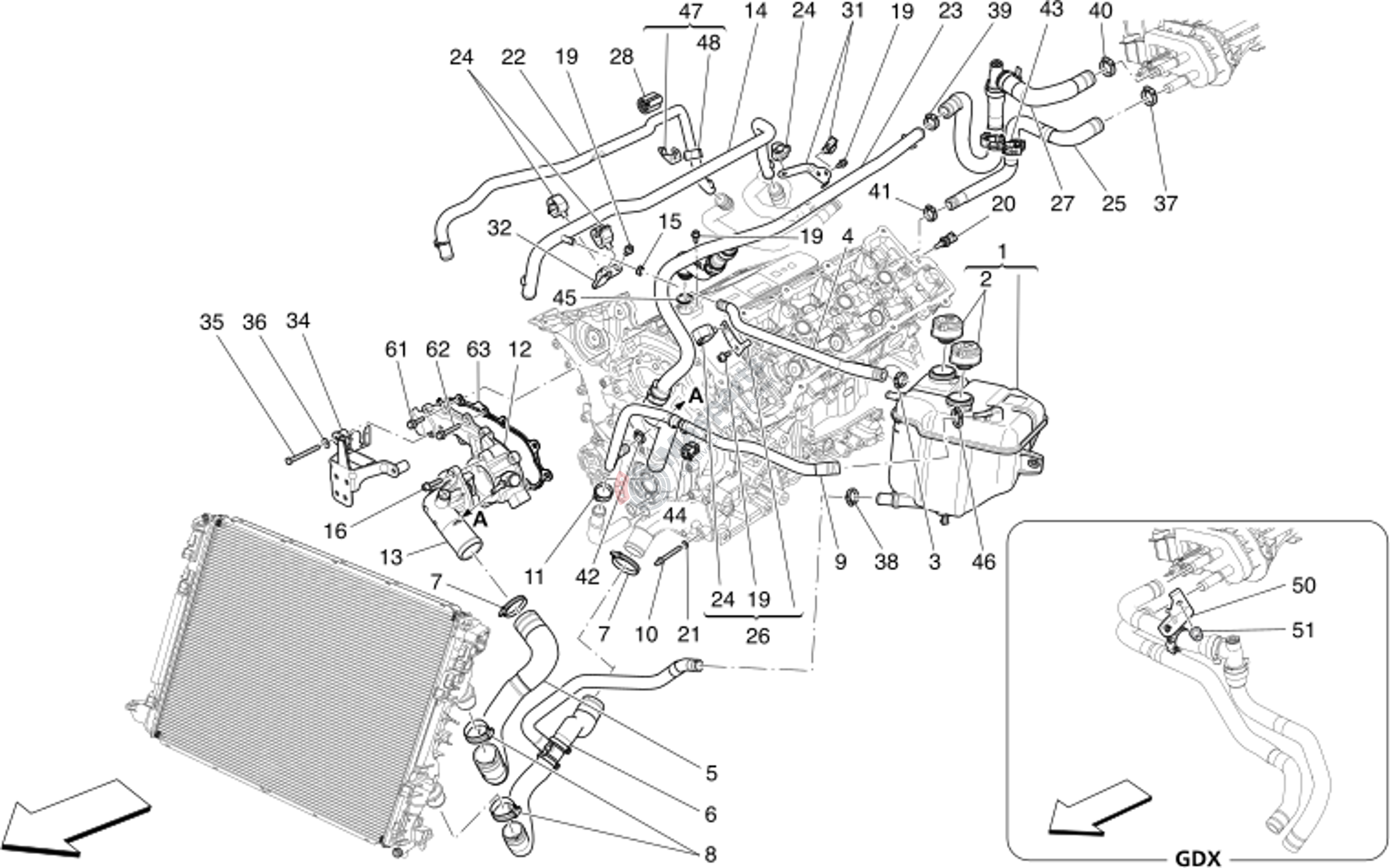

The parts list is available below.
Be aware: Two same spot numbers are selected, for example left and right.
| # | S | Part nr | Description | Price | Add |
|---|---|---|---|---|---|
| 1 | M-670031651 | Reservoir Assy Engine Coolan |
€80,67 |
|
|
| 2 | M-670003408 | Mount Plug |
€11,68 |
|
|
| 3 | M-675000344 | Strap Collar |
€2,05 |
|
|
| 4 | M-670003615 | Engine Vent Pipe |
€17,85 |
|
|
| 5 | M-670031866 | Radiator Water Inlet Pipe |
€40,97 |
|
|
| 6 | M-670155231 | Water Outlet Sleeve |
€90,95 |
|
|
| 7 | M-675000345 | Screw Collar |
€3,20 |
|
|
| 8 | M-675000345 | Screw Collar |
€3,20 |
|
|
| 9 | M-670003613 | Engine Vent Pipe |
€64,09 |
|
|
| 10 | M-227281 | Stud |
€15,36 |
|
|
| 11 | M-262109 | Clamp |
€1,99 |
|
|
| 13 | M-330424 | Cpl Thermostat |
€85,05 |
|
|
| 14 | M-882497 | Water Secondary Pipe |
€42,76 |
|
|
| 15 | M-675000373 | Strap Collar |
€1,63 |
|
|
| 16 | M-231620 | Socket Head Screw With Washe |
€1,39 |
|
|
| 19 | M-231616 | Screw |
€1,78 |
|
|
| 20 | M-180137 | Water Temperature Sensor |
€33,80 |
|
|
| 21 | M-675000106 | Washer |
€1,38 |
|
|
| 22 | M-296492 | Secondary Water Pipe |
€48,28 |
|
|
| 23 | M-333706 | H2O Hose From Radiator |
€225,40 |
|
|
| 24 | M-259508 | Clip |
€1,46 |
|
|
| 25 | M-670106757 | Water Hose To Heater (Awd2-Z |
€31,45 |
|
|
| 26 | M-292354 | Cpl Pipe Support Bracket |
€16,01 |
|
|
| 27 | M-670106759 | Sleeve |
€72,17 |
|
|
| 28 | M-298362 | Rubber |
€5,61 |
|
|
| 31 | M-300867 | Bracket |
€172,96 |
|
|
| 32 | M-287986 | Bracket |
€76,08 |
|
|
| 34 | M-834094 | Bracket |
€57,32 |
|
|
| 35 | M-10903424 | Screw |
€2,09 |
|
|
| 36 | M-14498824 | Washer. |
€1,46 |
|
|
| 37 | M-675000334 | Collar Clip |
€2,15 |
|
|
| 38 | M-675000658 | Snap Collar |
€4,69 |
|
|
| 39 | M-675000352 | Hose Elastic Collar |
€2,91 |
|
|
| 40 | M-675000334 | Collar Clip |
€2,15 |
|
|
| 41 | M-675000370 | Strap Collar |
€1,72 |
|
|
| 42 | M-675000368 | Strap Collar |
€1,64 |
|
|
| 43 | M-670005922 | Heating Water Pipe Retaining |
€2,61 |
|
|
| 44 | M-675000019 | Pipe Retaining Clip |
€1,00 |
|
|
| 45 | M-282370 | O-Ring |
€2,09 |
|
|
| 46 | M-675000344 | Strap Collar |
€2,05 |
|
|
| 47 | M-302126 | Bracket Cpl. |
€8,00 |
|
|
| 48 | M-259508 | Clip |
€1,46 |
|
|
| 50 | M-670005450 | Bracket |
€5,43 |
|
|
| 61 | M-291776 | Screw |
€3,34 |
|
|
| 62 | M-291771 | Screw |
€16,84 |
|
|
| 63 | M-280912 | Gasket (Crossover) |
€16,28 |
|
