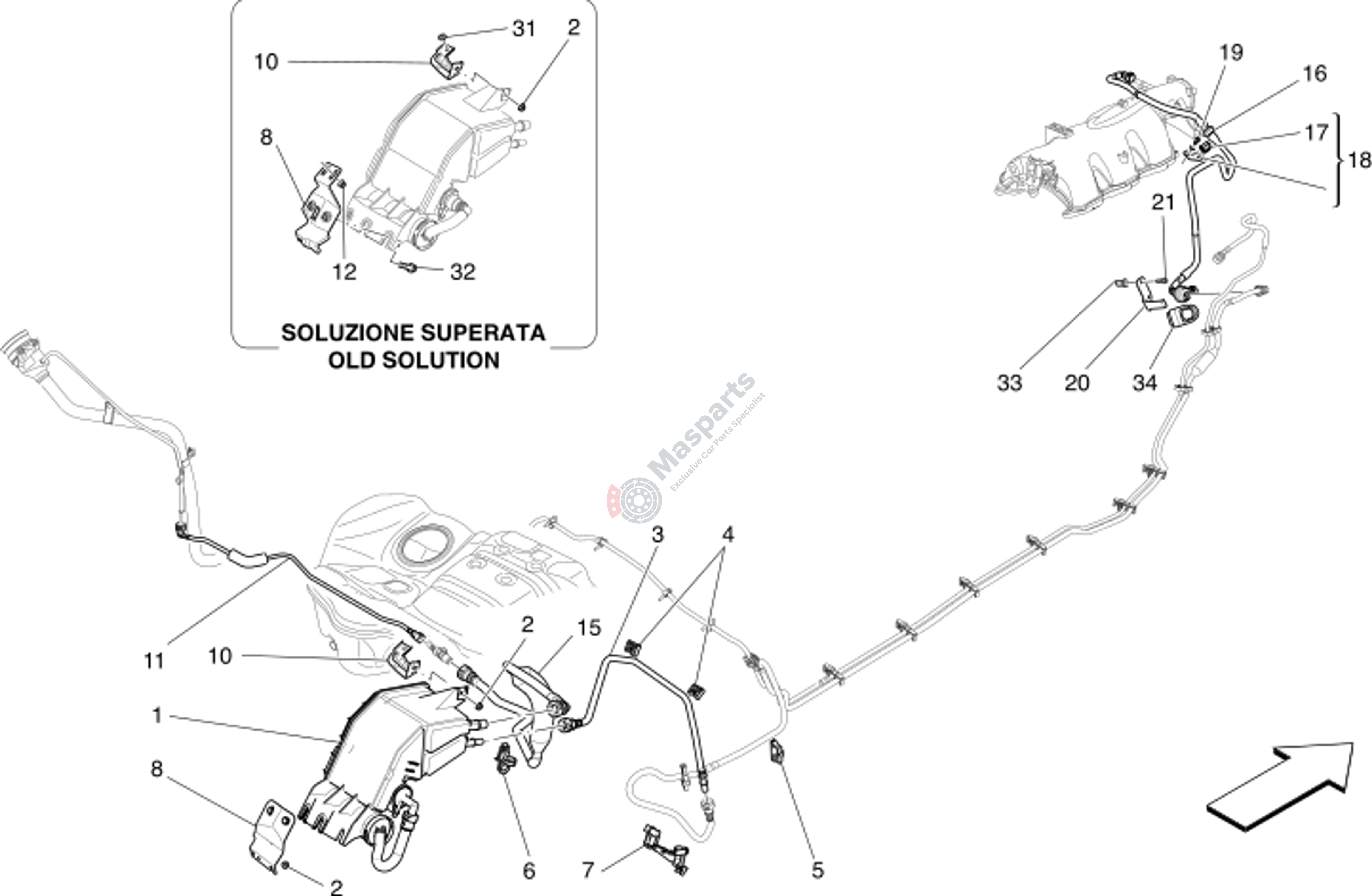

The parts list is available below.
Be aware: Two same spot numbers are selected, for example left and right.
| # | S | Part nr | Description | Price | Add |
|---|---|---|---|---|---|
| 1 | M-670102642 | Fuel Vapour Filter |
$181.99 |
|
|
| 2 | M-675000095 | Nut |
$0.79 |
|
|
| 3 | M-670036931 | Fuel Vapour Pipe |
$28.39 |
|
|
| 4 | M-675000069 | Clip |
$1.34 |
|
|
| 5 | M-675000055 | Clip |
$1.28 |
|
|
| 6 | M-670100038 | Fuel Tank Bracket |
$3.19 |
|
|
| 7 | M-670007068 | Clip |
$5.19 |
|
|
| 8 | M-670101522 | Rear Bracket |
$15.95 |
|
|
| 10 | M-670036933 | Canister Bracket |
$25.35 |
|
|
| 11 | M-670005215 | Flex.Hose |
$28.69 |
|
|
| 12 | M-675000095 | Nut |
$0.79 |
|
|
| 15 | M-670036929 | Fuel Tank Blow-By Dump-Pipe |
$92.44 |
|
|
| 16 | M-670161425 | Pipe From Union To Air Intak |
$141.43 |
|
|
| 17 | M-675000132 | Clip |
$1.18 |
|
|
| 18 | M-670005045 | Cpl Bracket |
$6.06 |
|
|
| 19 | M-675000191 | Screw |
$2.03 |
|
|
| 20 | M-670007135 | Bracket |
$3.71 |
|
|
| 21 | M-675000242 | Screw |
$3.40 |
|
|
| 31 | M-670100665 | Washer |
$1.22 |
|
|
| 32 | M-675000436 | Screw |
$2.46 |
|
|
| 33 | M-675000576 | Rivet |
$1.20 |
|
|
| 34 | M-670007319 | Antivibration Bushing |
$6.65 |
|
