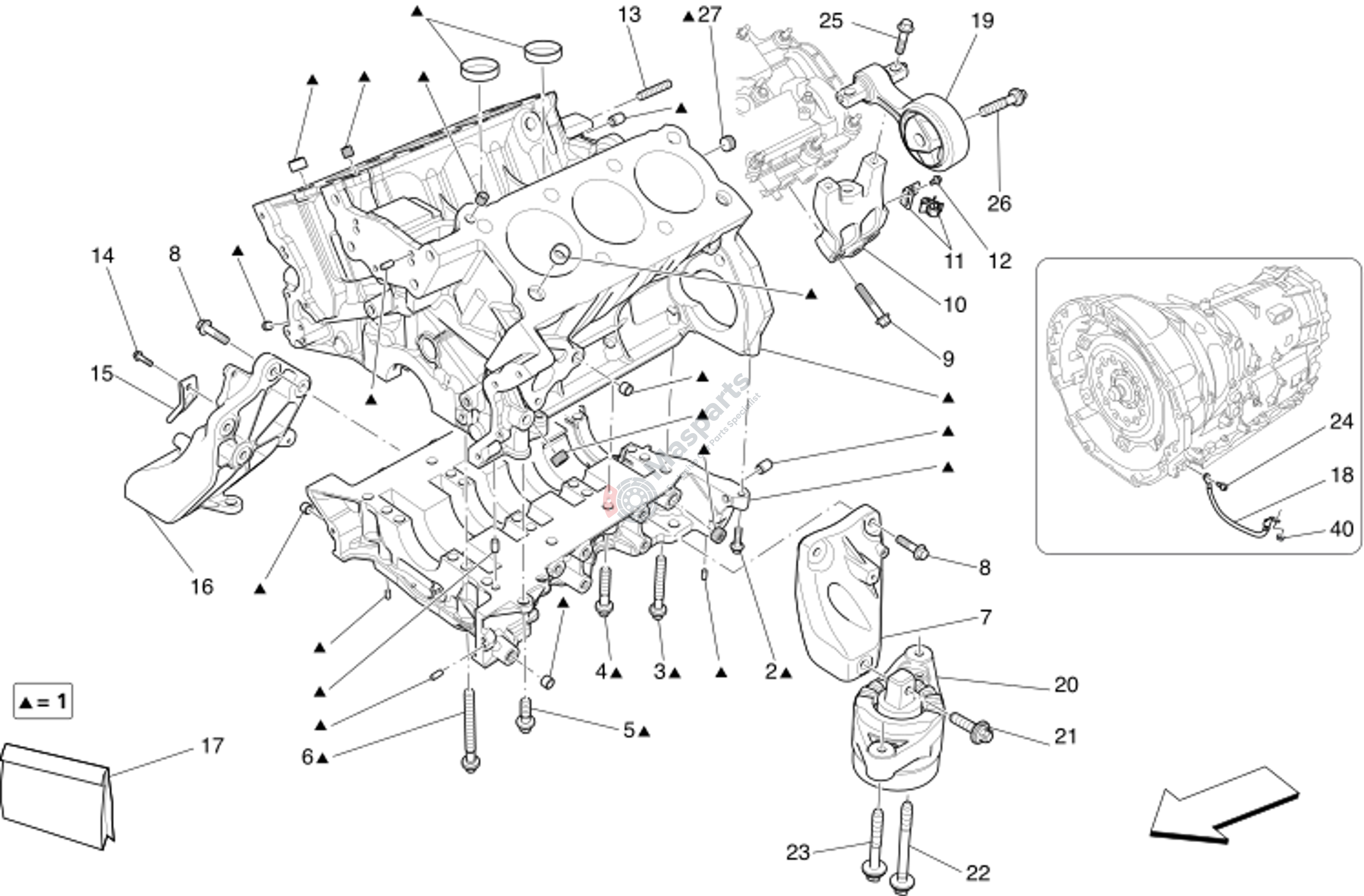

The parts list is available below.
Be aware: Two same spot numbers are selected, for example left and right.
| # | S | Part nr | Description | Price | Add |
|---|---|---|---|---|---|
| 2 | M-46328701 | Flange Bolt |
$3.57 |
|
|
| 3 | M-46328083 | Screw |
$11.03 |
|
|
| 4 | M-46328082 | Screw |
$9.19 |
|
|
| 5 | M-46328084 | Screw |
$11.64 |
|
|
| 6 | M-46328081 | Screw |
$12.25 |
|
|
| 7 | M-670004866 | Lh Bracket |
$152.10 |
|
|
| 8 | M-46328716 | Flange Bolt |
$2.86 |
|
|
| 9 | M-46328719 | Flange Bolt |
$3.88 |
|
|
| 10 | M-46328307 | Bracket |
$324.62 |
|
|
| 11 | M-46328308 | Bracket |
$23.48 |
|
|
| 12 | M-46328680 | Flange Bolt |
$2.04 |
|
|
| 13 | M-46328349 | Stud |
$4.39 |
|
|
| 14 | M-46328685 | Flange Bolt |
$2.04 |
|
|
| 15 | M-46328342 | Bracket |
$24.40 |
|
|
| 16 | M-670004865 | Rh Bracket |
$191.92 |
|
|
| 17 | M-673000963 | Plugs And Pins Kit For Crank |
$130.67 |
|
|
| 18 | M-670007404 | Ground Cable For Engine-Fram |
$176.54 |
|
|
| 19 | M-670004297 | High Connecting Rod |
$92.45 |
|
|
| 20 | M-670175584 | Rh Engine Side Plug |
$208.25 |
|
|
| 21 | M-670003759 | Screw |
$6.45 |
|
|
| 23 | M-670103084 | Screw And Washer |
$2.96 |
|
|
| 24 | M-675000383 | Screw |
$1.18 |
|
|
| 25 | M-675000252 | Screw |
$5.05 |
|
|
| 26 | M-675000146 | Screw |
$5.61 |
|
|
| 27 | M-46328351 | Seal Plug |
$3.57 |
|
|
| 40 | M-675000505 | Nut |
$2.91 |
|
