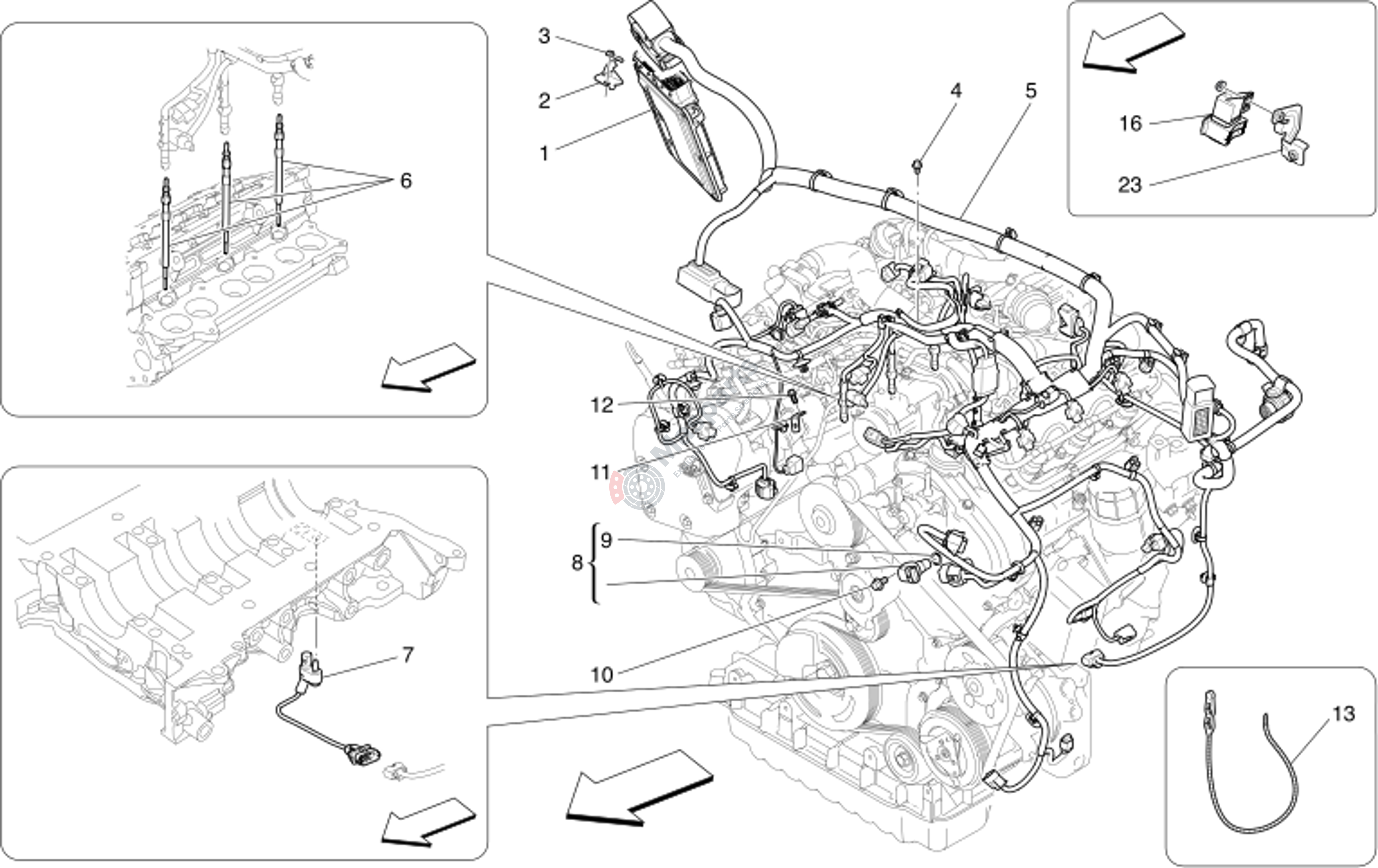

The parts list is available below.
Be aware: Two same spot numbers are selected, for example left and right.
| # | S | Part nr | Description | Price | Add |
|---|---|---|---|---|---|
| 1 | M-670108936 | Diesel Ignition Ecu (Hw) |
$1,050.57 |
|
|
| 2 | M-670005090 | Control Unit Fixing Bracket |
$9.13 |
|
|
| 4 | M-46328709 | Flange Bolt |
$4.84 |
|
|
| 6 | M-46341533 | Glow Plug |
$137.70 |
|
|
| 7 | M-46328171 | Sensor |
$233.03 |
|
|
| 8 | M-46328202 | Timing Sensor |
$115.55 |
|
|
| 9 | M-673001051 | O.R. Gasket |
$2.89 |
|
|
| 10 | M-46328681 | Flange Bolt |
$2.58 |
|
|
| 11 | M-46328769 | Support Bracket For Harness |
$4.45 |
|
|
| 12 | M-46328683 | Flange Bolt |
$1.13 |
|
|
| 13 | M-46329513 | Wiring Clamp |
$3.01 |
|
|
| 16 | M-670005138 | Control Unit |
$167.91 |
|
|
| 23 | M-670039356 | Control Unit Support Bracket |
$11.85 |
|
