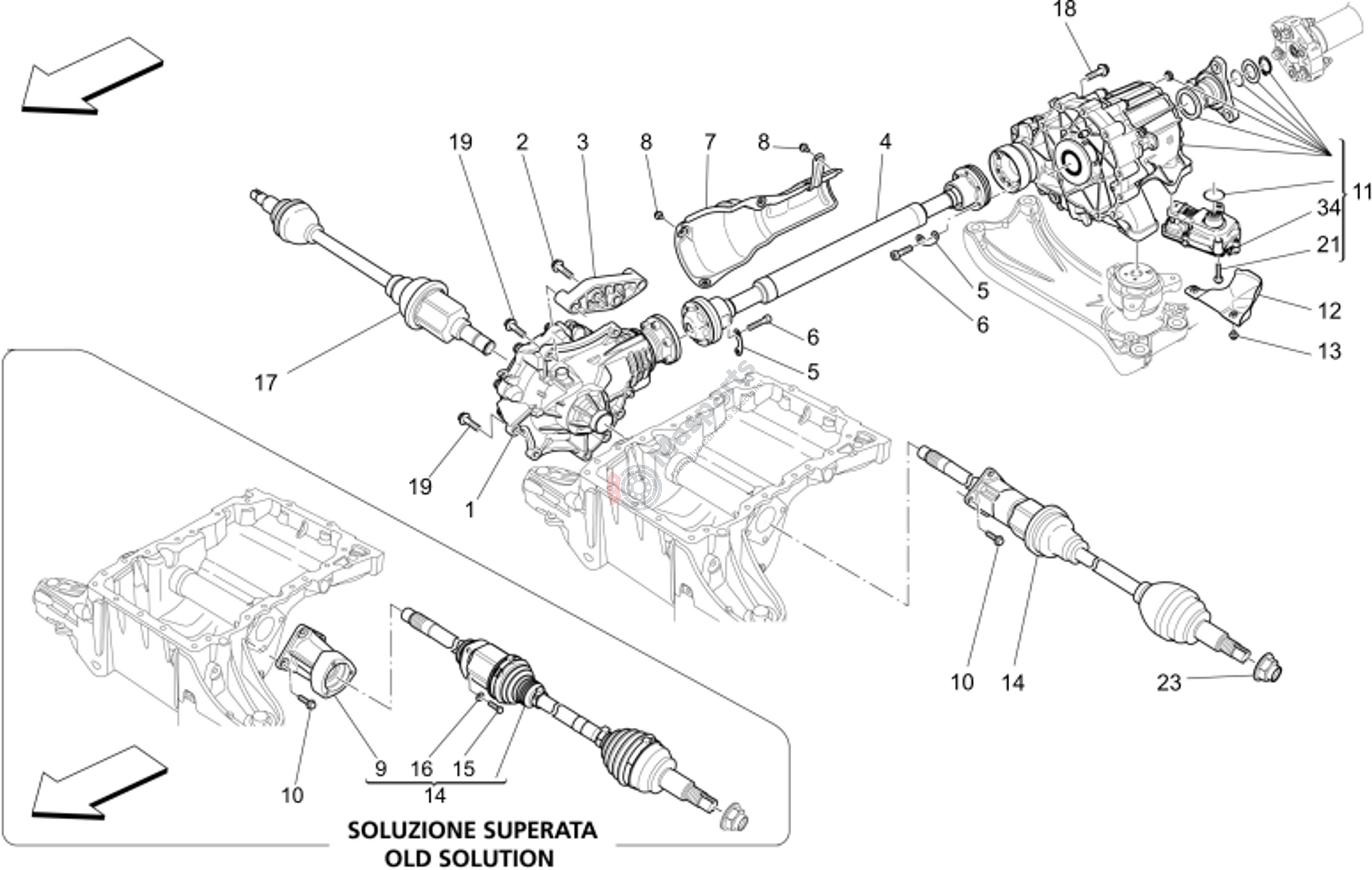

The parts list is available below.
Be aware: Two same spot numbers are selected, for example left and right.
| # | S | Part nr | Description | Price | Add |
|---|---|---|---|---|---|
| 1 | M-670032672 | Cpl Front Differential (Awd) |
$2,479.06 |
|
|
| 2 | M-675000385 | Screw |
$3.69 |
|
|
| 3 | M-670003776 | Bracket |
$96.95 |
|
|
| 4 | M-670008548 | Cpl Front Transmission Shaft |
$729.26 |
|
|
| 5 | M-670003772 | Plate |
$3.73 |
|
|
| 6 | M-675000256 | Screw |
$1.88 |
|
|
| 7 | M-670003989 | Heat Shield |
$44.65 |
|
|
| 8 | M-675000102 | Screw |
$2.67 |
|
|
| 9 | M-670003873 | L.H. Spacer |
$173.28 |
|
|
| 10 | M-675000384 | Screw |
$5.16 |
|
|
| 11 | M-673009767 | Transfer Case M156/7Awd <My1 |
$4,563.72 |
|
|
| 12 | M-670004015 | Heat Shield |
$28.56 |
|
|
| 13 | M-675000102 | Screw |
$2.67 |
|
|
| 14 | M-670032034 | Lh Axle Shaft Assembly |
$897.22 |
|
|
| 15 | M-14305924 | Socket Head Screw M6 X 45 |
$12.23 |
|
|
| 17 | M-670035142 | Rh Axle Shaft |
$901.47 |
|
|
| 18 | M-675000386 | Screw |
$3.75 |
|
|
| 19 | M-675000385 | Screw |
$3.69 |
|
|
| 21 | M-673009049 | Hexalobular Screw |
$5.74 |
|
|
| 23 | M-675000138 | Nut |
$9.03 |
|
|
| 34 | M-670033135 | Awd Control Unit (Ita Module |
$689.93 |
|
