Diagram image not available

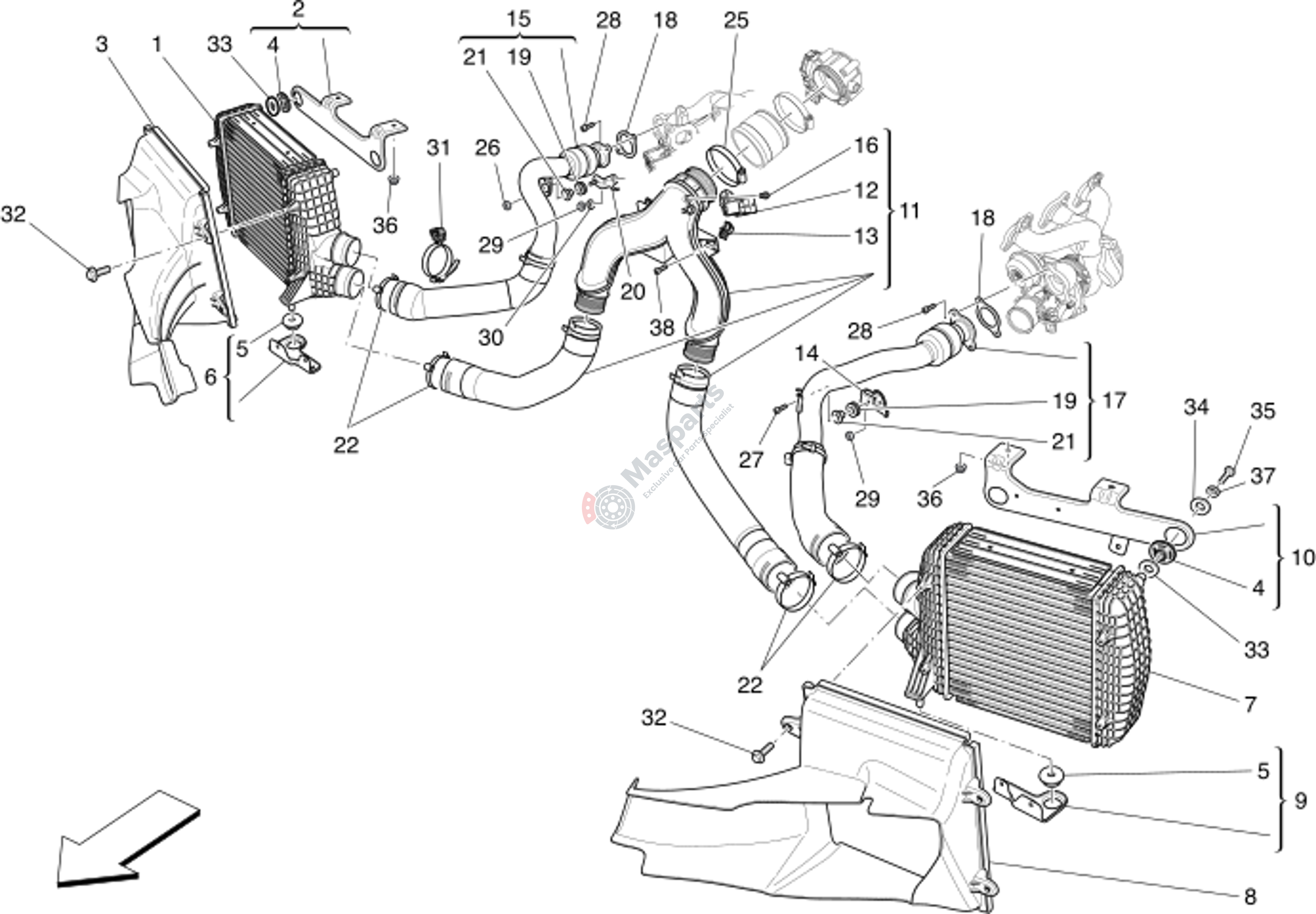

The parts list is available below.
Be aware: Two same spot numbers are selected, for example left and right.
| # | S | Part nr | Description | Price | Add |
|---|---|---|---|---|---|
| 1 | M-670035635 | R.H. Intercooler |
$383.46 |
|
|
| 2 | M-670001349 | Ic Upper Rh Support Bracket |
$27.56 |
|
|
| 3 | M-670004139 | Rh Intercooler Air Duct |
$58.99 |
|
|
| 4 | M-675000201 | Small Block. |
$9.50 |
|
|
| 5 | M-670009556 | Radiator Support Fastening B |
$3.22 |
|
|
| 6 | M-670037757 | Lower Intercooler Bracket |
$19.54 |
|
|
| 7 | M-670035636 | L.H. Intercooler |
$338.87 |
|
|
| 8 | M-670004140 | Lh Intercooler Air Duct |
$62.46 |
|
|
| 9 | M-670037759 | Intercooler Bracket |
$95.81 |
|
|
| 10 | M-670001348 | Ic Upper Lh Support Bracket |
$34.96 |
|
|
| 11 | M-670003620 | Sleeve |
$402.28 |
|
|
| 12 | M-675000248 | Air Temp Sensor |
$119.30 |
|
|
| 13 | M-670006739 | Retaining Clip |
$2.48 |
|
|
| 14 | M-670009370 | Lh Bracket |
$10.94 |
|
|
| 15 | M-670039061 | Sleeve From Turbine To Rh In |
$295.27 |
|
|
| 16 | M-675000190 | Screw |
$2.96 |
|
|
| 17 | M-670039062 | Sleeve From Turbine To Lh In |
$295.27 |
|
|
| 18 | M-670006210 | Gasket |
$4.40 |
|
|
| 19 | M-675000016 | Rubber Bushing |
$5.86 |
|
|
| 20 | M-670002877 | Rh Bracket |
$22.78 |
|
|
| 21 | M-675000017 | Spacer |
$8.29 |
|
|
| 22 | M-675000362 | Collar |
$4.93 |
|
|
| 25 | M-675000685 | Collar |
$7.65 |
|
|
| 27 | M-675000088 | Screw |
$2.68 |
|
|
| 28 | M-675000104 | Screw |
$1.60 |
|
|
| 30 | M-675000366 | Washer |
$1.71 |
|
|
| 31 | M-670006982 | Retaining Clip |
$3.10 |
|
|
| 32 | M-675000354 | Screw |
$2.75 |
|
|
| 33 | M-670007293 | Spacer |
$3.13 |
|
|
| 35 | M-675000409 | Washer |
$2.51 |
|
|
| 37 | M-675000718 | Washer |
$2.26 |
|
|
| 38 | M-675000088 | Screw |
$2.68 |
|
