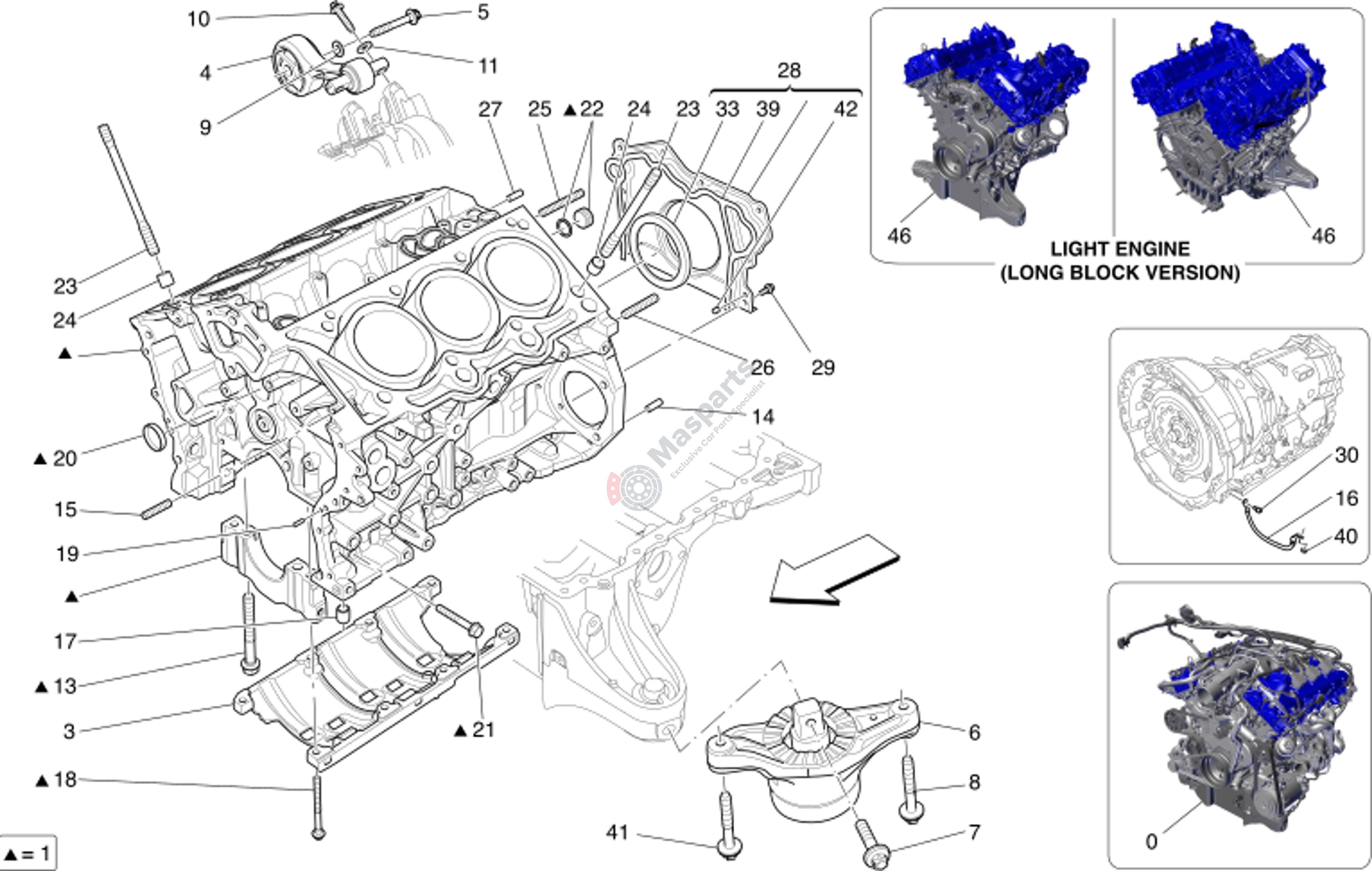

Diagram image not available
The parts list is available below.
Be aware: Two same spot numbers are selected, for example left and right.
| # | S | Part nr | Description | Price | Add |
|---|---|---|---|---|---|
| 0 | M-670032490 | Cpl.Engine V6 410Hp Awd My16 |
€14.409,92 |
|
|
| 3 | M-275361 | Shield |
€65,87 |
|
|
| 4 | M-670003630 | High Connecting Rod |
€73,69 |
|
|
| 5 | M-675000146 | Screw |
€4,97 |
|
|
| 6 | M-670003628 | Rh Engine Bushing |
€280,60 |
|
|
| 7 | M-670038507 | Special Screw |
€4,88 |
|
|
| 8 | M-670009954 | Special Screw (With Washer) |
€7,45 |
|
|
| 9 | M-675000096 | Washer |
€0,99 |
|
|
| 10 | M-670035412 | Screw |
€4,28 |
|
|
| 11 | M-675000247 | Washer |
€1,42 |
|
|
| 14 | M-10337710 | Pin |
€8,10 |
|
|
| 16 | M-670007404 | Ground Cable For Engine-Fram |
€27,09 |
|
|
| 17 | M-300476 | Centering Dowel D.15X17 |
€3,86 |
|
|
| 19 | M-279025 | Centering Dowel |
€80,22 |
|
|
| 22 | M-313719 | Threaded Plug With Cu Washer |
€110,40 |
|
|
| 23 | M-306027 | Stud |
€21,44 |
|
|
| 24 | M-185360 | Centring Dowel D.16X15 |
€5,43 |
|
|
| 25 | M-303590 | Stud M10X15X26 Stem54 M10X12 |
€5,61 |
|
|
| 26 | M-303589 | Stud M10X15X26 Stem40 M10X12 |
€10,76 |
|
|
| 27 | M-10337710 | Pin |
€8,10 |
|
|
| 28 | M-335495 | Rear Plate (Assy) Post-Chang |
€291,64 |
|
|
| 29 | M-231617 | Socket Head Screw With Washe |
€2,09 |
|
|
| 30 | M-675000383 | Screw |
€1,04 |
|
|
| 33 | M-334627 | Crankshaft Rear Gasket |
€64,03 |
|
|
| 39 | M-326558 | Cranckshaft Rear Plate Seal |
€8,65 |
|
|
| 40 | M-675000505 | Nut |
€2,91 |
|
|
| 41 | M-675000024 | Screw |
€2,04 |
|
|
| 42 | M-102725 | Centring Dowel D.8X8 |
€1,46 |
|
