Diagram image not available

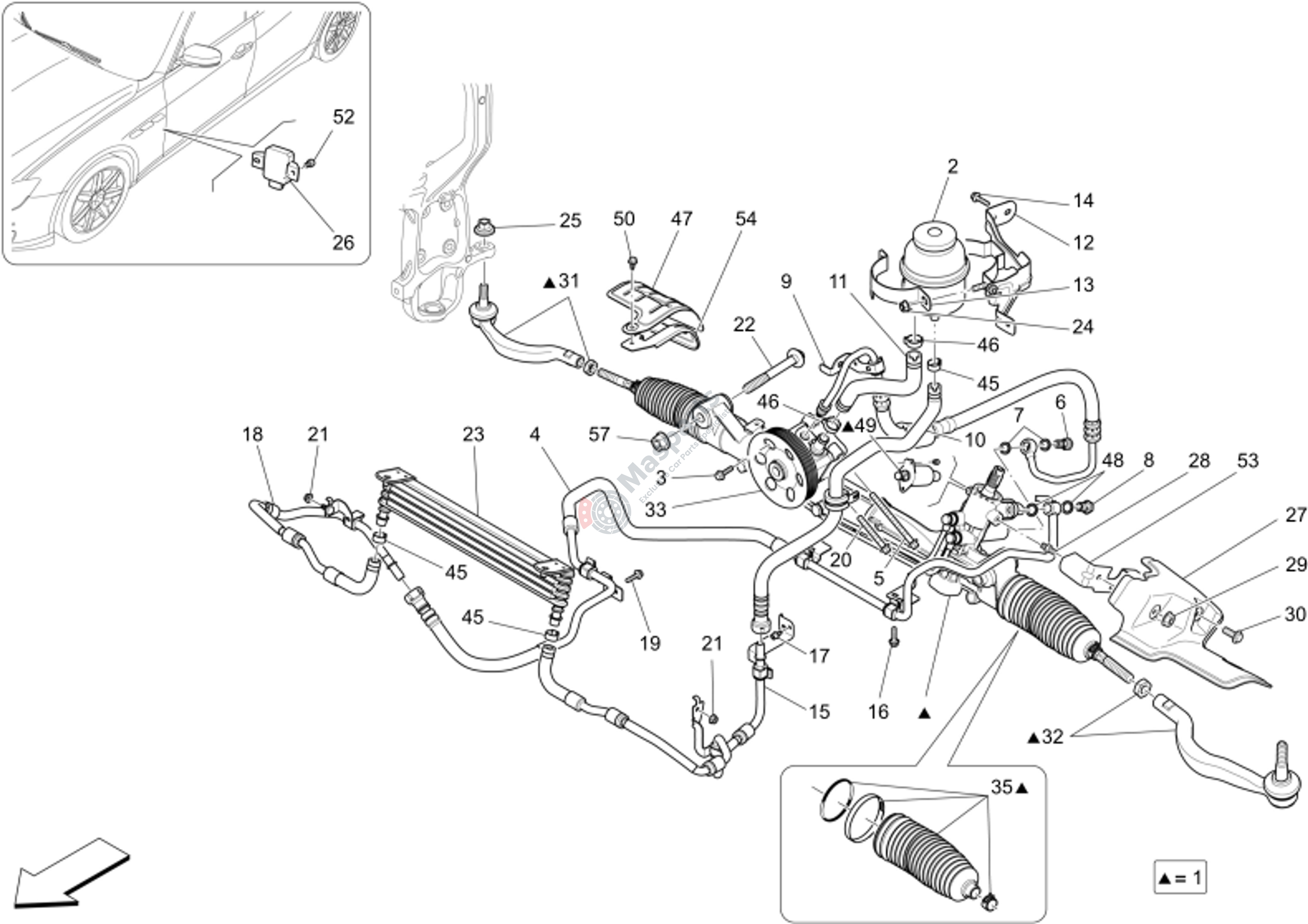

The parts list is available below.
Be aware: Two same spot numbers are selected, for example left and right.
| # | S | Part nr | Description | Price | Add |
|---|---|---|---|---|---|
| 1 | M-670102931 | Lhd Cpl Rack Steering Box |
$3,120.17 |
|
|
| 2 | M-670001919 | Oil Tank For Hydraulic Servo |
$47.79 |
|
|
| 3 | M-46328686 | Flange Bolt |
$2.14 |
|
|
| 4 | M-670004284 | Pipe From Steering Box To Ex |
$176.37 |
|
|
| 5 | M-46328709 | Flange Bolt |
$5.04 |
|
|
| 6 | M-675000203 | Union |
$16.70 |
|
|
| 7 | M-675000152 | Gasket |
$1.69 |
|
|
| 8 | M-675000021 | Union |
$6.16 |
|
|
| 9 | M-670004281 | Pipe From Steering Box To Pu |
$140.70 |
|
|
| 10 | M-670004282 | Flex. Hose From Rigid Pipe T |
$59.69 |
|
|
| 11 | M-670004283 | Pipe From Tank To Pump |
$20.72 |
|
|
| 12 | M-670008977 | Power Steer. Oil Tank Bracke |
$225.21 |
|
|
| 13 | M-670008978 | Bracket Flange |
$14.30 |
|
|
| 14 | M-675000278 | Screw |
$1.59 |
|
|
| 15 | M-670006980 | Pipe |
$107.01 |
|
|
| 16 | M-675000278 | Screw |
$1.59 |
|
|
| 17 | M-675000308 | Screw |
$1.68 |
|
|
| 18 | M-670006978 | Rigid Pipe From Steer.Box To |
$94.58 |
|
|
| 19 | M-675000278 | Screw |
$1.59 |
|
|
| 20 | M-46328701 | Flange Bolt |
$3.75 |
|
|
| 21 | M-675000273 | Nut |
$1.00 |
|
|
| 22 | M-670001945 | Screw |
$9.17 |
|
|
| 23 | M-670009814 | Exchanger Heat Air/Oil |
$239.78 |
|
|
| 24 | M-670030742 | Nut |
$1.54 |
|
|
| 25 | M-675000127 | Nut |
$2.25 |
|
|
| 27 | M-670001946 | Steering Box Guard |
$434.34 |
|
|
| 28 | M-670005277 | Screw |
$7.86 |
|
|
| 30 | M-675000088 | Screw |
$2.68 |
|
|
| 31 | M-673000006 | Cpl. Rh External Tie-Rod |
$126.83 |
|
|
| 32 | M-673000005 | Lh Tie Rod |
$126.83 |
|
|
| 33 | M-670004286 | Hydraulic Servo-Control Pump |
$1,286.93 |
|
|
| 35 | M-673000004 | Steering Box Pipes Replaceme |
$40.27 |
|
|
| 45 | M-675000266 | Hose Fastening Collar |
$2.34 |
|
|
| 46 | M-675000267 | Hose Fastening Collar |
$2.85 |
|
|
| 47 | M-670006235 | Lhd Rack Steering Box Heat S |
$34.38 |
|
|
| 48 | M-675000250 | Washer 12X18X1 |
$1.44 |
|
|
| 49 | M-673001466 | Solenoid |
$269.18 |
|
|
| 50 | M-675000088 | Screw |
$2.68 |
|
|
| 52 | M-675000454 | Screw |
$1.56 |
|
|
| 53 | M-670005854 | Bracket |
$11.36 |
|
|
| 54 | M-670005772 | Lhd Cpl Bracket |
$75.56 |
|
|
| 57 | M-675000148 | Nut |
$2.55 |
|
