Diagram image not available

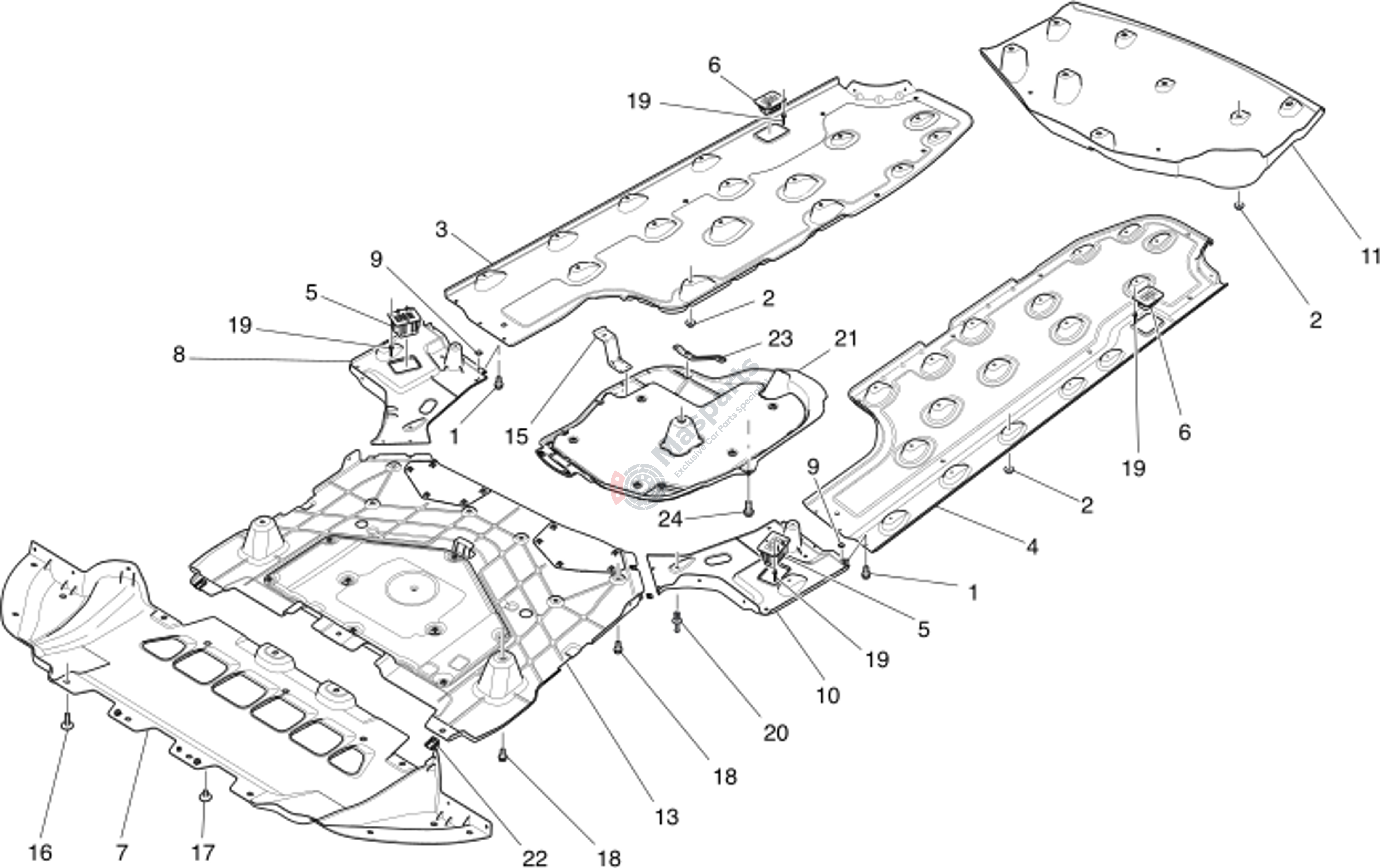

The parts list is available below.
Be aware: Two same spot numbers are selected, for example left and right.
| # | S | Part nr | Description | Price | Add |
|---|---|---|---|---|---|
| 1 | M-675000228 | Screw |
$2.23 |
|
|
| 2 | M-675000324 | Special Nut |
$1.25 |
|
|
| 3 | M-670030796 | R.H. Central Aerodynamic Bot |
$632.71 |
|
|
| 4 | M-670004365 | Central Left Aerodynamic Gua |
$632.71 |
|
|
| 5 | M-670034356 | Vehicle Lifting Front Suppor |
$14.92 |
|
|
| 6 | M-670034358 | Vehicle Lifting Rear Support |
$11.91 |
|
|
| 7 | M-670009250 | Cpl Front Aerodynamic Shield |
$106.87 |
|
|
| 8 | M-670153481 | Cpl Front Rh Aerodynamic Shi |
$47.48 |
|
|
| 9 | M-675000341 | Undercover Screw Fixing Brac |
$2.05 |
|
|
| 10 | M-670153483 | Cpl Front Lh Aerodynamic Shi |
$46.43 |
|
|
| 11 | M-670030778 | Rear Aerodynamic Shield |
$122.95 |
|
|
| 13 | M-670039641 | Front Aerodynamic Engine Gua |
$227.93 |
|
|
| 15 | M-670009630 | Under Engine Rh Shield Brack |
$9.18 |
|
|
| 16 | M-670034505 | Special Screw |
$2.49 |
|
|
| 17 | M-670007383 | Fastening Pin |
$7.96 |
|
|
| 18 | M-675000342 | Special Screw With Washer |
$2.52 |
|
|
| 19 | M-675000323 | Rivet |
$1.84 |
|
|
| 20 | M-675000150 | Fixing Button. |
$0.97 |
|
|
| 21 | M-670009238 | Cpl Under Engine Shield (Die |
$164.70 |
|
|
| 22 | M-675000020 | Lower Shield Fastening Clip |
$7.00 |
|
|
| 23 | M-670009631 | Under Engine Lh Shield Brack |
$8.65 |
|
|
| 24 | M-670005384 | Screw |
$2.42 |
|
