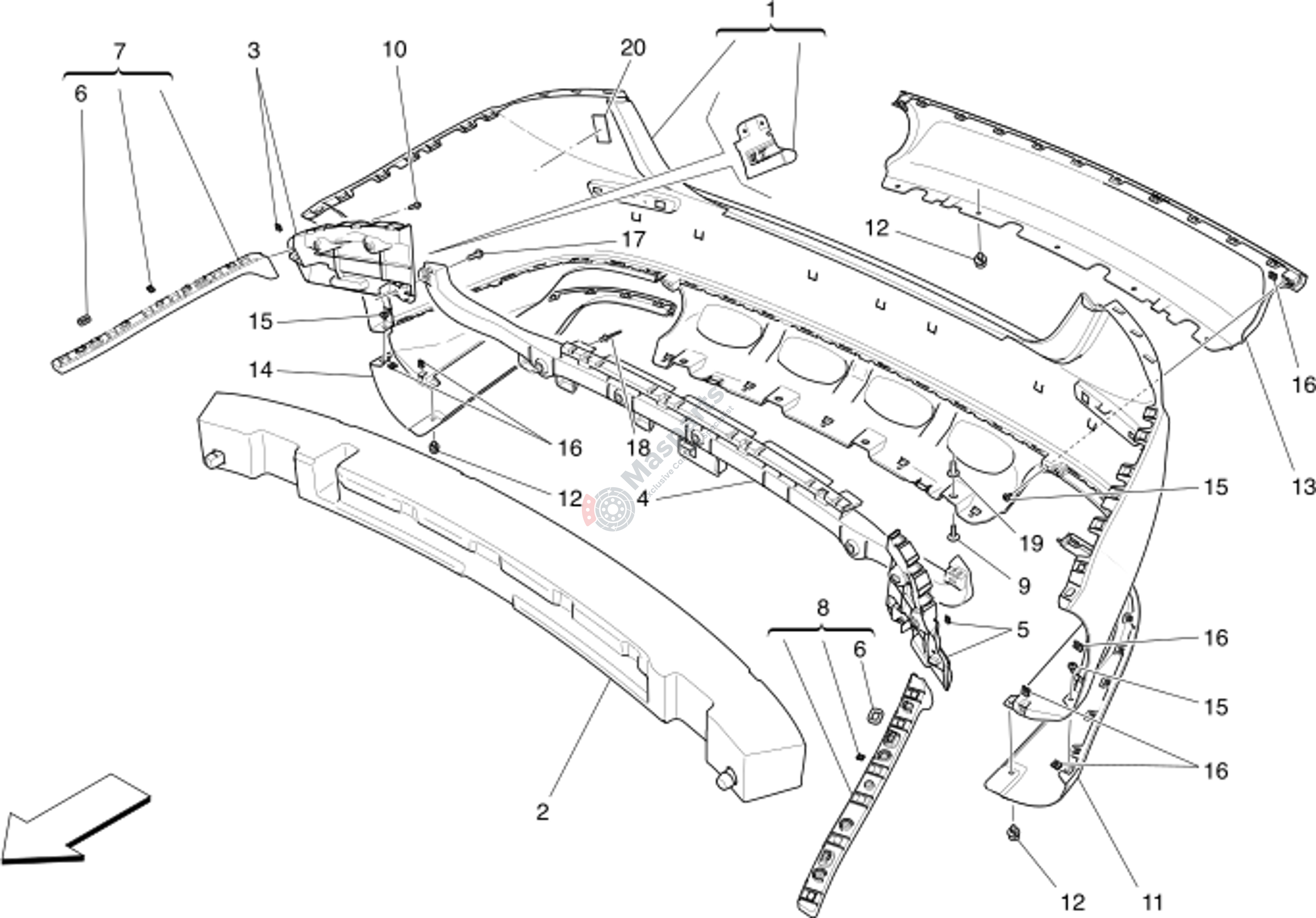

The parts list is available below.
Be aware: Two same spot numbers are selected, for example left and right.
| # | S | Part nr | Description | Price | Add |
|---|---|---|---|---|---|
| 2 | M-670033709 | Rear Bumper Shock Absorber |
€40,55 |
|
|
| 3 | M-670004467 | Rh Bracket Under Rear Backli |
€15,46 |
|
|
| 4 | M-670004471 | Upper Central Bracket |
€238,28 |
|
|
| 5 | M-670004469 | Lh Bracket Under Rear Backli |
€15,46 |
|
|
| 6 | M-675000064 | Gasket |
€2,40 |
|
|
| 7 | M-670004465 | R.H. Bumper Mounting Bracket |
€26,22 |
|
|
| 8 | M-670004463 | L.H. Bumper Mounting Bracket |
€26,22 |
|
|
| 9 | M-670034505 | Special Screw |
€2,09 |
|
|
| 10 | M-675000326 | Screw |
€1,67 |
|
|
| 12 | M-670014562 | Fixing Button. |
€2,50 |
|
|
| 15 | M-675000326 | Screw |
€1,67 |
|
|
| 16 | M-675000192 | Bracket |
€1,05 |
|
|
| 17 | M-675000326 | Screw |
€1,67 |
|
|
| 18 | M-675000323 | Rivet |
€1,58 |
|
|
| 19 | M-675000715 | Nutserts |
€1,46 |
|
|
| 20 | M-670031643 | Pad |
€3,13 |
|
