Diagram image not available

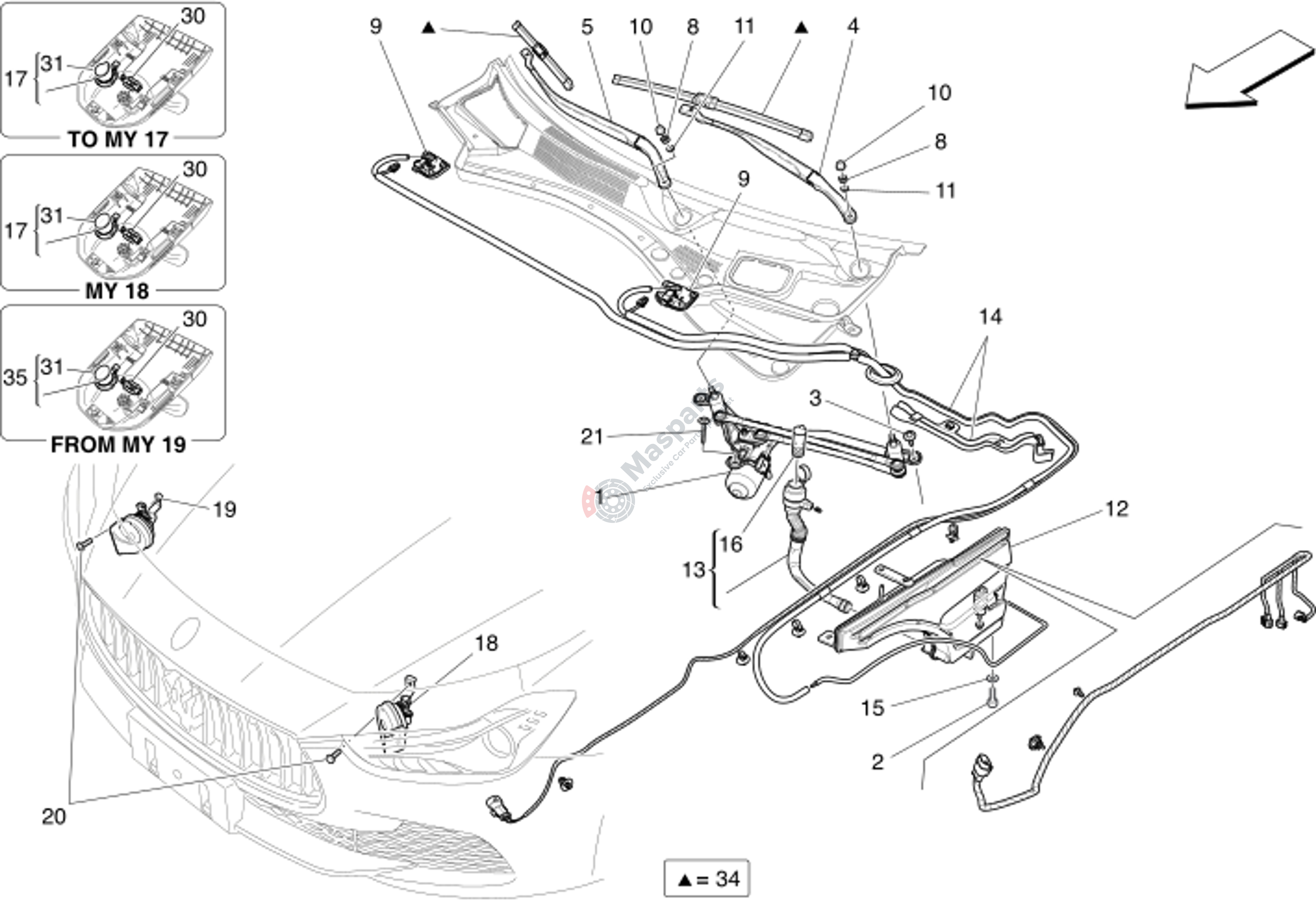

The parts list is available below.
Be aware: Two same spot numbers are selected, for example left and right.
| # | S | Part nr | Description | Price | Add |
|---|---|---|---|---|---|
| 2 | M-670030635 | Screw |
$2.13 |
|
|
| 3 | M-675000077 | Screw |
$2.34 |
|
|
| 4 | M-670007562 | Lhd Pilot Side Windshield Wi |
$168.93 |
|
|
| 5 | M-670001642 | Lhd Passenger Side Windscreen Arm |
$136.52 |
|
|
| 8 | M-675000175 | Nut |
$1.02 |
|
|
| 10 | M-670007188 | Protection Boot. |
$1.14 |
|
|
| 11 | M-675000176 | Washer |
$1.15 |
|
|
| 12 | M-670105311 | Windscreen Washer Tank |
$249.47 |
|
|
| 13 | M-670038848 | Tank Pipe |
$33.98 |
|
|
| 15 | M-670030893 | Special Washer |
$2.97 |
|
|
| 16 | M-675000049 | Air Filter |
$6.76 |
|
|
| 17 | M-670032787 | Rain Sensor |
$86.96 |
|
|
| 18 | M-670038117 | High Tone Horn |
$52.97 |
|
|
| 19 | M-670038116 | Low Tone Horn |
$52.97 |
|
|
| 20 | M-675000433 | Screw |
$1.69 |
|
|
| 21 | M-670005392 | Screw |
$3.93 |
|
|
| 30 | M-675000651 | Clip Rain Sensor |
$5.80 |
|
|
| 31 | M-673007345 | Gelpad For Sensor Rain/Humid |
$32.86 |
|
|
| 34 | M-673008176 | Lhd Wiper Set |
$69.25 |
|
