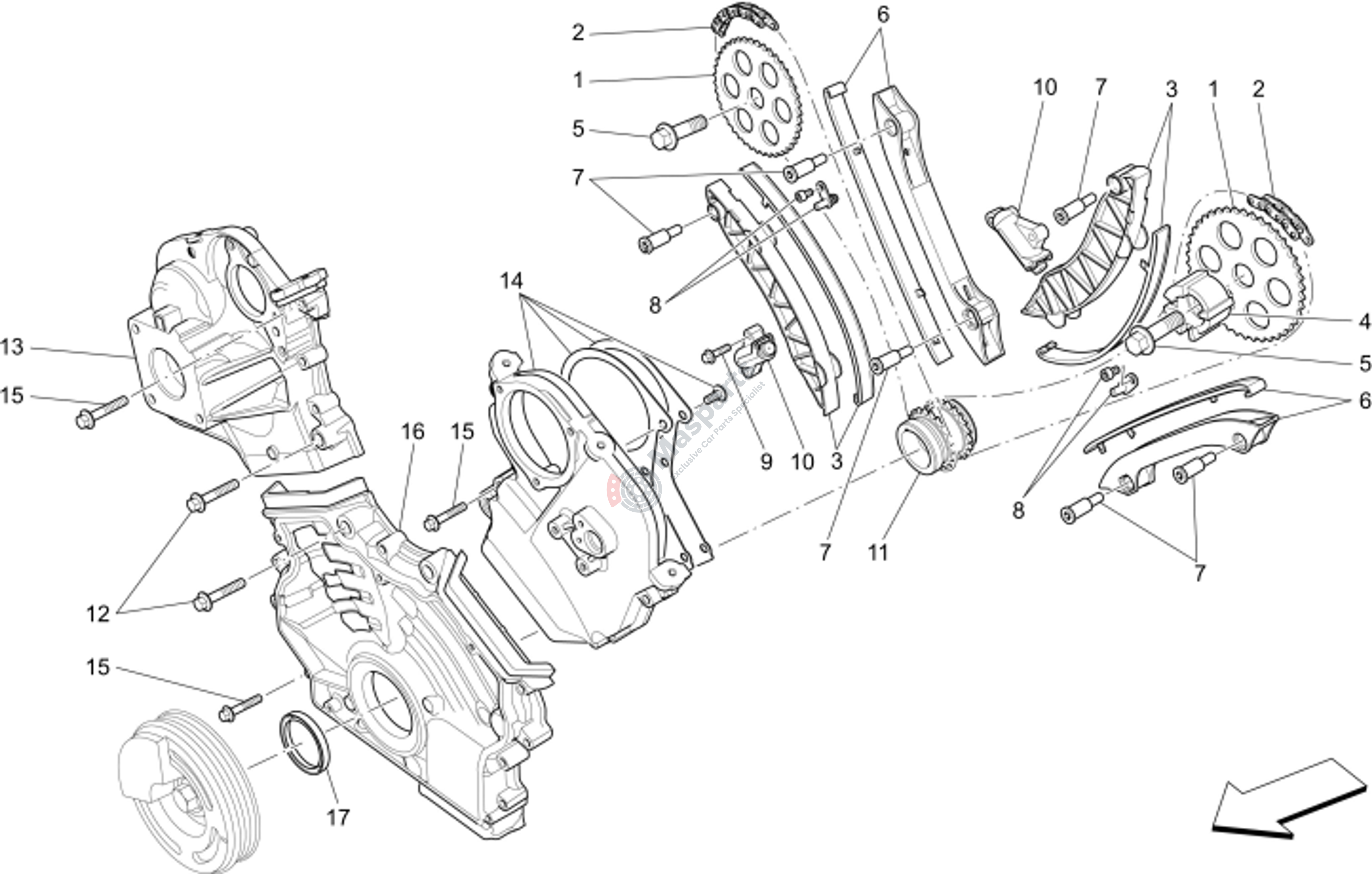

Diagram image not available
The parts list is available below.
Be aware: Two same spot numbers are selected, for example left and right.
| # | S | Part nr | Description | Price | Add |
|---|---|---|---|---|---|
| 1 | M-46328125 | Camshaft Rack |
$54.29 |
|
|
| 2 | M-46341482 | Timing Control Chain |
$130.49 |
|
|
| 3 | M-46328122 | Mobile Runner |
$50.93 |
|
|
| 4 | M-46328127 | Camshaft Pulse Ring |
$44.23 |
|
|
| 5 | M-46328128 | Screw |
$3.61 |
|
|
| 6 | M-46328124 | Fixed Runner |
$50.31 |
|
|
| 7 | M-46328123 | Screw |
$13.30 |
|
|
| 8 | M-673000961 | Valves Kit |
$56.80 |
|
|
| 9 | M-46328687 | Flange Bolt |
$2.16 |
|
|
| 10 | M-46328119 | Fixed Chain Tensioner |
$123.71 |
|
|
| 11 | M-46328118 | Crankshaft Pinion |
$239.08 |
|
|
| 12 | M-46328718 | Flange Bolt |
$3.29 |
|
|
| 13 | M-46328136 | Head Front Cover |
$49.25 |
|
|
| 14 | M-46328144 | Cpl Front Cover |
$343.31 |
|
|
| 15 | M-46328689 | Flange Bolt |
$1.65 |
|
|
| 16 | M-46328133 | Cpl Front Lower Cover |
$112.40 |
|
|
| 17 | M-46328130 | O-Ring |
$59.38 |
|
