Diagram image not available

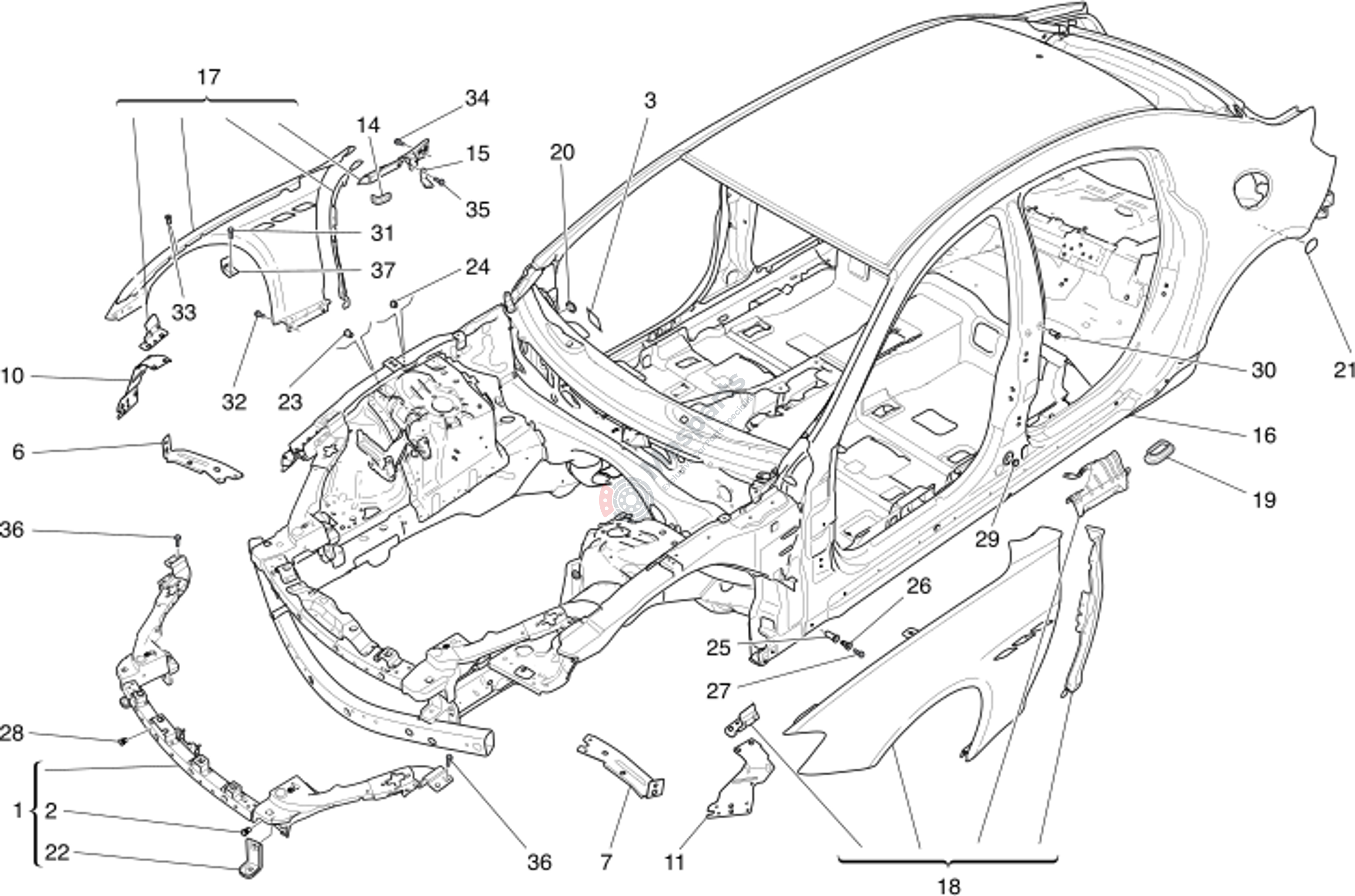

The parts list is available below.
Be aware: Two same spot numbers are selected, for example left and right.
| # | S | Part nr | Description | Price | Add |
|---|---|---|---|---|---|
| 1 | M-673008133 | Front Upper Cross Member M15 |
$474.41 |
|
|
| 2 | M-675000399 | Rivet |
$3.06 |
|
|
| 3 | M-675000747 | Protection |
$3.04 |
|
|
| 6 | M-673003653 | Cpl Rh Mudguard Support Brac |
$47.60 |
|
|
| 7 | M-673003652 | Cpl Lh Mudguard Support Brac |
$47.60 |
|
|
| 10 | M-673002588 | Rh Front Mudguard Lower Rein |
$25.93 |
|
|
| 11 | M-673002589 | Sh Front Mudguard Lower Rein |
$25.93 |
|
|
| 14 | M-673000794 | Mudguard Lateral Bracket |
$22.45 |
|
|
| 15 | M-673000796 | Rh Mudguard Upper Fast.Brack |
$19.97 |
|
|
| 17 | M-673002042 | Rh Front Modguard |
$761.26 |
|
|
| 18 | M-673002041 | Lh Front Modguard |
$761.26 |
|
|
| 19 | M-675000415 | Plug |
$3.91 |
|
|
| 20 | M-675000316 | Plug |
$3.05 |
|
|
| 22 | M-670003856 | Headlight Holder Crossmember |
$21.21 |
|
|
| 23 | M-670003669 | Rivet |
$2.11 |
|
|
| 24 | M-670005411 | Rivet |
$1.65 |
|
|
| 25 | M-670005223 | Rivet |
$21.79 |
|
|
| 26 | M-670006065 | Adjustable Insert |
$5.49 |
|
|
| 27 | M-670005287 | M6 Bolt |
$2.38 |
|
|
| 28 | M-670002185 | Rivet |
$2.86 |
|
|
| 29 | M-675000244 | Plug |
$0.95 |
|
|
| 30 | M-675000715 | Nutserts |
$1.65 |
|
|
| 31 | M-675000588 | Screw |
$0.97 |
|
|
| 32 | M-670005287 | M6 Bolt |
$2.38 |
|
|
| 33 | M-675000686 | Rivet |
$1.15 |
|
|
| 34 | M-675000605 | Screw |
$0.95 |
|
|
| 35 | M-675000751 | Screw |
$1.14 |
|
|
| 36 | M-670005314 | Screw M8X25 |
$2.35 |
|
|
| 37 | M-673010188 | Bracket |
$14.69 |
|
