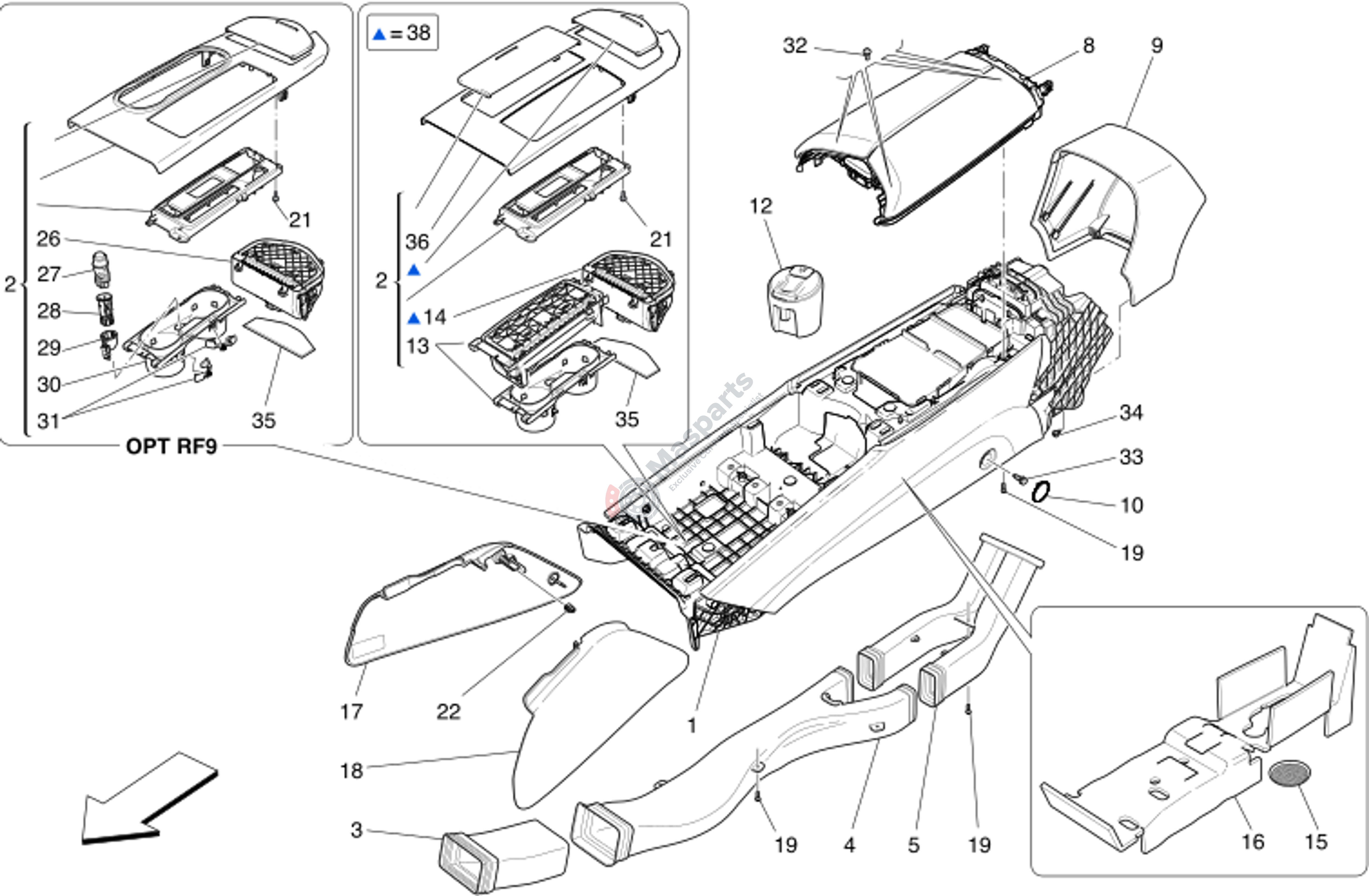

Diagram image not available
The parts list is available below.
Be aware: Two same spot numbers are selected, for example left and right.
| # | S | Part nr | Description | Price | Add |
|---|---|---|---|---|---|
| 3 | M-670001703 | Connecting Duct Between Rear |
$32.63 |
|
|
| 4 | M-670001713 | Rear Air Opening Ducting |
$406.29 |
|
|
| 5 | M-670005297 | Rear Air Duct Junction |
$72.45 |
|
|
| 15 | M-670006071 | Carpet |
$73.90 |
|
|
| 16 | M-673000119 | Tunnel Insulation Basis |
$208.03 |
|
|
| 19 | M-670006127 | Screw |
$5.56 |
|
|
| 21 | M-670006373 | Screw |
$2.05 |
|
|
| 22 | M-673002721 | Clip |
$9.12 |
|
|
| 28 | M-675000158 | Socket |
$12.90 |
|
|
| 32 | M-673002877 | Pin |
$0.96 |
|
|
| 33 | M-675000199 | Screw |
$2.29 |
|
|
| 34 | M-670006128 | Screw |
$16.67 |
|
|
| 38 | M-673016876 | PHONEBOX BLACK PIANO |
$784.74 |
|
