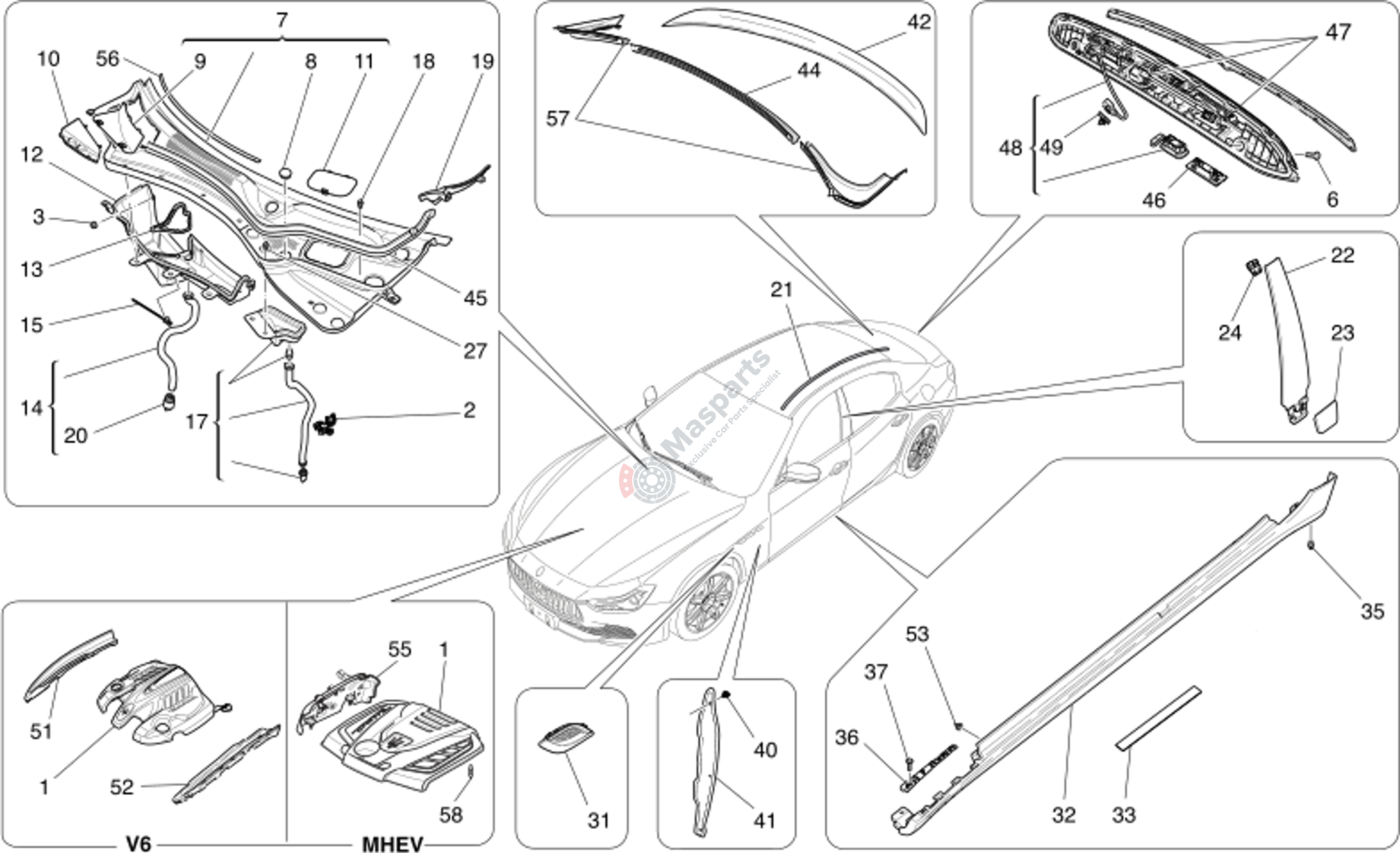

The parts list is available below.
Be aware: Two same spot numbers are selected, for example left and right.
| # | S | Part nr | Description | Price | Add |
|---|---|---|---|---|---|
| 1 | M-670032482 | Aesthetic Guard On Intake Ma |
$332.85 |
|
|
| 2 | M-670005638 | Clip |
$4.54 |
|
|
| 3 | M-675000442 | Nut |
$1.46 |
|
|
| 6 | M-670006846 | Screw |
$2.10 |
|
|
| 8 | M-675000311 | Plug |
$3.27 |
|
|
| 11 | M-670013428 | Brake Fluid Topping-Up Door |
$16.06 |
|
|
| 12 | M-670035454 | Under Windscreen Plate Reinf |
$81.62 |
|
|
| 13 | M-670004127 | Water Shield |
$15.55 |
|
|
| 14 | M-670009206 | Sleeve |
$27.93 |
|
|
| 15 | M-670005402 | Clamp |
$1.71 |
|
|
| 18 | M-675000150 | Fixing Button. |
$0.98 |
|
|
| 20 | M-670006052 | Non Return Valve |
$18.23 |
|
|
| 21 | M-670010746 | Complete Rh Roof Moulding |
$262.55 |
|
|
| 24 | M-670004125 | Bracket |
$28.41 |
|
|
| 27 | M-675000150 | Fixing Button. |
$0.98 |
|
|
| 32 | M-673010782 | Rh Side Skirt |
$2,776.52 |
|
|
| 35 | M-675000058 | Fastening Clip |
$2.82 |
|
|
| 36 | M-670006112 | Bracket |
$7.29 |
|
|
| 37 | M-675000111 | Screw |
$2.61 |
|
|
| 40 | M-675000058 | Fastening Clip |
$2.82 |
|
|
| 41 | M-670001706 | Front R.H. Mudguard Reinforc |
$53.84 |
|
|
| 44 | M-670004382 | Luggage Comp. Centr. Cover-D |
$70.11 |
|
|
| 45 | M-670002093 | Air Intake Compartment Gaske |
$42.45 |
|
|
| 46 | M-673001401 | Light Plate |
$53.49 |
|
|
| 48 | M-673007902 | Microswitch V2 |
$124.06 |
|
|
| 49 | M-673000066 | Fixing Element |
$62.27 |
|
|
| 53 | M-673003779 | Pin |
$3.70 |
|
|
| 57 | M-673013153 | Rh+Lh Cable-Duct Trunk Compa |
$125.34 |
|
|
| 58 | M-675000971 | Pin |
$3.19 |
|
