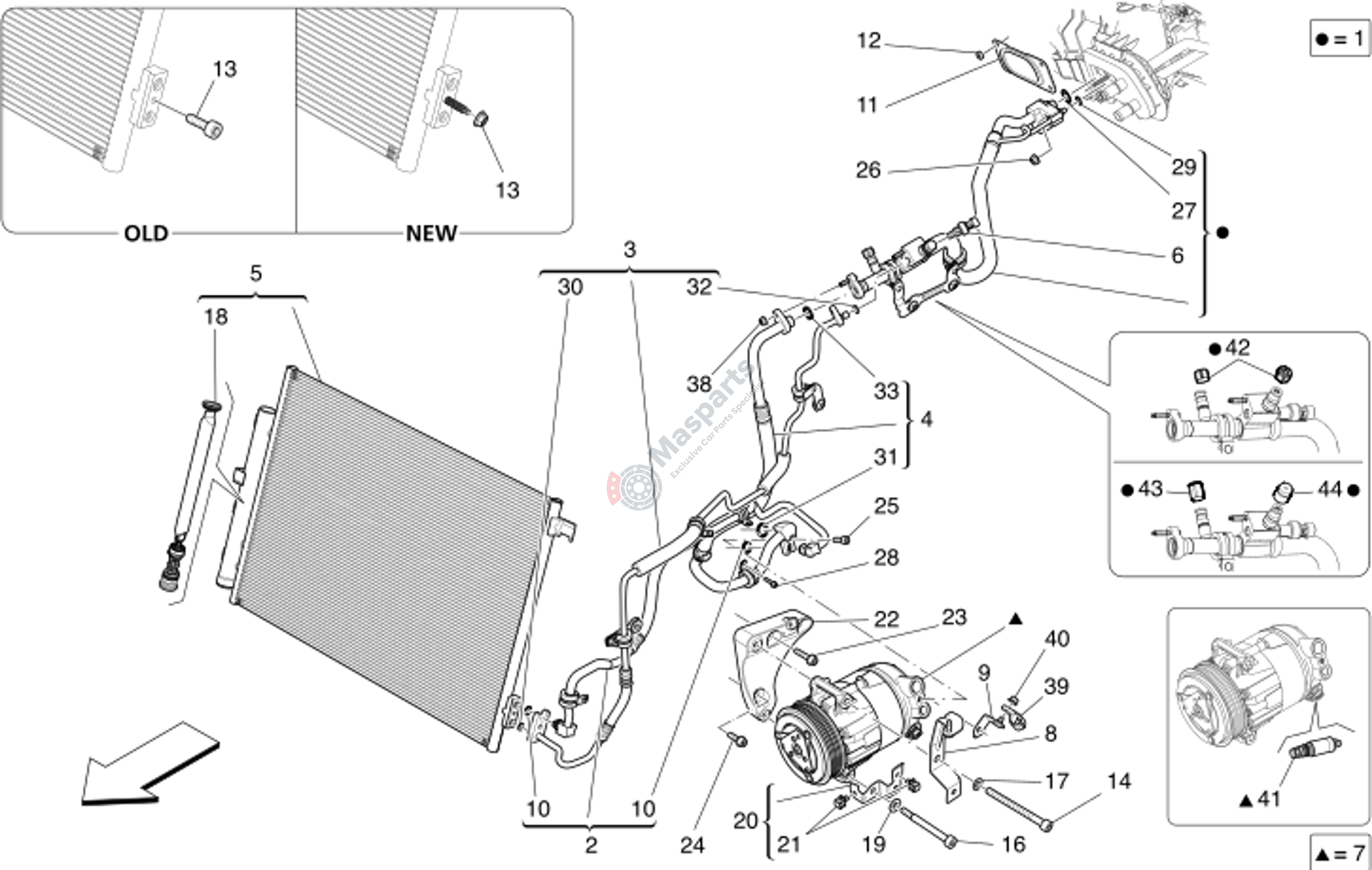

Diagram image not available
The parts list is available below.
Be aware: Two same spot numbers are selected, for example left and right.
| # | S | Part nr | Description | Price | Add |
|---|---|---|---|---|---|
| 1 | M-670007954 | Pipe From Evaporator To Unio |
€85,85 |
|
|
| 2 | M-670001937 | Pipe A.C. - Compressor |
€94,35 |
|
|
| 3 | M-670003216 | Pipe From Condenser To Union |
€117,30 |
|
|
| 4 | M-670009874 | Flex Hose |
€128,35 |
|
|
| 5 | M-670009820 | A.C. Condenser |
€686,80 |
|
|
| 6 | M-670038668 | Pressostat |
€51,60 |
|
|
| 7 | M-954108 | A/C Compressor |
€1.249,50 |
|
|
| 8 | M-290958 | Bracket |
€44,71 |
|
|
| 9 | M-299601 | Bracket |
€10,40 |
|
|
| 10 | M-675000122 | O-Ring 1/2 - 1234Yf |
€6,62 |
|
|
| 11 | M-670005087 | Plug |
€16,01 |
|
|
| 12 | M-675000315 | Nut |
€1,51 |
|
|
| 13 | M-675000456 | Screw |
€3,99 |
|
|
| 14 | M-14307124 | Socket Head Screw M 8X 90 |
€15,46 |
|
|
| 16 | M-246208 | Screw |
€15,55 |
|
|
| 17 | M-11193874 | Washer |
€1,15 |
|
|
| 18 | M-673000010 | Dehydrator Filter |
€203,15 |
|
|
| 19 | M-11186374 | Washer |
€2,20 |
|
|
| 20 | M-320345 | Bracket Cpl. |
€26,77 |
|
|
| 21 | M-283287 | Clip |
€1,46 |
|
|
| 22 | M-311689 | A.C. Sys. Compressor Support |
€77,52 |
|
|
| 23 | M-265097 | Screw |
€4,88 |
|
|
| 24 | M-231629 | Socket Head Screw With Washe |
€2,09 |
|
|
| 25 | M-675000249 | Screw |
€1,20 |
|
|
| 26 | M-675000328 | Nut |
€1,17 |
|
|
| 27 | M-675000123 | O-Ring 3/4 - 1234Yf |
€6,99 |
|
|
| 28 | M-675000314 | Screw |
€1,17 |
|
|
| 29 | M-675000121 | O-Ring 3/8 - 1234Yf |
€5,24 |
|
|
| 30 | M-675000121 | O-Ring 3/8 - 1234Yf |
€5,24 |
|
|
| 31 | M-675000123 | O-Ring 3/4 - 1234Yf |
€6,99 |
|
|
| 32 | M-675000119 | O-Ring 68X187 |
€1,67 |
|
|
| 33 | M-675000306 | O-Ring 136X243 |
€1,63 |
|
|
| 38 | M-675000315 | Nut |
€1,51 |
|
|
| 39 | M-244219 | Clip |
€5,61 |
|
|
| 40 | M-14058421 | Nut |
€1,78 |
|
|
| 41 | M-673015590 | Ecv Valve + Seeger Ring |
€66,56 |
|
|
| 42 | M-673009426 | Gas Cap |
€24,38 |
|
