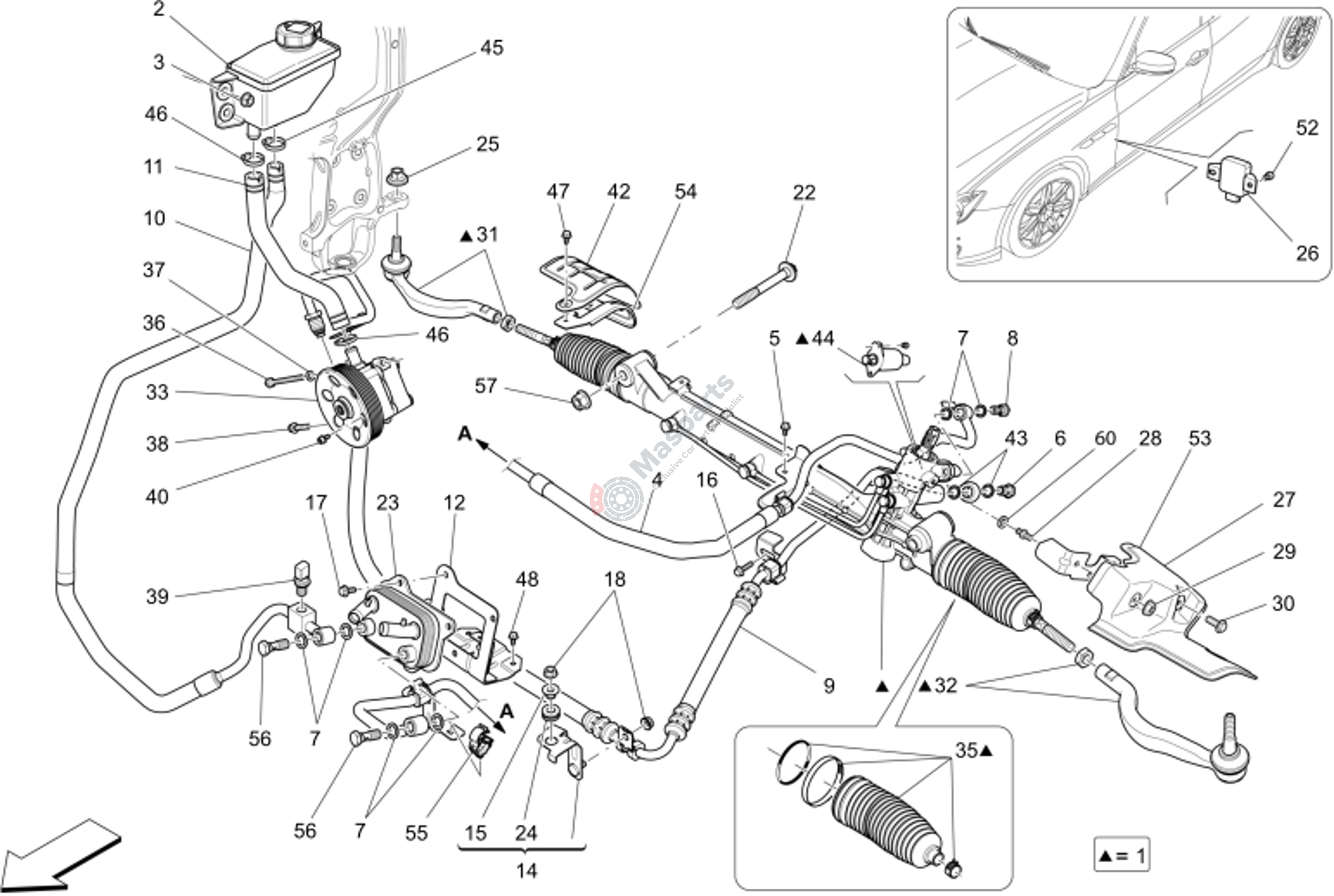

The parts list is available below.
Be aware: Two same spot numbers are selected, for example left and right.
| # | S | Part nr | Description | Price | Add |
|---|---|---|---|---|---|
| 1 | M-670102931 | Lhd Cpl Rack Steering Box |
$3,064.50 |
|
|
| 2 | M-670004538 | Oil Tank |
$50.93 |
|
|
| 4 | M-670006578 | Pipe From Steering Box To Ex |
$167.38 |
|
|
| 5 | M-675000278 | Screw |
$1.56 |
|
|
| 6 | M-675000203 | Union |
$16.40 |
|
|
| 7 | M-675000250 | Washer 12X18X1 |
$1.41 |
|
|
| 8 | M-675000021 | Union |
$6.05 |
|
|
| 9 | M-670001922 | Pipe From Steering Box To Pu |
$191.71 |
|
|
| 10 | M-670006577 | Pipe From Tank To Heat Excha |
$110.94 |
|
|
| 11 | M-670001924 | Pipe From Tank To Pump |
$18.06 |
|
|
| 12 | M-670006487 | Oil Exchanger Bracket |
$31.41 |
|
|
| 14 | M-670001926 | Power Steering Pipe Bracket |
$14.04 |
|
|
| 15 | M-675000129 | Spacer |
$29.67 |
|
|
| 16 | M-675000278 | Screw |
$1.56 |
|
|
| 17 | M-10872624 | Screw |
$15.98 |
|
|
| 22 | M-670001945 | Screw |
$9.01 |
|
|
| 23 | M-670031618 | Power Steering Fluid/Water H |
$149.87 |
|
|
| 24 | M-675000054 | Small Black |
$14.15 |
|
|
| 25 | M-675000127 | Nut |
$2.21 |
|
|
| 26 | M-670009202 | Power Steering Control Modul |
$181.17 |
|
|
| 27 | M-670001946 | Steering Box Guard |
$426.59 |
|
|
| 28 | M-670005277 | Screw |
$7.72 |
|
|
| 30 | M-675000088 | Screw |
$2.63 |
|
|
| 31 | M-673000006 | Cpl. Rh External Tie-Rod |
$124.57 |
|
|
| 32 | M-673000005 | Lh Tie Rod |
$124.57 |
|
|
| 33 | M-268447 | Hydraulic Steering Pump |
$1,718.61 |
|
|
| 35 | M-673000004 | Steering Box Pipes Replaceme |
$39.55 |
|
|
| 36 | M-286697 | Stud |
$55.36 |
|
|
| 37 | M-11193874 | Washer |
$1.35 |
|
|
| 38 | M-265097 | Screw |
$5.69 |
|
|
| 39 | M-670005736 | Temperature Sensor |
$18.97 |
|
|
| 40 | M-231616 | Screw |
$2.08 |
|
|
| 42 | M-670006235 | Lhd Rack Steering Box Heat S |
$33.77 |
|
|
| 43 | M-675000152 | Gasket |
$1.66 |
|
|
| 44 | M-673001466 | Solenoid |
$264.38 |
|
|
| 45 | M-675000266 | Hose Fastening Collar |
$2.30 |
|
|
| 46 | M-675000267 | Hose Fastening Collar |
$2.80 |
|
|
| 47 | M-675000088 | Screw |
$2.63 |
|
|
| 48 | M-675000278 | Screw |
$1.56 |
|
|
| 52 | M-675000454 | Screw |
$1.53 |
|
|
| 53 | M-670005854 | Bracket |
$11.15 |
|
|
| 54 | M-670005772 | Lhd Cpl Bracket |
$74.22 |
|
|
| 55 | M-670009151 | Steering Pipe Clip |
$1.52 |
|
|
| 56 | M-670031619 | Nut |
$12.65 |
|
|
| 57 | M-675000148 | Nut |
$2.51 |
|
