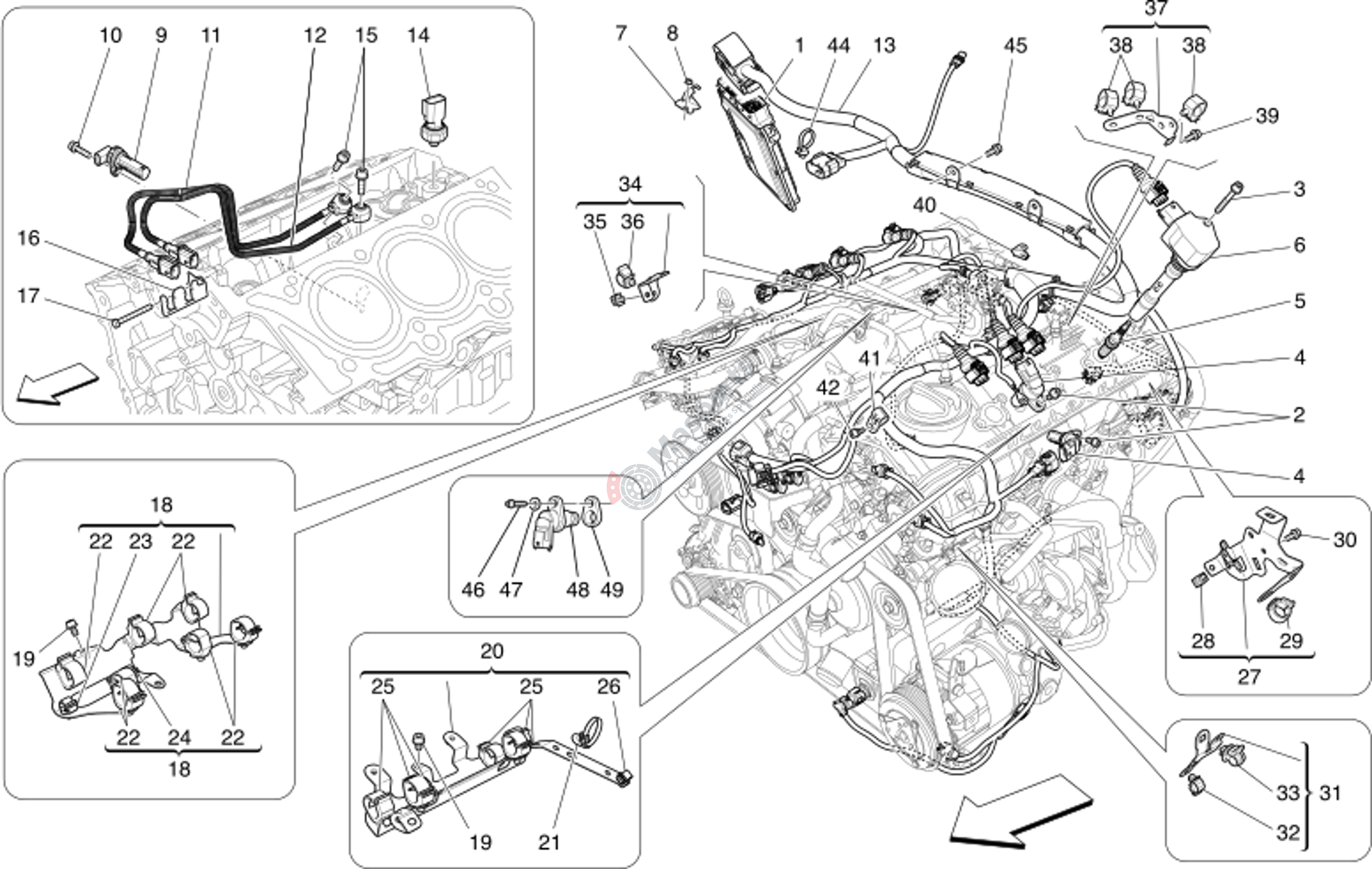

Diagram image not available
The parts list is available below.
Be aware: Two same spot numbers are selected, for example left and right.
| # | S | Part nr | Description | Price | Add |
|---|---|---|---|---|---|
| 1 | M-670031346 | Euro6 Engine Ecu Hardware Bu |
€1.061,24 |
|
|
| 2 | M-231616 | Screw |
€1,78 |
|
|
| 3 | M-231624 | Socket Head Screw With Washe |
€2,40 |
|
|
| 4 | M-224573 | Timing Sensor |
€43,77 |
|
|
| 5 | M-310235 | Spark Plug |
€18,83 |
|
|
| 6 | M-288233 | Ignition Coil |
€96,32 |
|
|
| 7 | M-670009042 | Control Unit Fixing Bracket |
€8,00 |
|
|
| 9 | M-961644 | Angolar Speed Sensor |
€54,95 |
|
|
| 10 | M-231620 | Socket Head Screw With Washe |
€1,39 |
|
|
| 11 | M-772995 | Cpl Rh Detonation Sensor 1-2 |
€92,02 |
|
|
| 12 | M-792379 | Cpl Lh Detonation Sensor 4-5 |
€98,90 |
|
|
| 13 | M-324912 | Engine Injection Wiring Harn |
€1.416,42 |
|
|
| 14 | M-328660 | Oil Pressure Sensor |
€58,65 |
|
|
| 15 | M-231629 | Socket Head Screw With Washe |
€2,09 |
|
|
| 16 | M-290057 | Cover |
€36,43 |
|
|
| 17 | M-10903724 | Screw |
€2,50 |
|
|
| 18 | M-302135 | Rh Cylinder Head Hoses Cpl B |
€37,08 |
|
|
| 19 | M-231616 | Screw |
€1,78 |
|
|
| 20 | M-317131 | Lh Cyl.Head Hoses&Wirings Br |
€47,20 |
|
|
| 21 | M-10901087 | Clamp |
€3,13 |
|
|
| 22 | M-259508 | Clip |
€1,46 |
|
|
| 23 | M-292112 | Pipe Retaining Clip D.8 |
€1,46 |
|
|
| 24 | M-226603 | Pipe Retaining Clip D.8 |
€2,09 |
|
|
| 25 | M-226603 | Pipe Retaining Clip D.8 |
€2,09 |
|
|
| 26 | M-259508 | Clip |
€1,46 |
|
|
| 27 | M-323966 | Bracket |
€34,04 |
|
|
| 28 | M-283287 | Clip |
€1,46 |
|
|
| 29 | M-191273 | Spring |
€1,46 |
|
|
| 30 | M-231616 | Screw |
€1,78 |
|
|
| 31 | M-290960 | Lh Turbo Hose Cpl Bracket |
€8,74 |
|
|
| 32 | M-226603 | Pipe Retaining Clip D.8 |
€2,09 |
|
|
| 33 | M-288849 | Cables Retaining Clip |
€36,43 |
|
|
| 34 | M-673007937 | Bracket And Screw |
€16,56 |
|
|
| 35 | M-283287 | Clip |
€1,46 |
|
|
| 36 | M-247440 | Spring |
€1,46 |
|
|
| 37 | M-318883 | Lh Cyl. Head Hoses&Wirings B |
€16,47 |
|
|
| 38 | M-259508 | Clip |
€1,46 |
|
|
| 39 | M-231616 | Screw |
€1,78 |
|
|
| 41 | M-291068 | Bracket |
€2,20 |
|
|
| 42 | M-233600 | Screw |
€1,99 |
|
|
| 44 | M-670008301 | Clip |
€0,95 |
|
|
| 45 | M-675000556 | Screw |
€1,78 |
|
