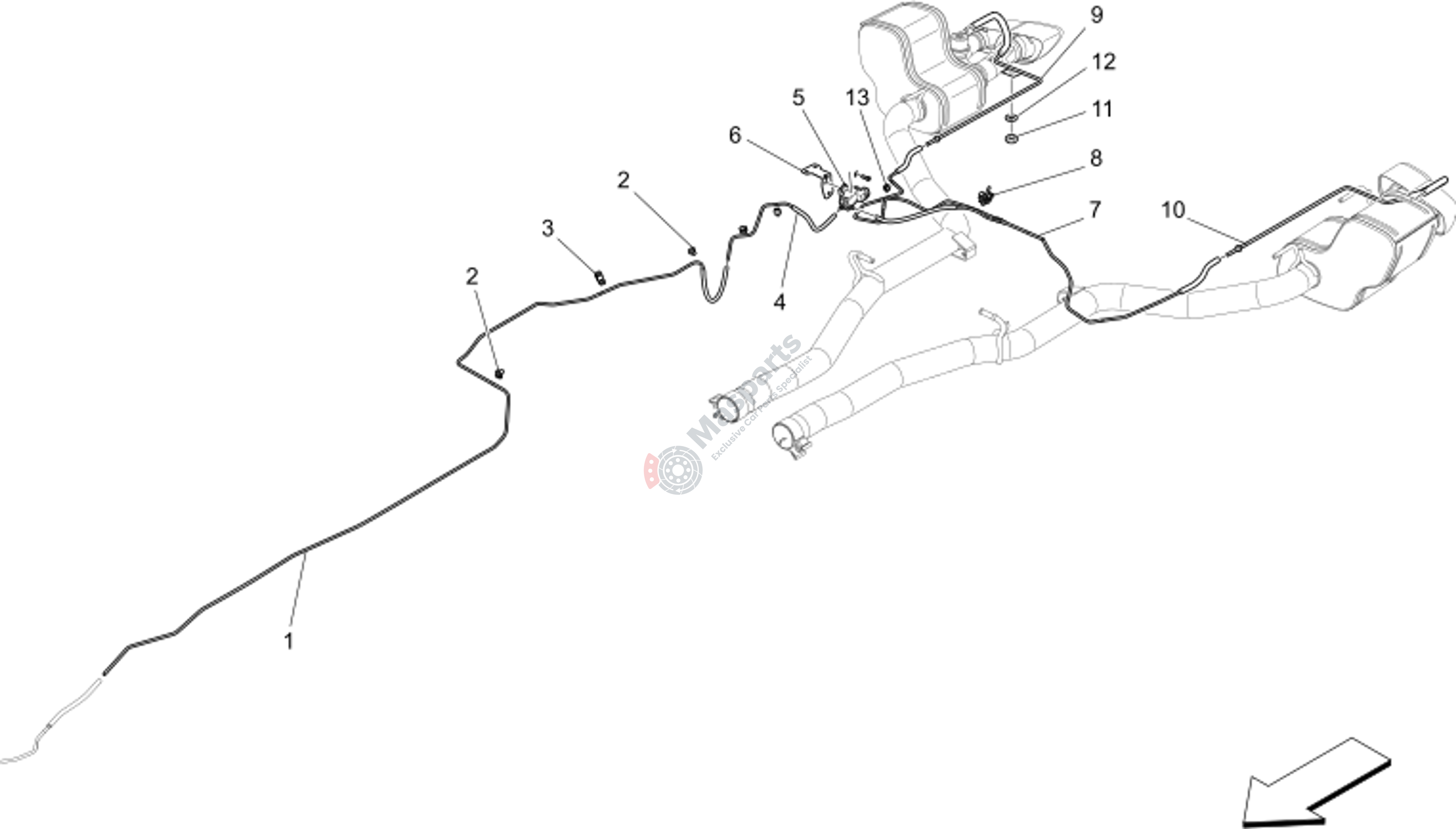

The parts list is available below.
Be aware: Two same spot numbers are selected, for example left and right.
| # | S | Part nr | Description | Price | Add |
|---|---|---|---|---|---|
| 1 | M-670005264 | Vacuum Pipe - Part 2 |
$28.34 |
|
|
| 2 | M-675000141 | Clip |
$0.96 |
|
|
| 3 | M-670005210 | Clip |
$2.39 |
|
|
| 4 | M-670100668 | Vacuum Underbody Pipethird F |
$8.43 |
|
|
| 5 | M-670002843 | On/Off Solenoid Valve |
$42.87 |
|
|
| 6 | M-670038865 | Valve Bracket |
$24.44 |
|
|
| 7 | M-670175156 | Underbody Vacuum Pipe |
$46.73 |
|
|
| 8 | M-675000072 | Clip |
$2.28 |
|
|
| 9 | M-670007191 | Rh Hose |
$46.54 |
|
|
| 10 | M-670007192 | Lh Hose |
$46.54 |
|
|
| 11 | M-675000447 | Nut |
$3.53 |
|
|
| 12 | M-675000441 | Washer |
$1.17 |
|
|
| 13 | M-675000356 | Clip |
$1.66 |
|
